ตู้ลำโพง YAMAHA DHR15 Active Loudspeaker 15″
ลำโพง YAMAHA DHR15 เป็นลำโพงแบบมีกำลังขยายในตัว 2 ทาง Active Loudspeaker ขนาดดอกลำโพง 15 นิ้ว Woofer, เสียงแหลมขนาด 1.75 นิ้ว Compression Driver, 90 x 60° with Rotatable Horn,มีกำลังขับ 465 วัตต์ RMS, 1000 วัตต์ Peak, Plywood Construction
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿46,000.00 ฿40,840.00
Description
Yamaha DHR15 2-Way Active Loudspeaker 15″ 1000W
ลำโพง YAMAHA DHR15 เป็นลำโพงแบบมีกำลังขยายในตัว 2 ทาง Active Loudspeaker ขนาดดอกลำโพง 15 นิ้ว Woofer, เสียงแหลมขนาด 1.75 นิ้ว Compression Driver, 90 x 60° with Rotatable Horn,มีกำลังขับ 465 วัตต์ RMS, 1000 วัตต์ Peak, Plywood Construction
The DHR15 is a 2-way bi-amp powered loudspeaker equipped with a 15-inch woofer and a 1.4-inch HF driver, perfect for use as a main speaker.
Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15 offers best-in-class sound quality and durability.
Features:
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 15-inch LF driver that provides excellent low frequency response
- Dual-angle pole sockets offer both 0° or a -7° down tilt
- Rigging points for use with eye bolts
- Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Specifications
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 465 W RMS 1000 W Peak |
| Amplifier Power Rating | HF: 1 x 200 W LF: 1 x 800 W |
| Amplifier Class | Class-D |

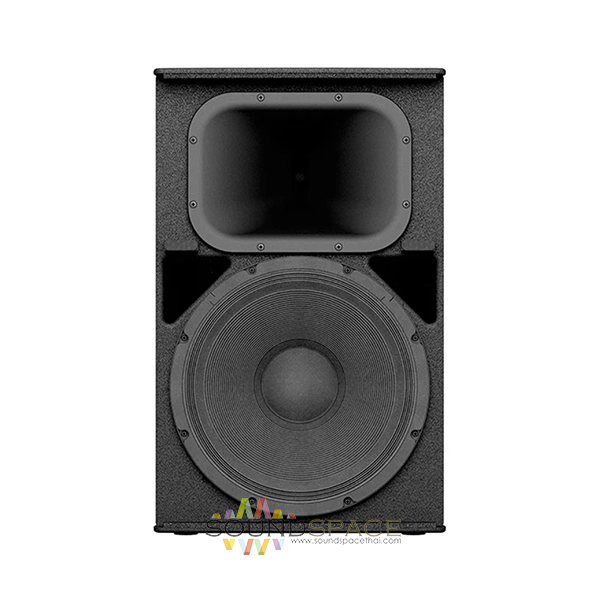

| HF Driver | 1 x 1.75″ / 44.45 mm Horn-Loaded Compression Driver with 1″ / 25 mm Throat |
| MF Driver | None |
| LF Driver | 1 x 15″ / 381 mm Woofer |
| LF Voice Coil | 2.5″ / 63.5 mm |
| Magnet | Ferrite |
| Frequency Range | 44 Hz to 20 kHz -10 dB |
| Maximum SPL | 131 dB |
| Coverage Angle | 90° H x 60° V |
| Protections | DC Fault, Output Limiter, Overcurrent, Overvoltage, Power Supply, Thermal |

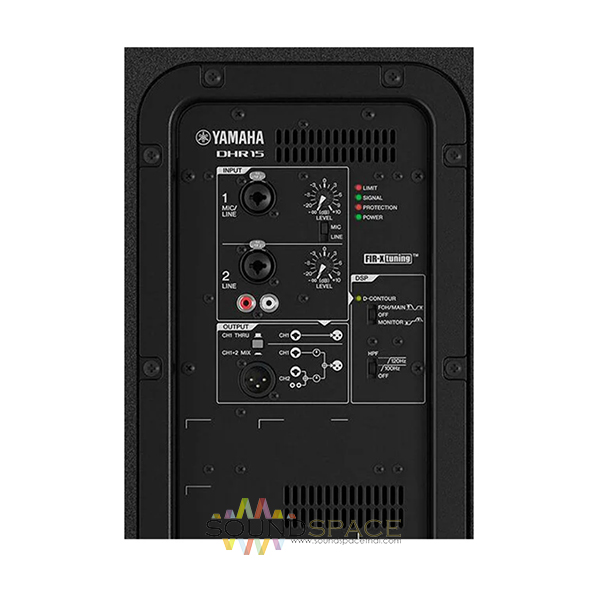

| Audio I/O | 1 x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Mic/Line Input 1 x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Line Input 1 x Stereo RCA TS Female Unbalanced Line Input 1 x XLR 3-Pin Male Balanced Line Thru/Output |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | None |
| Crossover | 1.8 kHz |
| EQ | None |
| Parametric EQ | None |
| Semi-Parametric EQ | None |
| Alignment Delay | None |
| Phase Adjustment | None |
| Digital Signal Processing | Venue Settings |
| Max Sample Rate/Resolution | 48 kHz / 24-Bit |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC Input |
| Power Consumption | 18 W (Idle) 74 W (1/8 Power) |
| Mounting | 2 x M10 Fly Point (Top) 1 x M10 Fly Point (Rear) 1 x 1.4″ / 35 mm Pole Socket (Dual Angle, Bottom) |
| Handles | 1 x Each Side |
| Construction Material | Metal Grille, Plywood, Polyurethane |
| Dimensions | 27.2 x 17 x 15.9″ / 690.9 x 431.8 x 403.9 mm |
| Weight | 52.9 lb / 24 kg |
