ออดิโออินเตอร์เฟส YAMAHA URX22 B USB-C Audio Interface (Black)

ออดิโออินเตอร์เฟส YAMAHA URX22 B (Black) สีดำ, 4-in/2-out USB-C Audio Interface with 32-bit/192kHz support, Touch LCD panel GUI with physical controller, DSP-powered mixing/effects for a seamless workflow, For Content Creation and Streaming

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…

฿15,500.00

สอบถามและสั่งซื้อสินค้า

Description

Yamaha URX22 B 4×2 USB-C Audio Interface (Black)

ออดิโออินเตอร์เฟส YAMAHA URX22 B (Black) สีดำ, 4-in/2-out USB-C Audio Interface with 32-bit/192kHz support, Touch LCD panel GUI with physical controller, DSP-powered mixing/effects for a seamless workflow, For Content Creation and Streaming

Yamaha URX22, a 4×2 audio interface featuring intuitive controls with an LCD touchscreen GUI and customizable knobs for a speedy workflow. With onboard DSP-powered mixing and effects, and up to 32-bit / 192 kHz audio support, the URX22 is a versatile creative toolkit.

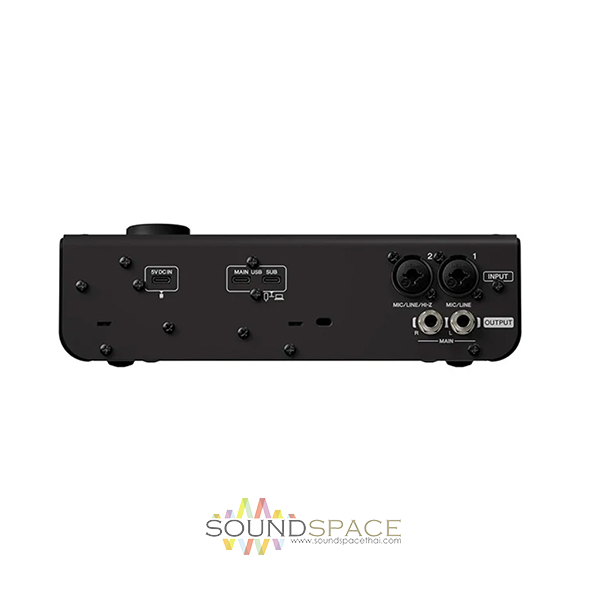

Two USB-C ports are available—Main and Sub—with Main offering up to 18-track recording and playback and Sub providing two-track audio. I/O includes two XLR-1/4″ combo mic / line / Hi-Z inputs with up to 78 dB of gain, stereo 1/4″ TRS line and main outputs, dual 1/4″ headphone outputs, and several 3.5mm jacks for headset, mic/line, and aux connections.

The URX22 includes a USB-C cable and a suite of Steinberg audio production software to get you started.

Features:

  • Audio interface with 2 inputs optimized for recording, streaming, and podcasting
  • URX mic preamps deliver detailed, low‑distortion performance
  • Up to 78dB of clean gain for demanding microphones
  • High‑end AD/DA converters for accurate, true‑to‑life audio
  • 32-bit/192kHz resolution preserves detail and dynamic range
  • Dual Main/Sub USB‑C ports support flexible multi‑system routing
  • Touchscreen interface enables real‑time control and adjustments
  • Built‑in DSP mixing tools and FX
  • Dual headphone outputs plus dedicated headset and AUX inputs
  • Creative tools include Gate, Compressor, EQ, Reverb, Amp Sims, and Voice Changer
  • Smart Gain, Clip Safe, and Total FX keep mixes clean and balanced
  • Seamless integration with Elgato, OBS Studio, and Stream Deck controllers
  • Includes Cubase AI, WaveLab Cast, Basic FX Suite, and Steinberg Plus software bundle

Specifications

General
Display
4.3″ Color LCD Touchscreen
Channels of I/O
4 Inputs / 2 Outputs
Built-In DSP
Yes
Maximum Sampling Rate
192 kHz / 32-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
Knob
Signal Processing
Pad
No
Gain/Trim Range
78 dB
Connectivity
Analog Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1x 1/8″ / 3.5 mm TRS Mic/Line Input
1x 1/8″ / 3.5 mm TRS Aux Input
1x 1/8″ / 3.5 mm TRS Headset Input
2x 1/4″ TRS Line Output
2x 1/4″ TRS Headphone Output
2x 1/4″ TRS Main Output
Phantom Power
48 V
Digital Audio I/O
No
Host Connection
2x USB-C
Host Connection Protocol
Not Specified by Manufacturer
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No
Performance
Frequency Response
20 Hz to 20 kHz
Headphone Output Power
100 mW per Channel into 40 Ohms
Dynamic Range
Combo XLR-1/4″ Mic/Line/Hi-Z Inputs:
115 dB
1/4″ Line Outputs:
125 dB
THD
Combo XLR-1/4″ Line/Mic/Hi-Z Inputs:
0.0008%
1/4″ Line Outputs:
0.00036%
EIN
-128 dBA
Digital Audio
Sample Rates
Up to 192 kHz
Bit Depths
32-Bit
Sync Sources
No
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Windows / macOS
Required Hardware
USB Cable
Power
Power Requirements
USB Bus Power
Power Consumption
15 W (Typical)
0.1 W (Idle)
Physical
Operating Conditions
32 to 104°F / 0 to 40°C
Storage Conditions
-4 to 140°F / -20 to 60°C
Dimensions
9.6 x 7.2 x 3.1″ / 24.4 x 18.3 x 7.9 cm
Weight
4.2 lb / 1.9 kg
