ออดิโออินเตอร์เฟส USB 2.0 สำหรับ iPad, Mac, PC, iTRACK Solo 2 Input/2 Output, Focusrite Microphone Preamplifier, Up to 24-bit/96 kHz Audio Resolution, Ableton Live Lite Software
Focusrite iTrack Solo (Lightning) USB 2.0 Audio Interface for Compatible iPad, Mac, PC
ออดิโออินเตอร์เฟส USB 2.0 สำหรับ iPad, Mac, PC, iTRACK Solo 2 Input/2 Output, Focusrite Microphone Preamplifier, Up to 24-bit/96 kHz Audio Resolution, Ableton Live Lite Software

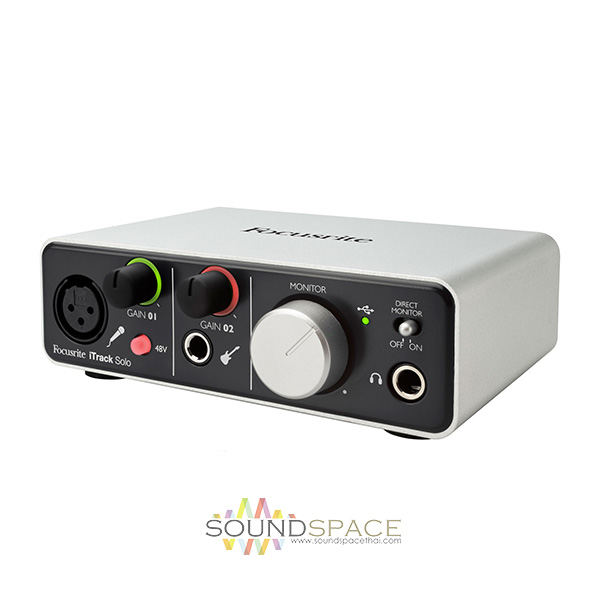

The iTrack Solo (Lightning) from Focusrite is a 2 input/2 output USB audio interface that provides an easy way to record instruments and vocals to a Lightning compatible iPad, or a Mac or Windows based computer. Featuring a Focusrite microphone preamp, the interface is housed in a compact, rugged but lightweight aluminum case, and is an excellent companion for any singer-songwriter who wants to record their creations or practice.
The front panel has an input for a microphone, along with an input for an instrument such as an electric guitar, bass guitar, or the output of an electro-acoustic guitar. Signal halos around the gain knobs provide feedback for setting optimal audio levels for recording. The headphone output includes a Direct Monitor Switch for eliminating any latency during recording and a pair of RCA line outputs allow for connectivity to other monitoring solutions.
The unit supports a digital resolution of up to 24-bit/96 kHz and includes Ableton Live Lite music making software and the Focusrite Scarlett Plug-In Suite, the latter providing several audio processing tools including gate and reverb, compression, and EQ.
Features:
Award-winning microphone input featuring a Focusrite microphone preamp
Connect a microphone and instrument directly to the interface for the simplest setup
Record to an iPad, Mac or PC using preferred software and apps, including GarageBand
Direct monitor switch on the front panel for zero-latency recording
Dual halo lights around the input level knobs provide optimum level feedback
RCA line outputs on rear panel
Front panel headphone output
Large speaker/headphone level dial and “Direct Monitor” function
Switchable phantom power for condenser microphones
Compact and tough aluminum case provides protection against on-the-road abuse
Specifications
Focusrite iTRACK Solo USB Audio Interface
System
Type
USB 2.0 audio interface
Conversion
Up to 24-bit/96 kHz
Mic Preamps
1 x Focusrite microphone preamplifier

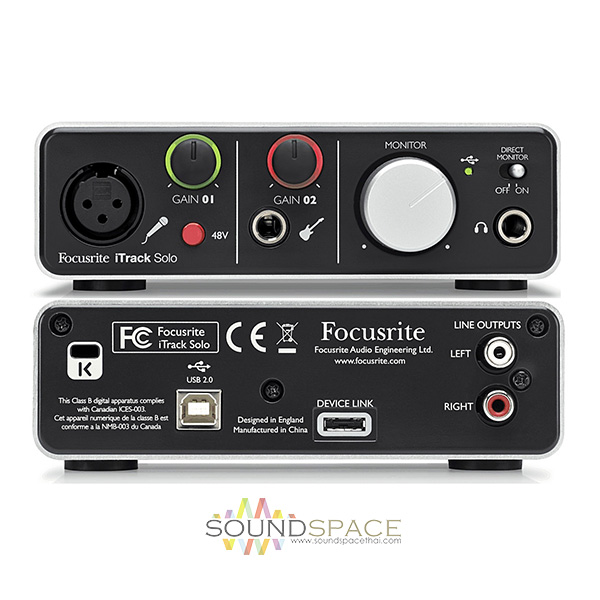

Front Panel
1 x XLR microphone input
1 x 1/4″ TS instrument input (unbalanced)
2 x Gain knobs with gain halo signal indicators
1 x 1/4″ TRS headphone out
48V phantom power switch
Direct monitor switch
Monitor level dial (controls headphone and line level outputs)
USB connection LED indicator
Rear Panel
2 x RCA phono line out, unbalanced
DEVICE LINK port (to connect iTrack Solo to iPad)
USB 2.0 port
Kensington Lock slot
Analog Performance
Mic Input Performance
Frequency Response: 20 Hz to 20 kHz, +/-0.2 dB
THD+N: <0.002 (minimum gain, -1 dBFS input with 22 Hz/22 kHz band-pass filter)
Equivalent Input Noise (EIN): < -120 dB measured at minimum gain with, -1 dBFS (20 Hz/22 kHz band-pass filter)
Gain Range: +10 to +55 dB
Max Input Level: -3 dBu
Instrument Input Performance
Frequency Response: 20 Hz to 20 kHz, +/-0.2 dB
THD+N: 0.003% (measured with -1 dBFS input and 22 Hz/22 kHz band-pass filter)
Noise: -87 dBu (22 Hz/22 kHz band-pass filter)
Gain Range: -10 to +55 dB
Maximum Input Level: -3 dBu
A-D Dynamic Range: 105 dB A-weighted (all inputs)
Converter Chipset A-D Dynamic Range: 114 dB
D-A Dynamic Range: 105 dB A-weighted (all outputs)
Converter Chipset D-A Dynamic Range: 114 dB
Sample Rates
Mac and PC: 44.1, 48, 88.2 and 96 kHz
iPad: 44.1 and 48 kHz
General
Crosstalk
Input to Input: <90 dB
Output to Output: <90 dB
Input to Output: <85 dB
Input Metering
Ring LED (Lit Green): Signal present (-24 dBFS)
Ring LED (Lit Red): Signal overload (0 dBFS), peak held for approximately 1 sec
Download
Ableton Live Lite software
Focusrite Scarlett Plug-In Suite
Power Requirements
For iPad, USB power from AC adapter
When using computer, bus power from the computer
System Requirements
Mac: Mac OS X 10.7.3 (Lion) and 10.8 (Mountain Lion)
PC: Windows 7 (32-bit/64-bit) and Windows 8
Apple iPad: iPad Air, iPad with Retina Display, iPad mini with Retina Display, iPad mini
iOS 6 and above
The iTrack Solo runs in class-compliant mode on a Mac. No driver is required. Simply plug and play.
If you have previously installed the Focusrite USB 2.0 driver and are experiencing glitchy audio on Mavericks you can put your unit into class compliant mode by following the instructions HERE.
