เพาเวอร์มิกเซอร์ YAMAHA EMX7 Power Mixer

เครื่องผสมสัญญาณเสียงแบบมีกำลังขยาย เพาเวอร์มิกเซอร์ Yamaha EMX7 12-input, Dual 710W Powered Mixer with 8 Mic Preamps, 3-band Input EQs, 1-knob Comps, 9-band Graphic EQ, Speaker Processor, Phantom Power, Level Meters, and Onboard DSP

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

฿41,000.00 ฿32,800.00

สอบถามและสั่งซื้อสินค้า

Description

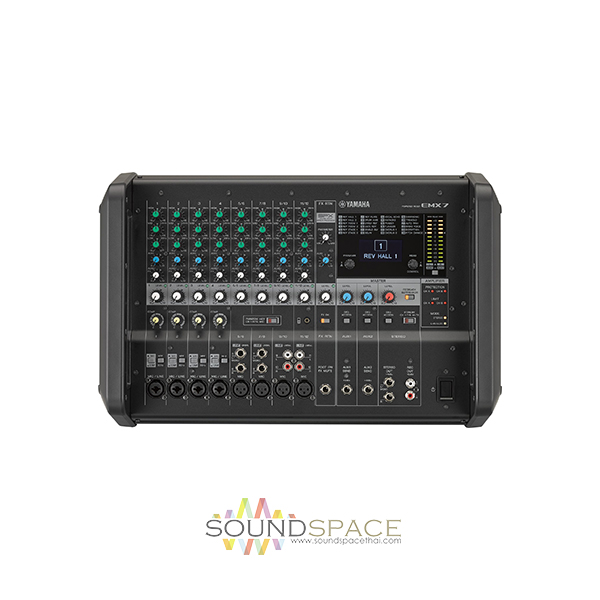

Yamaha EMX7 12-Input Powered Mixer 710W

เครื่องผสมสัญญาณเสียงแบบมีกำลังขยาย เพาเวอร์มิกเซอร์ Yamaha EMX7 12-input, Dual 710W Powered Mixer with 8 Mic Preamps, 3-band Input EQs, 1-knob Comps, 9-band Graphic EQ, Speaker Processor, Phantom Power, Level Meters, and Onboard DSP

The Yamaha EMX7 is a 12-input powered mixer with an integrated 1420W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4″ combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4″ inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 1/8″ stereo mini-jack for connecting portable music players.

The EMX7 includes a single knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers an integrated speaker processor with bass boost, designed to bring out the best quality from Yamaha or 3rd party passive speakers.

The EMX7 also includes a Flex9GEQ graphic equalizer for Aux 1, Aux 2, and Stereo Output. The Flex9GEQ allows you to select up to nine bands out of a total of 31 and adjust the gain. Optional accessories available include a foot switch for effects bypass and a rack-mount kit. The EMX7 ships with a standard IEC power cord.

Features:

  • 12-input, dual 710-watt powered mixer with efficient Class D amplifier
  • 8 phantom-powered preamps make connecting your microphones simple
  • Enough I/O for microphones, musical instruments (1 hi-Z input), and a portable MP3 player
  • Each input features a 3-band EQ for shaping your sound
  • Inputs 1-4 are equipped with 1-knob compressors for evening out dynamics and punching up your tracks
  • 9-band graphic equalizer tailors your overall sound
  • 24 SPX effects add dimension to your performance or presentation
  • Speaker processor and presets select an appropriate setting to match your speakers
  • Feedback suppressor function stops feedback in its tracks
  • Universal power supply for worry-free operation worldwide
  • Rugged enough to withstand stage abuse
  • Rackmountable using a rackmount kit (sold separately)

Specifications

Analog Input Characteristics
Input Connectors Channels 1-4: 4x Combo XLR-1/4″ / 6.35 mm
Channels 5/6: 1x XLR, 2x 1/4″ / 6.35 mm
Channels 7/8: 1x XLR, 2x 1/4″ / 6.35 mm
Channels 9/10: 1x XLR, 2x RCA
Channels 11/12: 1x XLR, 2x RCA, 1x 1/8″ / 3.5 mm stereo mini-jack
Load Impedance Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics
Channels 1-4 (1/4″ Mic/Line): 8 kOhms, 600 Ohms nominal with lines
Channel 4 (1/4″, Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
Channels 5-12 (XLR): 2 kOhms actual, 50 – 600 Ohms mics nominal
Channels 5-12 (1/4″, RCA, 1/8″): 10 kOhms actual, 600 Ohms lines nominal
Input Level Sensitivity
Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV)
Channel 1-4 (XLR, Line): -30 dBu (24.5 mV)
Channel 1-4 (1/4″, Mic): -50 dBu (2.45 mV)
Channel 1-4 (1/4″, Line): -20 dBu (77.5 mV)
Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV)
Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV)
Channels 5-12 (XLR): -60 dBu (0.775 mV)
Channels 5-8 (1/4″): -20 dBu (77.5 mV)
Channels 9-12 (RCA, 1/8″): -8 dBu (316 mV)
Nominal
Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV)
Channel 1-4 (XLR, Line): -13 dBu (173 mV)
Channel 1-4 (1/4″, Mic): -33 dBu (17.3 mV)
Channel 1-4 (1/4″, Line): -3 dBu (548 mV)
Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV)
Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV)
Channels 5-12 (XLR): -43 dBu (5.48 mV)
Channels 5-12 (1/4″, RCA, 1/8″): -3 dBu (548 mV)
Maximum Before Clip
Channel 1-4 (XLR, Mic): -15 dBu (138 mV)
Channel 1-4 (XLR, Line): +15 dBu (4.36 V)
Channel 1-4 (1/4″, Mic): -5 dBu (436 mV)
Channel 1-4 (1/4″, Line): +25 dBu (13.8 V)
Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV)
Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V)
Channels 5-12 (XLR): -15 dBu (138 mV)
Channels 5-12 (1/4″, RCA, 1/8″): +25 dBu (13.8 V)
Analog Output Characteristic
Output Connectors Stereo Out (L/R): 2x 1/4″ / 6.35 mm balanced
Aux Sends (1/2): 2x 1/4″ / 6.35 mm balanced
Rec Out (L/R): 2x RCA unbalanced
Impedance Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines
Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines
Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines
Output Level Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping
Loudspeaker Outputs
Connectors Speakers A/B: 2x Neutrik speakON NL4, 1/4″ / 6.35 mm
Impedance Actual Source Impedance: < 0.1 Ohms
For Use with Nominal: 4 Ohm speakers, 8 Ohm speakers
Output Level 4 Ohm Speakers: 600 W (1 Hz THD+N < 1%), 710 W (1 kHz THD+N < 10% [CEA2006])
8 Ohm Speakers: 400 W (1 Hz THD+N < 1%), 500 W (1 kHz THD+N < 10% [CEA2006])
General Specifications
Output Power 1 kHz THD+N < 10% (CEA2006): 710 W + 710 W (4 Ohms), 500 W + 500 W (8 Ohms)
1 kHz THD+N < 1%: 600 W + 600 W (4 Ohms), 400 W + 400 W (8 Ohms)
Frequency Response Frequency Response Refer to the nominal output level @ 1 kHz
Input to Speakers: +1/-3 dB (40 Hz to 20 kHz)
Input to Stereo Out, Aux 1/2 Send: +0.5/-1.0 dB (20 Hz to 20 kHz)
THD + N Input to Speakers (Mic/Line): 0.1% @ 10 W (40 Hz to 20 kHz)
Input to Speakers (Line – Channels 1-4) 0.04% @ 65 W (1 kHz)
Input to Stereo Out, Aux 1/2 Send (Mic/Line): 0.02% @ +14 dBu (20 Hz to 20 kHz)
Input to Stereo Out, Aux 1/2 Send (Line – Channels 1-4): 0.007% @ +20 dBu (1 kHz)
Hum & Noise EIN: -117 dBuResidual Output Noise
Input to Speakers: -70 dBu (40 Hz to 20 kHz, Stereo Master Level: min)
Input to Stereo Out, Aux 1/2 Sends: -82 dBu (20 Hz to 20 kHz, Stereo Master Level: min)
Crosstalk (1 kHz): -85 dB
Input Channels Mono (Mic/Line): 8
Stereo: (Line): 4
Total: 12
Output Channels Speakers: A/B
Aux 1 Send
Aux 2 Send
Stereo Out: L/R
Rec Out: L/R
Bus Stereo: 1
Aux: 2 (including FX)
Pad Channels 1-4: 30 dB
Hi-Z Input Channel 4: Supported
HPF High Pass Filter (Channels 1-3): 80 Hz, -12 dB/octave
EQ Section High: 10 kHz +15/-15 dB
Mid: 2.5 kHz +15/-15 dB
Low: 100 Hz +15/-15 dB
Compressor Single knob compressor
Audio Level Meter 2x 12 Points LED Meter: (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, Peak)
Built-in Effects SPX Algorithm: 24 programs
Output Channel Function Graphic EQ
Speaker Processor
Feedback Suppressor
Phantom Power +48 V
Footswitch Input Effect mute on/off
Protection Load Protection: DC-fault
Amplifier Protection: Overheat protection, overcurrent protection, integral power protection
Power Supply Protection: Overheat protection, overcurrent protection
Power Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption: 45 W (Idle) / 250 W (1/8 power)
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (W × H × D) 18.3 x 12.1 x 12.8″ / 464.8 x 307.3 x 325.1 mm
Weight 20.9 lb / 9.5 kg
