ตู้ลำโพงมอนิเตอร์ YAMAHA CHR12M Passive Floor Monitor 12″
ลำโพงมอนิเตอร์บนเวทีสำหรับงานแสดงสด YAMAHA CHR12M เป็นลำโพงแบบ 2 ทาง Passive Floor Monitor, ขนาดดอกลำโพง 10 นิ้ว Woofer, เสียงแหลมขนาด 1.4 นิ้ว Compression Driver, ทนกำลังขับ 250 วัตต์ RMS, 500 วัตต์ Program 1000 วัตต์ Peak
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿29,000.00 ฿25,520.00
Description

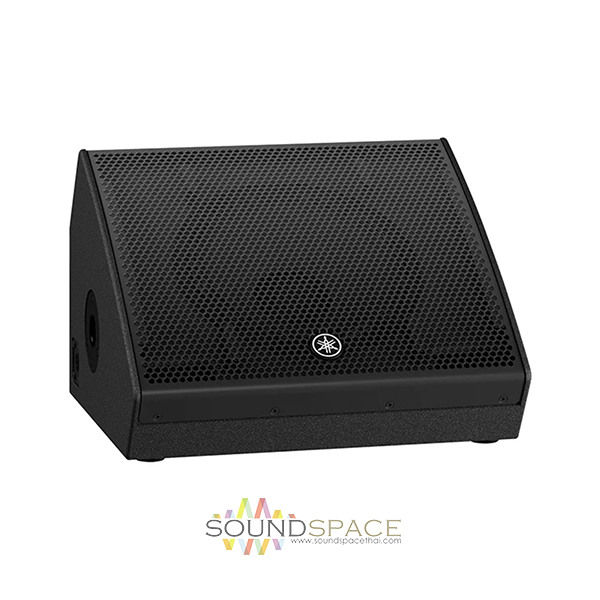

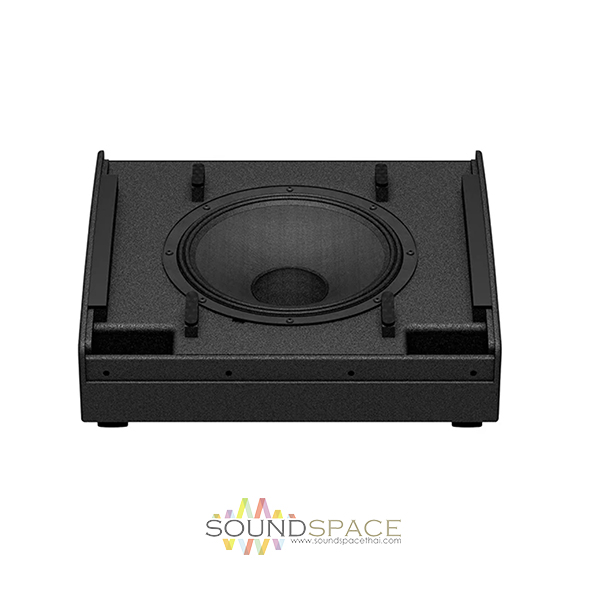

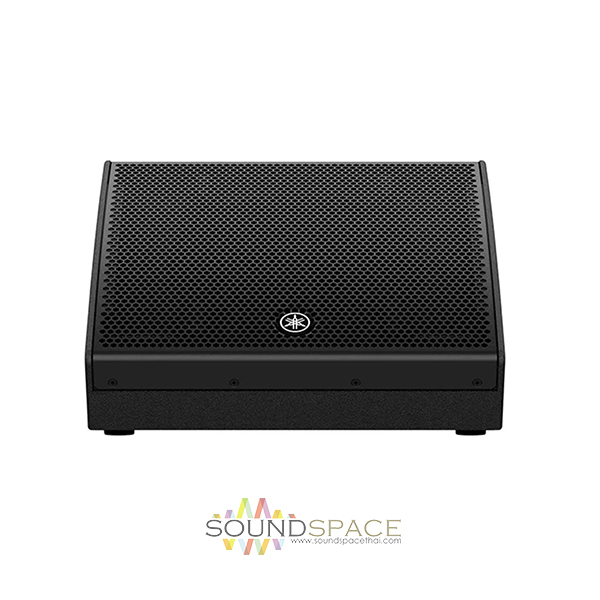

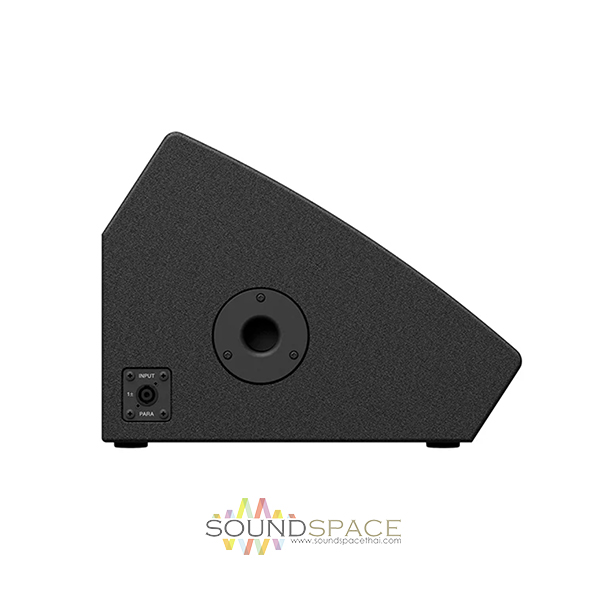

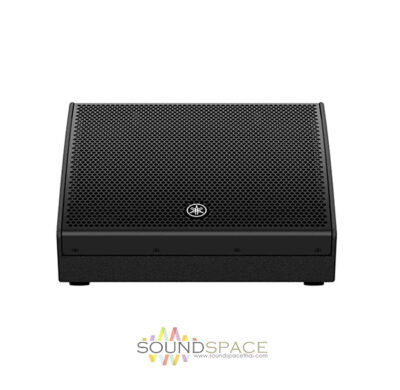

YAMAHA CHR12M 2-Way Coaxial 12″ Passive Floor Monitor
ลำโพงมอนิเตอร์บนเวทีสำหรับงานแสดงสด YAMAHA CHR12M เป็นลำโพงแบบ 2 ทาง Passive Floor Monitor, ขนาดดอกลำโพง 10 นิ้ว Woofer, เสียงแหลมขนาด 1.4 นิ้ว Compression Driver, ทนกำลังขับ 250 วัตต์ RMS, 500 วัตต์ Program 1000 วัตต์ Peak
The CHR12M is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor.
Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR12M offers best-in-class sound quality and durability.
Features:
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
- A pole socket for use on a stand
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
Specifications
| Configuration | Passive 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor |
| Total Power Capacity | 250 W RMS 500 W Program 1000 W Peak |
| Constant Voltage / Transformer Taps | None |
| System Impedance | 8 Ohms |
| HF Driver | 1 x 1.75″ / 44.45 mm Horn-Loaded Compression Driver with 1″ / 25 mm Throat |
| MF Driver | None |
| LF Driver | 1 x 12″ / 304.8 mm Woofer |
| LF Voice Coil | 2.5″ / 63.5 mm |
| Magnet | Ferrite |
| Frequency Range | 61 Hz to 20 kHz -10 dB |
| Maximum SPL | 123 dB |
| Coverage Angle | 90° H x 90° V |
| Speaker Sensitivity | 93 dB SPL |
| Audio I/O | 2 x speakON NL4 Speaker Input/Thru (Lockable) |
| Crossover | 1.5 kHz |
| Phase Adjustment | None |
| Mounting | 1 x 1.4″ / 35 mm Pole Socket (Bottom, Side) |
| Monitor Angle | 57° |
| Handles | 1 x Side |
| Construction Material | Plywood, Polyurethane |
| Dimensions | 19.7 x 17.9 x 13.5″ / 500.4 x 454.7 x 342.9 mm |
| Weight | 34.4 lb / 15.6 kg |
