ลำโพง NEXO PS8 Loudspeaker 8″

ลำโพง NEXO ขนาด 8นิ้ว รองรับกำลังขับของเครื่องขยายเสียงได้ 200-500 วัตต์ 8โอหม์ High-power system (125dB Peak SPL @ 1m)

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม

฿53,700.00

สอบถามและสั่งซื้อสินค้า

Description

NEXO PS8 Loudspeaker

ลำโพง NEXO ขนาด 8นิ้ว รองรับกำลังขับของเครื่องขยายเสียงได้ 200-500 วัตต์ 8โอหม์ High-power system (125dB Peak SPL @ 1m)

The PS8 features advanced NEXO designed low magnetic emission Neodymium drivers, making the PS8 extremely light and compact while usable next to magnetically-sensitive professional video or computer equipment. The dispersion, architecture and weight balance are designed to provide uncompromised PA and stage monitor performance from a single speaker, and background and foreground music playback applications are equally well-served.

Like the new PS10-R2 and PS15-R2, this flexibility is realized by a proprietary constant directivity asymmetrical dispersion horn, easily configurable (by users) in four positions by 90° rotations.

Coupled with the horn’s unique progressive horizontal (50° to 100°) and vertical (55°) dispersion, the most suitable pattern can be selected for vertical or horizontal PA usage or wedge monitoring. The PS8’s 2-way passive 8Ω design employs a single amplifier channel to deliver bi-amped performance, reducing system cost, size and complexity, and a new grille design increases durability while fully accommodating use as a wedge.

Features:

  • High-power system (125dB Peak SPL @ 1m) with new 8in LF and 1in HF low magnetic emission Neodymium drivers for light weight (7.5kg, 16.5lbs) and negligible magnetic leakage.
  • Rotatable, asymmetrical horn and unique cabinet architecture ensure versatility; user adaptable for both PA and stage monitoring applications.
  • Two-way passive 8Ω design uses a single amplifier channel for simpler installation and lower cost.
  • Sophisticated control electronics ensure reliable, linear operation. Supported with a full range of mounting and flying accessories.

System Applications

  • Installed PA for clubs, A/V, theatre, broadcast, Houses of Worship, theme parks, etc.
  • High-quality, low-profile stage monitoring for clubs, A/V, theatre, broadcast, etc.
  • Near-field, down-fill and under-balcony systems in support of larger systems.
  • Foreground and background music source for retail establishments seeking audio with impact.
  • Anywhere powerful, high-quality performance is required near to magnetically-sensitive

Specification

  • Components
  • LF 1 x 8″ (20 cm) Shielded Neodymium 8Ω driver.
  • HF 1 x 1″ Shielded Neodymium throat driver + Low Distortion, Constant Directivity Asymmetrical Dispersion Horn.
  • Height x Width x Depth 406mm x 250mm x 219 mm (16″ x 9 7/8″ x 5 5/8″).
  • Weight 7.5 kg (16.5 lbs).
  • Connectors 2 x NL4MP SPEAKON 4 pole.
  • Construction Baltic Birch Ply finished with structured black coating.
  • Fittings
    • Handles – Front finish: Moulded Dark Grey Metal Grill
    • Flying Points & Fixed Installation Threaded inserts are fitted as standard to all cabinet surfaces for connection of mounting accessories.
  • Stand fittings Built-in Stand Fitting, (35mm / 1 3/8″).

System Specifications PS8 with PS8 TDcontroller

  • Frequency Response [a] 69 Hz – 19 kHz ±3dB.
  • Usable Range @-6dB [a] 62 Hz – 20 kHz.
  • Sensitivity 1W @ 1m [b] 96 dB SPL Nominal – 94 dB SPL Wideband.
  • Nominal Peak SPL@1m [b] 122 to 125dB Peak.
  • HF Dispersion [c] 50° to 100° Hor. x 55° Vertical. Rotatable Horn, 4 positions.
  • Directivity
    • Q : 10 Nominal. DI : 10 dB Nominal.
    • ( f > 1.8 kHz ) Crossover Frequencies 2.5 kHz Passive.
  • Nominal Impedance 8Ω Recommended Amplifiers 200 to 500 W / 8Ω.

Data Sheets

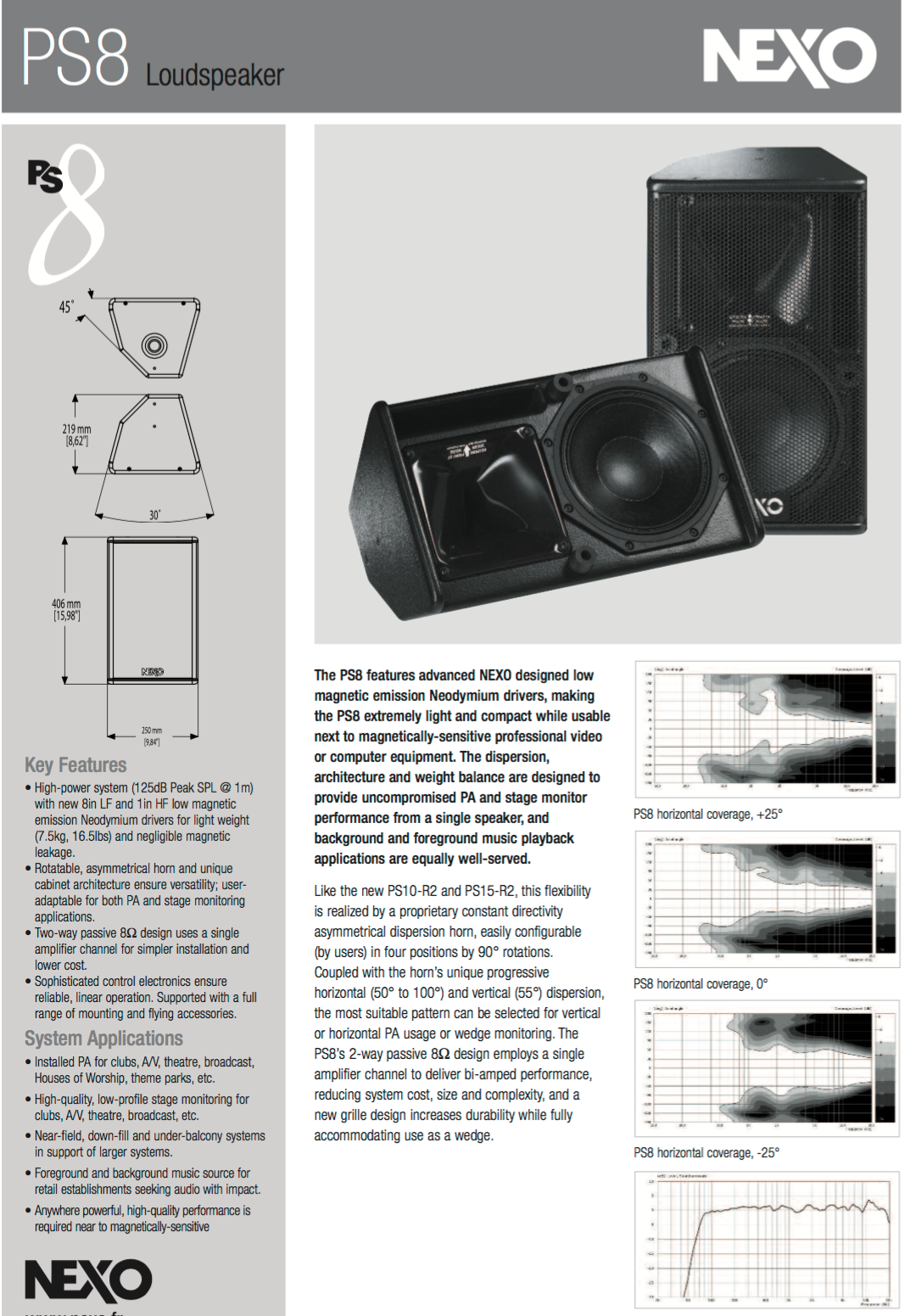

NEXO PS8 LoudspeakerScreen Shot 2016-01-20 at 6.18.52 PM

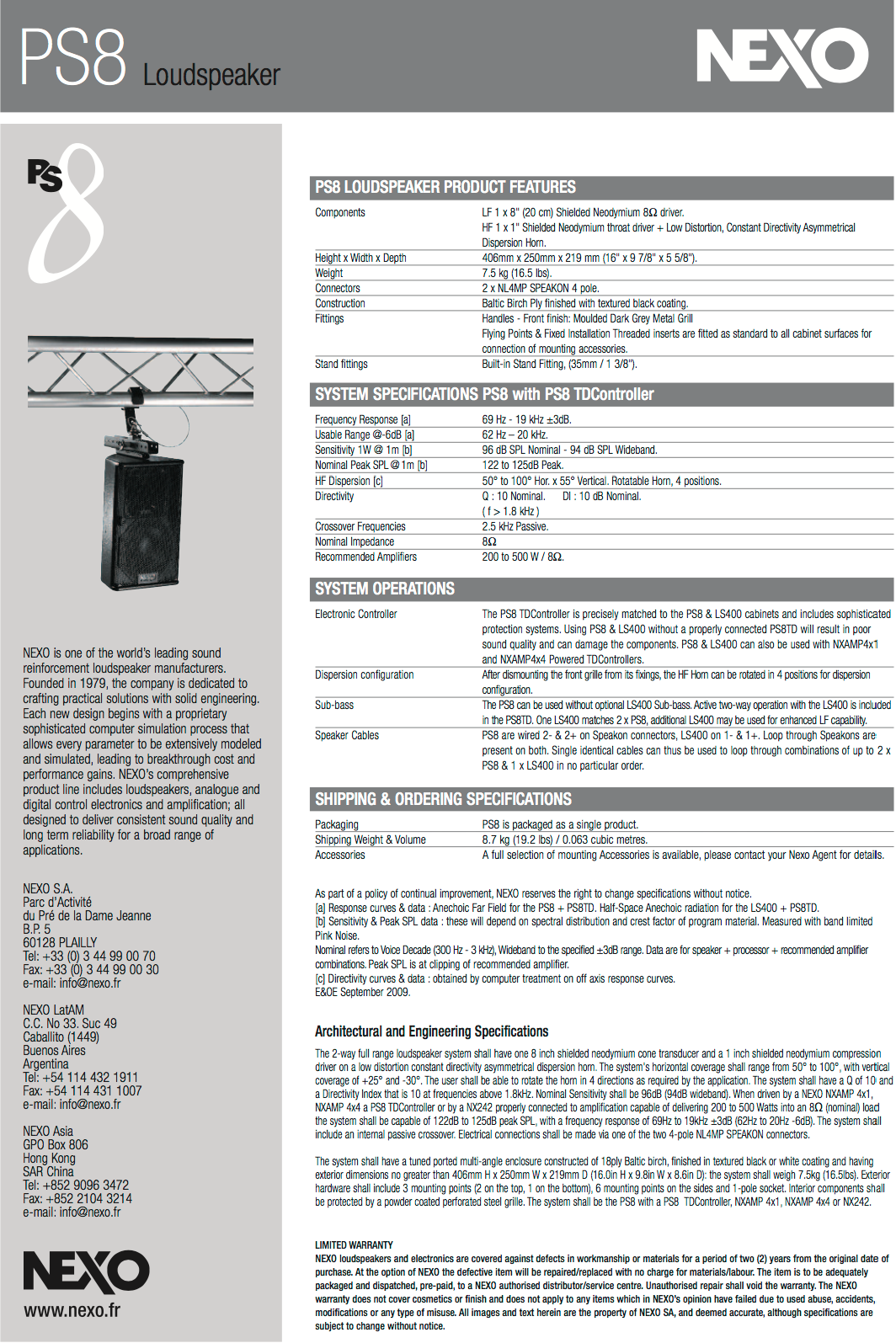

Screen Shot 2016-01-20 at 6.20.11 PM
