ออดิโออินเตอร์เฟส TASCAM US4x4TP USB Audio Interface

TASCAM US4X4TP Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −127dBu EIN, Four Ultra-HDDA mic preamplifiers, Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power

ราคาไม่รวมภาษีมูลค่าเพิ่ม

฿14,900.00 ฿14,700.00

สอบถามและสั่งซื้อสินค้า

Description

TASCAM US4X4TP USB Audio Interface

ออดิโออินเตอร์เฟส TASCAM US4X4TP Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −127dBu EIN, Four Ultra-HDDA mic preamplifiers, Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power

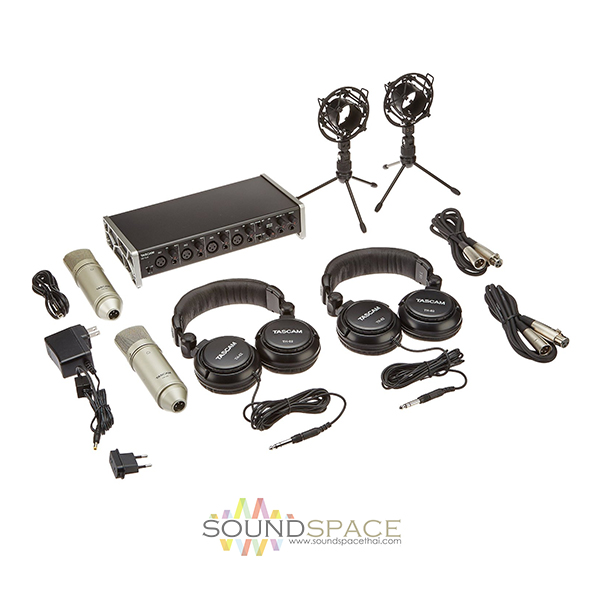

The Tascam US-4x4TP TRACKPACK 4×4 includes a US-4×4 interface, mics, headphones, and DAW software – everything musicians need to make great-sounding studio recordings of acoustic instruments.

The US-4×4 is a 4-in/4-out USB interface with four Ultra-HDDA mic preamps. These preamps provide up to 57dB of gain and the best noise and distortion specs in their class. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source. In addition to the four balanced line outputs, two headphone outputs are provided for monitoring while recording talent.

A pair of great-sounding TM-80 condenser microphones is also included. These cardioid mics include shockmounts, tabletop mic stands, and XLR cables to help you start recording right away. The mic pair is perfect for acoustic sources like acoustic guitar, drums, or recording a singer while performing with an instrument.

To assist you while recording, two sets of TH-02 headphones are included. Use the US-4×4’s two headphone outs to monitor a performer while they play along with the track. The full-range, closed-back studio headphones are perfect for recording without bleed as well as perfecting your mix.

Also included with the interface are your choices of two DAW applications. Both Steinberg Cubase LE and Cakewalk SONAR LE are included, as well as gigabytes of loops, instruments, and effect plug-ins to start a production studio.

For anyone looking to jumpstart their studio environment, the TASCAM TRACKPACK 4×4 is like a studio in a box.

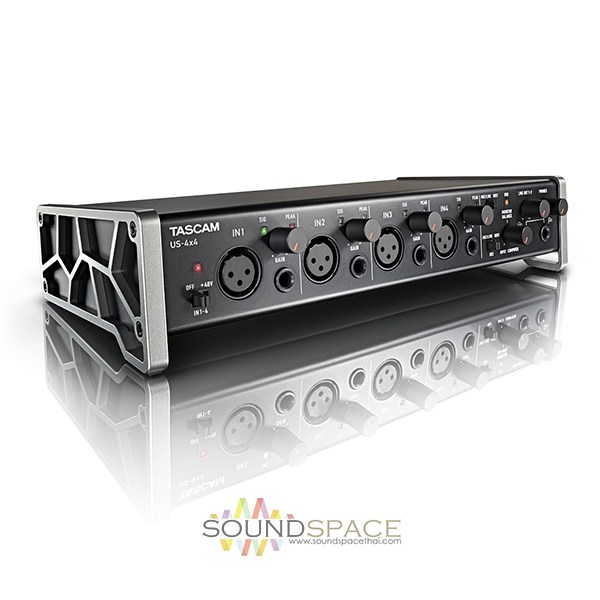

US-4×4 USB Audio/MIDI Interface:

TASCAM’s US-4×4 combines great audio quality and ergonomic design for a powerful 4-in/4-out USB 2 audio interface.

Four of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.

The US-4×4 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers. The interface includes two DAW applications to choose from – both Cakewalk SONAR X3 LE and Abelton Live Lite 9.

With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-4×4 is the ultimate 4-channel interface for home, project, and mobile studios.

TH-02 Stereo Headphones:

The ear cups can be rotated 90 degrees and folded-up completely into the headband for easy storage. Once folded away, they can be easily carried around while on the go for recording outside the studio.

These comfortable, closed-back headphones are perfect for monitoring

The build of this closed headphone model is perfect for monitoring performances while recording. Encorporating comfortable, sound-proof ear pads, there’s no need to worry about the mic picking up sound bleed from the headphones. With a wide frequency response of 18Hz to 22kHz, you can also use these headphones for monitoring during mixdown for clear, uncolored sound.

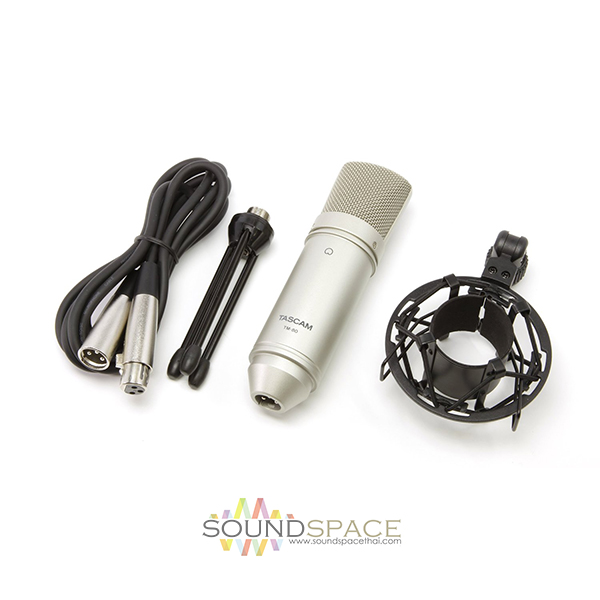

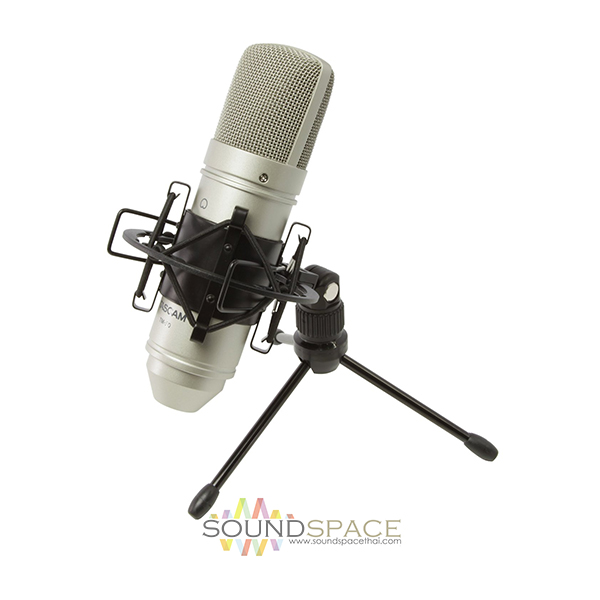

TM-80 Condenser Mic:

Unidirectional condenser mic with an 18mm aluminum diaphragm

A unidirectional condenser mic is perfect for vocal and instrument recording because of its cardioid pickup pattern and rejection of sound from the rear of the mic. The TM-80 has an 18mm aluminum diaphragm and a wide frequency response. With a maximum sound pressure rating of 136dB SPL, you can safely use the TM-80 with guitar amps, drums and other percussion instruments.

Package includes shock-absorbing suspension, table-top mic stand and mic cable

Included are essential recording accessories – a shock-absorbing suspension (Screw diameter:5/8 inch) used for professional recording, as well as a XLR mic cable and table-top mic stand – allowing you to set up at your desktop and record straight away.

Features:

  • US-4×4 USB Audio/MIDI Interface:
    • Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −127dBu EIN
    • Four Ultra-HDDA mic preamplifiers
    • Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power
    • NE5532 op-amps used at the audio input and output stages
    • Up to 96kHz/24-bit recording
    • Support for Windows and Macintosh
    • USB 2.0 computer connection
    • Connect with iPads and other iOS devices
    • +48V phantom power for all inputs
    • High-impedance inputs available
    • Input level specifications boast a range of 57 dB for using dynamic mics
    • Direct monitoring function for zero-latency monitoring
    • Tough all-metal casing for durability
    • Angled design provides excellent usability on a desktop
    • Balanced analog four TRS output jacks suitable for connection to powered monitors
    • Two headphone outputs that has 40mW/ch output power
    • Separate controls for line and headphones output volumes
    • MIDI input and output
    • Output sources can be selected in the setting panel
    • Input sound monitoring can be set to stereo or mono
    • Input muting function eliminates noise from unused inputs
    • USB class compliant 2.0 support
    • License cards included for SONAR X3 LE/Ableton Live Lite9
    • Confirmed operation with major DAW software(SONAR, ProTools, Cubase, Live, Studio One, Garage Band)
    • RoHS certified
    • Dedicated AC adapter is included
  • TH-02 Stereo Monitor Headphones:
    • Foldable design for compact storage and transport
    • Tightly-stitched, padded headband and ear pads for stylish comfort
    • Closed-back dynamic design featuring rich bass response and crisp highs
    • Snap-on 1/8″ (3.5mm) to 1/4″ (6.3mm) adapter
    • Driver diameter: 50mm
    • Impedance: 32 Ohms
    • Sensitivity: 98 dB +/- 3dB
    • Frequency response: 18 Hz to 22 kHz
    • Max input power: 600 mW
    • Cable length: 9.8ft (3m) when fully extended
    • Dimension (W×H×D): 180mm×240mm×90mm / 7.1 inch×9.5 inch×3.5 inch
    • Weight: 298g / 0.7 lb
  • TM-80 Condenser Microphone:
    • Condenser microphone utilizes precisely designed electronic circuitry.
    • Microphone capsule assembly features an 18mm pure aluminum diaphragm
    • Cardioid polar pattern
    • Frequency response: 20Hz to 20kHz
    • Sensitivity : -38dB +/-2dB (0dB=1V/Pa at 1kHz)
    • Phantom power requirement: 9 – 48V DC
    • Output impedance : 200ohm +/-30% (at 1kHz)
    • Load impedance : >1k ohm
    • Max SPL : 136dB (at 1kHz=1% THD)
    • S/N ratio : 77dB
    • Housing : Die cast zinc
    • Dimensions (W×H×D) : 48mm×165mm×48mm / 1.9 inch×6.5 inch×1.9 inch
    • Includes : shock mount, mini desk stand, mic cable (1.8m XLRM – XLRF)

Specifications

AUDIO INTERFACE USB TASCAM US4x4TP

  • US-4X4:
    • Sampling frequency: 44.1k/48k/88.2k/96kHz
    • Quantization bit rate: 16/24bit
    • Analog audio inputs:
      • MIC IN: IN 1-4
        • Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
        • Input impedance: 2.2k ohms
        • Nominal input level:
          • GAIN:MAX -65dBu (0.0004Vrms)
          • GAIN:MIN  -8dBu (0.3090Vrms)
        • Maximum input level (GAIN:MIN ): +8dBu (1.9467Vrms)
        • Gain: 57dB
      • INST IN:
        • IN: IN 1-2
        • Connector: 6.3mm(1/4″)TS-jack(T:HOT, S:GND), UNBALANCED (When set to “INST” at MIC/LINE.INST switch)
        • Input impedance: 1M ohms
        • Nominal input level:
          • GAIN:MAX -63dBV(0.0007Vrms)
          • GAIN:MIN -6dBV(0.5015Vrms)
        • Maximum input level (GAIN:MIN ): +10dBV(3.162Vrms)
        • Gain: 57dB
      • -LINE IN: IN 1-4
        • Connector: 6.3mm(1/4″)TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to “MIC/LINE” at MIC/LINE.INST switch)
        • Input impedance: 10k ohms
        • Nominal input level:
          • GAIN:MAX -53dBu(0.0017Vrms)
          • GAIN:MIN +4dBu(1.228Vrms)
        • Maximum input level (GAIN:MIN): +20dBu(7.75Vrms)
        • Gain: 57dB
      • Analog audio outputs:
        • LINE OUT:
          • Connector: 6.3mm(1/4″)TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
          • Output impedance: 110ohms
          • Nominal output level: +4dBu (1.273Vrms)
          • Maximum output level: +20dBu (7.75Vrms)
        • PHONES:
          • Connector: 6.3mm(1/4″) stereo phone jack
          • Maximum output level: 45mW+45mW or more (THD+N 0.1% or less, 32ohms loaded)
        • MIDI IN / OUT:
          • Connector: Din 5-pin
          • Format: Standard MIDI format
        • USB:
          • Connector: USB B type 4-pin
          • Format: USB2.0 HIGH SPEED
        • Power: Dedicated AC adapter (GPE248-120200-Z, included)
        • Power consumption: 5W
        • Dimensions: 11.62″ W x 2.56″ H x 6.3″ D / (296mm W ×65mm H × 160mm D)
        • Weight: 3.53lb (1.6kg)
        • Operating temperature: 5 to 35˚C
        • Bundled software:
          • Cakewalk SONAR X3 LE
          • Ableton Live 9 Lite
        • Accessories: AC adapter(GPE248-120200-Z), USB cable, SONAR X3 LE license card, Live 9 Lite license card, User’s manual, warranty card
        • Audio performance:
          • Frequency response:
            • LINE OUT(BALANCED):
              • 1k/48k Hz: 20Hz to 20kHz, +0dB/-0.1dB
              • 2k/96k Hz: 20Hz to 40kHz, +0dB/-0.2dB
            • PHONES:
              • 1k/48k Hz: 20Hz to 20kHz, +0dB/-0.5dB
              • 2k/96k Hz: 20Hz to 40kHz, +0dB/-2dB
            • THD: 0.003% or less
            • S/N ratio: 101dB or more
            • Crosstalk: 95dB or more
            • EIN: -127dBu or less
          • Computer system requirements:
            • Windows:
              • OS: Windows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit)
              • Compatible computers: Windows-compatible computer with a USB 2.0 port
              • CPU type/speed: Dual core/2 GHz or faster (x86)
              • Memory: 2GB or more
              • DRIVER: ASIO2.0, WDM(MME)
            • Macintosh:
              • OS: OS X Mountain Lion(10.8), OS X Mavericks(10.9)
              • Compatible computers: Apple Macintosh computer with a USB 2.0 port
              • CPU type/speed: Dual core/2 GHz or faster
              • Memory: 2GB or more
              • DRIVER: Core Audio, Core MIDI
            • iOS:
              • OS: iOS 7
            • TH-02:
              • Design: Closed-back dynamic
              • Frequency response: 18Hz – 22,000Hz
              • Driver diameter: 50mm
              • Sensitivity: 98dB (+/-3dB)
              • Input impedance: 32ohms
              • Max input power: 600mW
              • Cable: 9.8ft (3m) when fully extended
              • Plug: 3.5mm(1/8″) stereo mini plug, 6.3mm(1/4″) stereo phone plug adapter
              • Dimensions: 180 (W) × 240 (H) × 90 (D) mm / 7.1 (W) × 9.5 (H) × 3.5 (D) inch
              • Weight: 298g / 0.7lb (With cable)
            • TM-80:
              • Transducer type: Condenser
              • Polar pattern: Cardioid
              • Frequency response: 20 – 20,000 Hz
              • Output impedance: 200ohm +/-30% (at 1kHz)
              • Load impedance: >1k ohm
              • Sensitivity: -38dB +/-2dB (0dB=1V/Pa at 1kHz)
              • Max SPL: 136dB (at 1kHz=1% THD)
              • S/N ratio: 77 dB
              • Connector: 3-pin XLR male
              • Power supply: 9 to 48V phantom power
              • Dimensions: 48(W) × 165 (H) × 48 (D) mm / 1.9 (W) × 6.5 (H) × 1.9 (D) inch
              • Weight: 300g / 0.7 lb
              • Includes: shock mount, mini desk stand, mic cable (1.8m XLRM – XLRF)
