Focusrite Scarlett 18i20 USB 2.0 Audio Interface

ออดิโอ อินเตอร์เฟส Scarlett 18i20 18 Inputs/20 Outputs เชื่อมต่อแบบ USB 2.0 สำหรับงานบันทึกเสียง, 8 Focusrite Preamps, 24-Bit / 96 kHz, Focusrite Red 2 and Red 3 Plug-In Suite รองรับ Mac OS X, iOS, Windows 7/8

(Discontinued) ปัจจุบันเปลี่ยนรุ่นเป็น ออดิโออินเตอร์เฟส Focusrite Scarlett 18i20 (3rd Gen) USB Audio Interface



฿19,900.00

สอบถามและสั่งซื้อสินค้า

Description

Focusrite Scarlett 18i20 USB 2.0 Audio Interface (DISCONTINUED)

ออดิโอ อินเตอร์เฟส Scarlett 18i20 18 Inputs/20 Outputs เชื่อมต่อแบบ USB 2.0 สำหรับงานบันทึกเสียง, 8 Focusrite Preamps, 24-Bit / 96 kHz, Focusrite Red 2 and Red 3 Plug-In Suite รองรับ Mac OS X, iOS, Windows 7/8

The Scarlett 18i20 from Focusrite is a multi-channel USB-based audio interface that features eight of the company’s microphone preamplifiers, and is designed specifically for use in a computer environment. The microphone preamps deliver excellent headroom and dynamic range with low noise and minimal distortion. The two front-panel inputs also offer 10 dB pads for handling high level inputs without distortion.

focusrite_scarlett_18i20_2

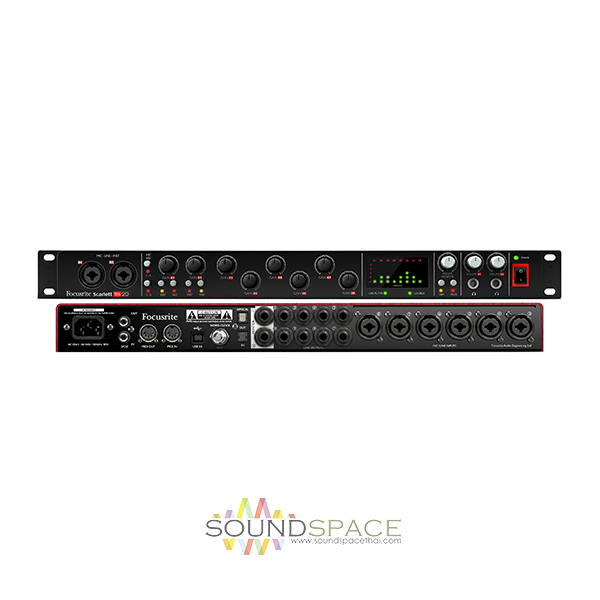

The interface features eight analog input and outputs, with the remaining I/Os of the eighteen inputs and twenty outputs being handled via digital. The analog inputs can be accessed via six Combo XLR/TRS microphone/line connectors, while the two front panel Combo inputs add instrument inputs and the 10dB pads. Ten analog line outputs, which include two independent headphone outputs on the front panel, take care of the analog output, while ADAT and S/PDIF digital I/O, plus MIDI I/O and Wordclock out for digital synchronization extend the functionality of the unit.

The ADAT interface can be used to bring in digital sources, or to add extra preamps for situations that require recording a complete band. The included Scarlett MixControl software delivers a low-latency 18 x 16 DSP mixer with powerful routing and monitoring capabilities. Additionally, the unit ships with a comprehensive set of software tools, including a DAW, a plug-in pack, a virtual instrument and 1GB sample library, suitable for using on Windows, Mac, and even iOS platforms. iOS functionality requires the separate purchase of Apple’s Camera Connection Kit.

The Focusrite Red 2 and Red 3 Plug-In Suite (AAX, Audio Units, VST) delivers accurately modeled plug-ins based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. The plug-ins allow for conveniently exploring the sound of the hardware originals from within Pro Tools (10 and above), along with other audio software. The software is a free download for new and current owners of the Scarlett 18i20.

In addition to the Red 2 and Red 3 Plug-in Suite, the interface includes the Softube Time and Tone Pack. Modeled after the Drawmer 1973 FET Stereo compressor hardware, the Drawmer S73 Intelligent Master Processor is a plug-in that aids in balancing and shaping a mix. TSAR-1R Reverb adds space, depth, and width to a sound. Change settings with a single slider, from realistic three-dimensional rooms to dramatic and dreamlike halls. Tube Delay is an echo effect that can go from clean to rude by overdriving its three modeled tube stages – delivering everything from realistic room echoes, to rockabilly style slap back, to dub reggae echo. Saturation Knob is a modeled output distortion unit that adds grit and warmth – use it to fatten up bass lines, add some harmonics and shimmer to vocals, or simply destroy a drum loop.

Features:

  • 18 input, 20 output USB 2.0 interface
  • Up to 24-bit / 96 kHz operation
  • Eight Focusrite preamps
  • Dual independent headphone buses can provide two independent, fully-customized monitor mixes, each with an independent front-panel level control
  • S/PDIF and ADAT input and output with four channels of ADAT Lightpipe available via SMUX 2
  • MIDI I/O
  • Scarlett MixControl low-latency DSP mixer/router for flexible and intuitive one-click set-up solutions – provides an 18 x 16 DSP mixer with comprehensive routing and monitoring options
  • Route any input signal or DAW output, or a mix of both to any output
  • Includes Ableton Live Lite production and performance software, Scarlett Plug-in Suite (EQ, compression, gating, reverb), Novation Bass Station software model of the Novation analog mono-synthesizer, and 1GB of Loopmasters samples
  • Focusrite Red 2 and Red 3 Plug-In Suite (AAX, Audio Units, VST) delivers accurately modeled plug-ins based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware
  • Softube Time and Tone Bundle includes Drawmer S73 Intelligent Master Processor, TSAR-1R Reverb, Tube Delay echo effect, and Saturation Knob, a modeled output distortion unit
  • Compatible with Mac, Windows, and iOS

Specifications

Focusrite Scarlett 18i20 USB 2.0 Audio Interface

Inputs 8 x XLR Combo Microphone/Line
2 x RCA coaxial S/PDIF
1 x TOSLink optical Lightpipe (4 channels via SMUX 2 @ 96 kHz)
1 x 5-pin DIN MIDI
Outputs 2 x 1/4″ TRS Monitor
8 x 1/4″ TRS Line
2 x 1/4″ TRS Headphone (front panel)
2 x RCA coaxial S/PDIF
1 x TOSLink optical Lightpipe (4 channels via SMUX 2 @ 96 kHz)
1 x 5-pin DIN MIDI
System Requirements Mac
OS X 10.7 (Lion) or 10.8 (Mountain Lion), or laterWindows
Windows 7 (32- and 64-bit) or Windows 8 (not including Windows RT)
Packaging Info
Package Weight 11.0 lb
Box Dimensions (LxWxH) 23.7 x 14.1 x 3.6″

Software

Scarlett 18i20 and Ableton Live Lite

Ableton Live Lite

Innovative music production software used by industry professionals all over the world. Ableton Live includes a unique performance feature as well as being a fully functioning DAW.




Scarlett 18i20 and Scarlett MixControl

Scarlett MixControl

An 18 x 8 DSP mixer. Offering a superb level of flexibility, MixControl software enables you to create eight separate mixes with ultra-low-latency.






Scarlett 18i20 Scarlett Plug-in Suite

Scarlett Plug-in Suite

VST/AU/RTAS Plug-in Suite comes in the box, adding Focusrite compression, reverb, gating and EQ to your recording system.






Scarlett 18i20 and Novation Bass Station

Novation Bass Station

The legendary analogue mono-synth from Novation in software form – AU/VST plug-in for your DAW.






Scarlett 18i20 and Loopmasters

Loopmasters

1 gig of royalty-free samples from the world’s leading sample production organisation – Loopmasters.
