ออดิโออินเตอร์เฟส TASCAM US4x4 USB Audio Interface

Name: ออดิโออินเตอร์เฟส TASCAM US4x4 USB Audio Interface
Brand: TASCAM
SKU: 13181
Price: 7400.00 THB
Availability: InStock

Original price was: ฿7,490.00.Current price is: ฿7,400.00.

TASCAM US4X4 Up to 24-bit/96kHz Resolution, Combo XLR/TRS Mic/Line Inputs, Angled Aluminum Design, Independent Line & Headphone Out Control, 2x Headphone Jacks with 45mW Amplifiers, NE5532 Op Amps

ราคาไม่รวมภาษีมูลค่าเพิ่ม

สอบถามและสั่งซื้อสินค้า

Category: ออดิโออินเตอร์เฟส (Audio Interface) Tag: TASCAM

แชร์สินค้านี้: Facebook X LINE

Description

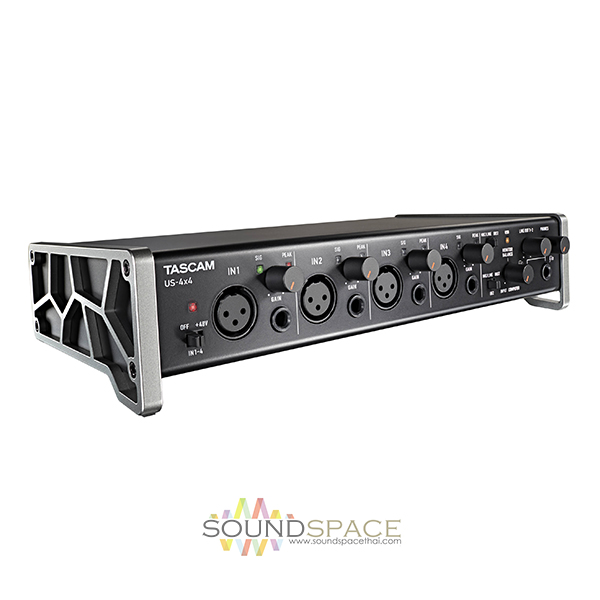

TASCAM US4X4 USB Audio Interface

ออดิโออินเตอร์เฟส TASCAM US4X4 Up to 24-bit/96kHz Resolution, Combo XLR/TRS Mic/Line Inputs, Angled Aluminum Design, Independent Line & Headphone Out Control, 2x Headphone Jacks with 45mW Amplifiers, NE5532 Op Amps

Featuring 4 of Tascam’s Ultra-HDDA low noise microphone/line inputs, the US-4×4 4-Channel USB Audio Interface from Tascam is capable of tracking 4 channels simultaneously in up to 24-bit/96kHz resolution to your compatible Mac, Windows, or iOS device. The device features an angled aluminum design allowing for easy visibility when placed on a desktop.

Features:

Functions common to both the US-2×2 and US-4×4

Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
NE5532 op-amps used at the audio input and output stages
Up to 96kHz/24-bit recording
Support for Windows and Mac OS X operating systems
USB 2.0 computer connection
Connect with iPads and other iOS devices
+48V phantom power for all inputs
Two switchable high-impedance inputs
Microphone preamp gain range of 57 dB
Direct monitoring function for zero-latency monitoring
Tough all-metal casing for durability
Angled design provides excellent usability on a desktop
Balanced analog TRS output jacks suitable for connection to powered monitors
Standard TRS headphones output jack
Separate controls for line and headphones output volumes
MIDI input and output
Output sources can be selected in the setting panel
Input sound monitoring can be set to stereo or mono
Input muting function eliminates noise from unused inputs
USB class compliant 2.0 support
License cards included for SONAR X3 LE/Ableton Live Lite 9
Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band）

Unique features for the US-2×2

Two Ultra-HDDA mic preamplifiers
Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power
Two TRS analog balanced outputs
18mW/ch headphone output
USB bus-powered for mobile recording
Optional AC adaptor available for use with iOS devices

Unique features for the US-4×4

Four Ultra-HDDA mic preamplifiers
Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power
Four TRS analog balanced outputs
Two headphone outputs – each with 45mW/ch output power
Dedicated AC adapter is include

Specifications

AUDIO INTERFACE USB TASCAM US4x4

•	US-2×2	US-4×4
Sampling frequency	44.1k/48k/88.2k/96kHz
Quantization bit rate	16/24bit
Analog audio inputs
MIC IN	IN 1-2	IN 1-4
Connector	XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance	2.2k ohms
Nominal input level
GAIN:MAX	-65dBu (0.0004Vrms)
GAIN:MIN	-8dBu (0.3090Vrms)
Maximum input level (GAIN:MIN )	+8dBu (1.9467Vrms)
Gain	57dB
INST IN	IN 1-2	IN 1-2
Connector	6.3mm(1/4″)TS-jack(T：HOT, S：GND), UNBALANCED (When set to “INST” at MIC/LINE.INST switch)
Input impedance	1M ohms
Nominal input level
GAIN:MAX	-63dBV(0.0007Vrms)
GAIN:MIN	-6dBV(0.5015Vrms)
Maximum input level (GAIN:MIN )	+10dBV(3.162Vrms)
Gain	57dB
LINE IN	IN 1-2	IN 1-4
Connector	6.3mm(1/4″)TRS-jack(T：HOT, R：COLD, S：GND), BALANCED (When set to “MIC/LINE” at MIC/LINE.INST switch)
Input impedance	10k ohms
Nominal input level
GAIN:MAX	-53dBu(0.0017Vrms)
GAIN:MIN	+4dBu(1.228Vrms)
Maximum input level (GAIN:MIN )	+20dBu(7.75Vrms)
Gain	57dB
Analog audio outputs
LINE OUT
Connector	6.3mm(1/4″)TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
Output impedance	110ohms
Nominal output level	+4dBu (1.273Vrms)
Maximum output level	+20dBu (7.75Vrms)
PHONES
Connector	6.3mm(1/4″) stereo phone jack
Maximum output level	18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded)	45mW+45mW or more (THD+N 0.1% or less, 32ohms loaded)
MIDI IN / OUT
Connector	Din 5-pin
Format	Standard MIDI format
USB
Connector	USB B type 4-pin
Format	USB2.0 HIGH SPEED
Power
When connected PC	USB bus powered	Dedicated AC adapter (GPE248-120200-Z, included)
When connected iOS	AC Adapter (TASCAM PS-P520, sold separately)
Power consumption	2.5W	5W
Dimensions	7.32″ W ×2.56″ H ×6.3″ D  (186mm W x 65mm H x 160mm D)	11.62″ W x 2.56″ H x 6.3″ D (296mm W ×65mm H × 160mm D)
Weight	2.43lb (1.1kg)	3.53lb (1.6kg)
Operating temperature	5 to 35˚C
Bundled software	Cakewalk SONAR X3 LE Ableton Live 9 Lite
Accessories	USB cable, SONAR X3 LE license card, Live 9 Lite license card, User’s manual, warranty card	AC adapter(GPE248-120200-Z), USB cable, SONAR X3 LE license card, Live 9 Lite license card, User’s manual, warranty card

Audio performance
Frequency response
LINE OUT(BALANCED)
44.1k/48k Hz	20Hz to 20kHz, +0dB/-0.1dB
88.2k/96k Hz	20Hz to 40kHz, +0dB/-0.2dB
PHONES
44.1k/48k Hz	20Hz to 20kHz, +0dB/-0.5dB
88.2k/96k Hz	20Hz to 40kHz, +0dB/-2dB
THD	0.003% or less
S/N ratio	101dB or more
Crosstalk	95dB or more
EIN	-127dBu or less

Computer system requirements
Windows
OS	Windows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit) * For further information of the latest OS version, please click here.
Compatible computers	Windows-compatible computer with a USB 2.0 port
CPU type/speed	Dual core/2 GHz or faster (x86)
Memory	2GB or more
DRIVER	ASIO2.0, WDM(MME)
Macintosh
OS	OS X Mountain Lion(10.8), OS X Mavericks(10.9) * For further information of the latest OS version, please click here.
Compatible computers	Apple Macintosh computer with a USB 2.0 port
CPU type/speed	Dual core/2 GHz or faster
Memory	2GB or more
DRIVER	Core Audio, Core MIDI
iOS
OS	iOS 7 * For more information about the OS compatibility on each models, please here.
