AVID MBox 3 with Pro Tools Express

Mbox with Pro Tools Express 4-channel USB Audio/MIDI Interface, Pro Tools Express Software, Mac OS X, Windows 7


฿20,700.00 ฿17,000.00

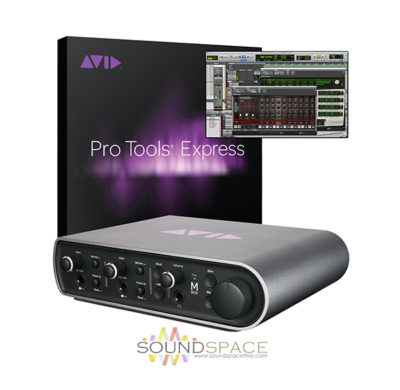

Avid Mbox with Pro Tools Express ProTools Studio Bundle

Mbox with Pro Tools Express 4-channel USB Audio/MIDI Interface, Pro Tools Express Software, Mac OS X, Windows 7

The Pro Tools Express + Mbox from Avid combines a 4 input/4 output USB interface with another iteration of the company’s industry-standard software, Pro Tools Express. While partially restricted when compared to Pro Tools 10, Pro Tools Express still features many of its sibling’s features.

The software has 16 mono/stereo audio tracks, and allows for 8 channels of simultaneous input and output (hardware dependant). Automatic Delay Compensation (ADC) is fully supported, as is video support. Maximum sampling rate is capped at 96kHz. The software also fully supports the use of third party plug-ins.

The Mbox is an ultra-portable third generation USB digital audio interface that allows for recording, editing and mixing performances and is perfect for the solo musicians and audio creators. Easily connect microphones, instruments, and monitors with a computer to capture and create studio-quality productions.


Pro Tools Express

  • Industry-standard recording software
  • Full edit-screen display configuration
  • Separate Edit and Mix windows
  • Full Pro Tools file-support and session compatibility
  • Full routing with sends, inserts and bussing
  • High-quality virtual-instruments
  • Dozens of effect and audio-processing plug-ins


  • Professional-grade circuitry and premium audio conversion
  • Capture and mix high-quality sessions with up to 24-bit/96 kHz audio resolution
  • Connect and control equipment with 4 x 4 simultaneous channels of I/O
  • Two XLR microphone/line combo inputs with a professional-grade microphone preamps and 48V phantom power
  • Two 1/4″ instrument inputs on front panel for easy access
  • Two balanced 1/4″ TRS monitor outputs
  • Stereo headphone output on a 1/4″ TRS connector
  • One MIDI input, one MIDI output
  • Monitor control section with Mono and Dim controls
  • Dedicated monitor volume knob
  • Built-in guitar tuner
  • Set up flexible cue mixing and reverb effects with the onboard DSP


In the Box

  • Mbox interface
  • Pro Tools Express software activation card (download required)
  • Drivers installation disc
  • iLok 2 USB key
  • USB cable
  • Mbox quick setup guide
  • Registration card

Pro Tools Express

Compose, record, edit, and mix at the speed of your creativity—and get the professional tools you need to sound your very best. Pro Tools Express, included with Mbox interfaces, offers many of the same industry-standard tools of its big brother, Pro Tools, to help you turn the song in your head into reality, with professional results.

Virtual Instruments

  •  Boom drum machine and sequencer
  • Structure Free sample player (based on Structure)
  • Xpand!2 multitimbral synth and sample workstation
  • Sound processing, effects, and utility
  • 1-Band EQ III
  • 4-Band EQ III
  • 7-Band EQ III
  • AIR Chorus
  • AIR Distortion
  • AIR Dynamic Delay
  • AIR Flanger
  • AIR Frequency Shifter
  • AIR Lo-Fi
  • AIR Multi-Delay
  • AIR Phaser
  • AIR Vintage Filter
  • BF76 Compressor 1176 emulator
  • Click
  • Compressor/Limiter
  • D-Verb reverb and ambience
  • DC Offset Removal
  • De-Esser
  • DigiReWire
  • Dither
  • Duplicate
  • Eleven Free (guitar amp emulator based on Eleven)
  • Expander/Gate
  • Invert
  • Normalize
  • Reverse
  • Time Compression Expansion
  • TL InTune digital tuner


Total # Of Channels 4 x In, 4 x Out (Simultaneous)
2 x In, 2 x Out (Simultaneous Analog I/O)
Mic Preamps 2
Direct Inputs 2 x Instrument DIs
Tuner Yes
Phantom Power Yes, 48V
Limiter 2 x Soft-Clip Limiters (1 on Each Mic Preamp)
Max Resolution 24-bit/96kHz
Assignable Buttons 1 x Assignable Software Control Button
Controls Mono and Dim Controls
Dedicated Master Volume Knob
Connectors 2 x XLR/TRS Mic/Line Combo Inputs
2 x 1/4″ DI Instrument Inputs
2 x Balanced 1/4″ Monitor Outputs
2 x S/PDIF Connectors (I/O)
2 x MIDI Connectors (I/O)
1 x 1/4″ Stereo Headphone Jack with Volume Knob
1 x USB 2.0 Port
Power USB Bus Power
Compatibility ASIO, Core Audio, WDM, MME, and Multi-Client Drivers
Dimensions (WxDxH) 8.9 x 7.6 x 2.3″ (223 x 192 x 59 mm)
Weight 3.3 lb (1.5 kg)
System Requirements Mac
Intel Processor (no PowerPC support)
OS X 10.7 Lion, 10.8 Mountain Lion (software is not tested/qualified with OS X 10.9 Yosemite or 10.10 Mavericks)
2 GB RAM (4 GB Recommended)
5 GB Free Disk Space
Available native USB portPC
Windows 7 SP1
2 GB RAM (4 GB Recommended)
5 GB Free Disk Space
Available native USB port
Packaging Info
Package Weight 5.55 lb
Box Dimensions (LxWxH) 12.3 x 10.8 x 3.6″
