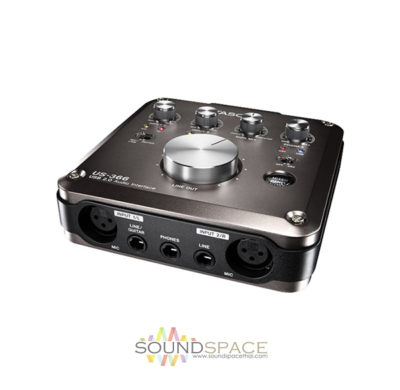

ออดิโออินเตอร์เฟส TASCAM US366 4 Input/6 Output or 6 Input/4 Output, 2 Mic Preamps with 48V Phantom Power, Balanced Line Inputs, Stereo S/PDIF Input/Output, Built-In Compressor, EQ and Reverb
On-board DSP effects include a compressor, 3-band EQ, and reverb. Input effects can be used during recording, while the reverb can be applied to any monitoring signal at the same time. Low-latency monitoring is available from the on-board digital mixer, and volume can be monitored and adjusted easily with the oversized dedicated top panel knob.
A conveniently placed “Mixer Panel” button located on top of the unit provides a one-click recall function for the DSP-mixer. An optional footswitch allows for hands-free operation of a DAW transport control via either “Mackie Control” or “HUI” emulation. The unit is housed in a compact, aluminum desktop housing and is USB bus powered, especially useful for mobile use.
Features:
High-quality HDDAHigh Definition Discrete Architecture) mic pre-amps
Up to 24bit/96kHz recording(US-366 supported 24bit/192kHz recording)
Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power supply
Low-latency monitoring via DSP mixer
On-board digital mixer(DSP mixer) delivers two operation modes
On-board digital effects(DSP effects)(DSP effects can use on 44.1/48kHz operating)
Dedicated “MIXER PANEL” button recalls DSP mixer with one-click
Oversized LINE OUT volume knob
Two TRS analog balanced outputs
Two RCA analog unbalanced outputs
18mW+18mW headphone output
Desktop design provides highly stability and usability
Aluminum body provides premium looks and luxurious feel
USB bus-powered for mobile recording
Up to 24bit/192kHz recording

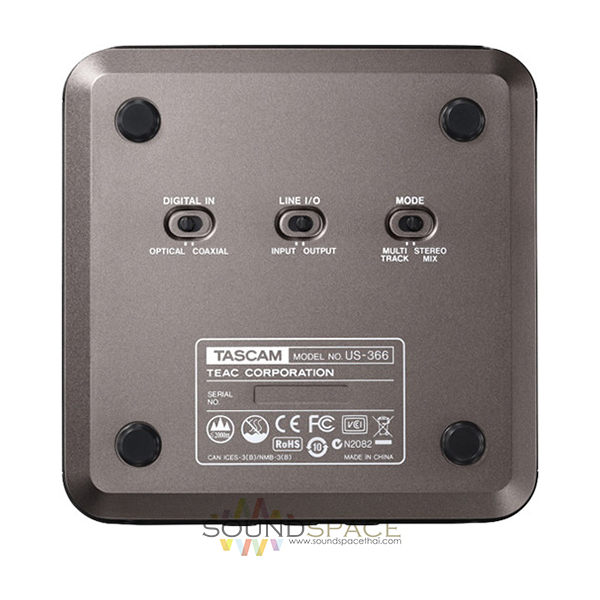

LINE 3-4 connectors can select between input or output, up to six inputs or six outputs(When operating on 192kHz, LINE
3-4 connectors outputs same signal as digital output.)
Coaxial/Optical digital input and output (one input connector available at a time)
RC-3F optional footswitch ready
Includes Cakewalk SONAR X3 LE (Windows) and Ableton Live Lite 9 (Mac OS X/Windows)
Specifications
AUDIO INTERFACE USB TASCAM US366
Sample Rates
44.1, 48, 88.2, 176.4 and 192 kHz
Bit Rates
16- or 24-bit (internal operation is 24-bit)
Inputs
2 x XLR Microphone
2 x 1/4″ TRS phone Line (balanced)
2 x RCA coaxial (when set to INPUT with the line I/O switch)*
Input Impedance
Microphone: 2.2kΩ
Line: 15kΩ
Instrument: 1MΩ
Line RCA: 15kΩ*
Nominal Input Level
Microphone
-65 dBu (maximum input)
-22 dBu (minimum input)
Line TRS
-39 dBu (maximum input)
+4 dBu (minimum input)
Instrument
-55 dBV (maximum input)
-12 dBV (minimum input)
Line RCA
-10 dBV*
Maximum Input Level
Microphone: -6 dBu
Line TRS: +20 dBu
Instrument: +4 dBV
Line RCA: +6 dBV

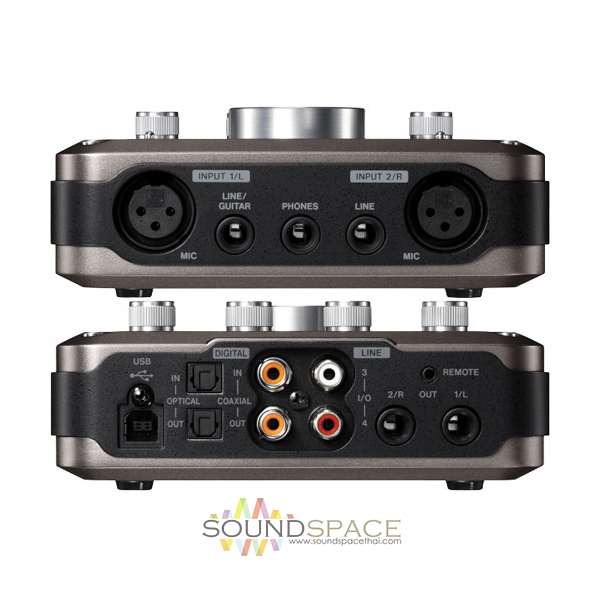

Outputs
2 x 1/4″ TRS phone Line
2 x RCA phono Line (when set to OUTPUT with the line I/O switch)
1 x 1/4″ TRS Headphone
Output Impedance
1/4″ TRS: 100Ω
RCA phono: 200Ω
Nominal Output Level
1/4″ TRS: +4 dBu
RCA phono: -10 dBV
Maximum Output Level
1/4″ TRS: +20 dBu
RCA phono: +6 dBV
Headphone: 18mW + 18mW or more (THD + N 0.1% or less 32Ω loaded)
Digital Inputs
1 x RCA coaxial S/PDIF**
1 x TOSLink optical S/PDIF**
**Input format choice selected via the DSP mixer
Digital Outputs
1 x RCA coaxial S/PDIF or AES/EBU***
1 x TOSLink optical S/PDIF or AES/EBU***
***Format selection via the DSP mixer
Other Connectors
USB Type B, 4-pin (supports USB 1.1)
USB 2.0 high speed mass storage class format
1 x 2.5 mm stereo mini for optional RC-3F Remote Footswitch
Frequency Response
Mic Preamp: 10 Hz to 68 kHz, +0.5/-3.0 dB
Mic In to Line Out: 10 Hz to 68 kHz, +0.5/-3.0 dB
Mic In to Phones: 10 Hz to 30 kHz, +0.5/-1.0 dB
THD
0.0045% or less (Mic In to Line Out, Input 1 and 2 knobs at minimum, 88.2/96 kHz)
Dynamic Range
ADC: 102 dB (44.1 kHz, A-weighted)
DAC: 106 dB (44.1 kHz, A-weighted)
Noise
SNR: 98 dB or more (Mic In to Line Out, Input 1 and 2 knobs at minimum, 88.2/96 kHz)
EIN: -120 dBu or less (Mic In to Line Out, Inputs 1 and 2 knobs at maximum, 88.2/96 kHz)
