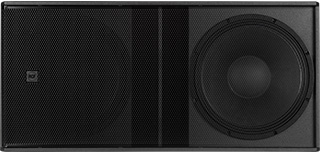

ตู้ลำโพงซับเบส RCF SUB 8008-AS Active Subwoofer Dual 18″
ลำโพงซับวูฟเฟอร์แบบมีกำลังขยายในตัว RCF SUB 8008-AS เป็นตู้ซับเบส Bass-Reflex Subwoofer ที่มีขนาดดอกลำโพง 18 นิ้ว 2 ดอก มีกำลังขับ 4400 W Peak/ 2200 W Program/1100 W RMS Class-D Amplifier ตอบสนองความถี่ 30 Hz to 120 Hz, 137 dB max SPL
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿211,330.00
Description
RCF SUB 8008-AS Active Subwoofer 2×18″ 4400W
ลำโพงซับวูฟเฟอร์แบบมีกำลังขยายในตัว RCF SUB 8008-AS เป็นตู้ซับเบส Bass-Reflex Subwoofer ที่มีขนาดดอกลำโพง 18 นิ้ว 2 ดอก มีกำลังขับ 4400 W Peak/ 2200 W Program/1100 W RMS Class-D Amplifier ตอบสนองความถี่ 30 Hz to 120 Hz, 137 dB max SPL
The SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom.
The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling. Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings.
The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.
Features:
- Up to 137 dB Sound Pressure Level
- 4400W Class-D Bi-Amplification
- 30-120 Hz linear frequency response
- 2 x 18″ High Power Woofers
- IP Rated Powercon TRUE1 TOP IN/OUT
- 8 Crossover Presets and 4 Cardioid Presets
Specifications
| Configuration | Active Subwoofer |
| Enclosure Type | Bass-Reflex Line Array Subwoofer |
| Total Power Capacity | 4400 W Peak |
| Amplifier Power Rating | 4400 W Peak 2200 W Program 1100 W RMS |
| Amplifier Class | Class-D |
| MF Driver | None |
| LF Driver | 2 x 18″ / 45.7 cm Woofer |
| LF Voice Coil | 4″ / 10.2 cm |
| Magnet | Neodymium |
| Frequency Response | 30 Hz to 120 Hz |
| Maximum SPL | 137 dB |
| Input Sensitivity | +4 dBu to -2 dBu |
| Protections | Output Limiter, Thermal |
| Audio I/O | 2 x XLR 3-Pin Female Balanced Line Input (Lockable) 2 x XLR 3-Pin Male Balanced Line Thru |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | None |
| EQ | Yes |
| Parametric EQ | None |
| Semi-Parametric EQ | None |
| Alignment Delay | Yes |
| Phase Adjustment | Yes |
| Digital Signal Processing | Delay, FIR Filter, User Settings |
| AC Input Power | 100 to 120 VAC, 60 Hz |
| AC Power I/O | 1 x PowerCON TRUE1 Input (Locking) 1 x PowerCON TRUE1 Output (Locking) |
| Mounting | 2 x M20 Pole Socket (Side, Top) |
| Handles | 2 x Each Side |
| Cooling | Convection |
| Construction Material | Metal Grille, Plywood |
| Certifications | CE *as per Manufacturer |
| Dimensions | 46.5 x 27.6 x 21.7″ / 118.1 x 70.1 x 55.1 cm |
| Weight | 176.3 lb / 80 kg |
Downloads
ดาวน์โหลด Data Sheet RCF SUB 8008-AS
