ครอสโอเวอร์ PEAVEY PV-23XO Crossover

Crossover PV-23XO 2ทางสเตอริโอ/3ทางโมโน XLR input and output connectors


฿12,000.00 ฿7,000.00

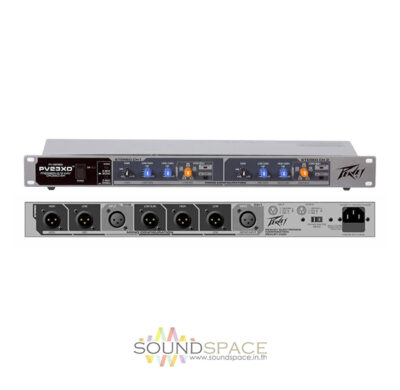

ครอสโอเวอร์ PEAVEY PV-23XO 2-Way Stereo/3-Way Mono Crossover

Crossover PV-23XO 2ทางสเตอริโอ/3ทางโมโน XLR input and output connectors

The PV 23XO is a two dualchannel crossover incorporating Peavey’s legendary low-noise, low-distortion design. Ruggedly constructed, PV 23XO gives the operator the flexibility to establish a two-way stereo system or run in a three-way mono configuration. The PV 23XO has variablestate filter controls with 24 dB per octave filters and utilizes XLR inputs and outputs for balanced operation from 20 Hz to 20 kHz.


  • 24 dB filters and mute switches
  • Fully-adjustable crossover frequencies and levels
  • XLR input and output connectors
  • Internal power supply
  • 2-way stereo or 3-way mono
  • Weight Unpacked: 4.41 lb(2 kg)
  • Weight Packed: 5.29 lb(2.4 kg)
  • Width Packed: 7.25″(18.415 cm)
  • Height Packed: 20.5″(52.07 cm)
  • Depth Packed: 4.25″(10.795 cm)


Filter Type 2-Way or 3-Way, Selectable
Operating Modes Stereo or Mono, Selectable
Crossover Frequencies 100Hz – 10kHz
Gain Range 12dB
Controls 1 x Power Switch
1 x Mode Selector Switch
2 x Crossover Knobs
2 x Range Buttons
2 x Master Gain Knobs
2 x Low Gain Knobs
2 x High Gain Knobs
1 x Voltage Selector Switch
Connectors 1 x AC Power Input
2 x XLR Inputs
5 x XLR Outputs
Maximum Input Level +14dBu
Maximum Output Level +22dBu
Frequency Response Not Specified by Manufacturer
Total Harmonic Distortion (THD) < 0.02%
Noise -90dB
Power 120VAC 50/60Hz
Dimensions (WxDxH) 7.25 x 20.5 x 4.25″ (184 x 520 x 108mm) (Packaged)
Weight 4.4 lbs (2kg)
