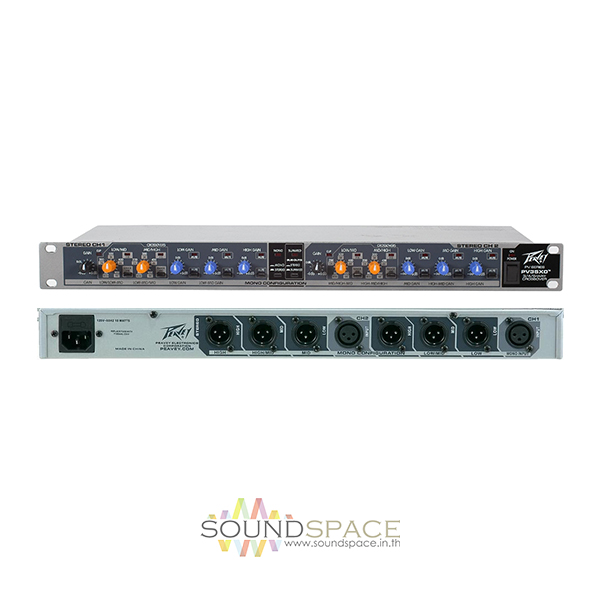

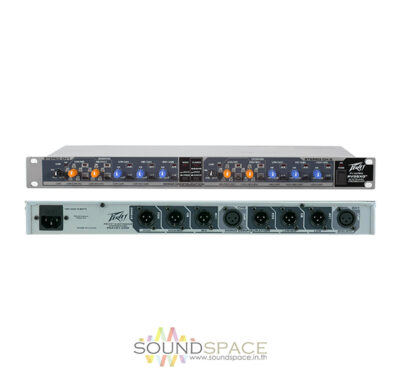

ครอสโอเวอร์ PEAVEY PV-35XO Crossover

Crossover PV-35XO 3ทางสเตอริโอ/4-5ทางโมโน XLR input and output connectors, 24dB/octave LR filters


฿19,000.00 ฿7,500.00



ครอสโอเวอร์ PEAVEY PV-35XO 3-Way Stereo/4-or-5 Way Mono Crossover

Crossover PV-35XO 3ทางสเตอริโอ/4-5ทางโมโน XLR input and output connectors, 24dB/octave LR filters

The PV 35XO is a dual-channel model incorporating Peavey’s legendary low-noise, low-distortion design. Ruggedly constructed, the PV 35XO gives the operator the flexibility to establish a three-way stereo system or run in a four-way and even a five-way mono configuration. The PV 35XO has variable state filter controls with 24 dB per octave filters. The PV 35XO utilizes XLR inputs and outputs for balanced operation from 20 Hz – 20 kHz.


  • 4-way and 5-way mono operation
  • Variable state filter controls
  • 24dB/octave LR filters
  • Mute capabilities for each output level control
  • XLR (balanced input and outputs on each channel, Phase inversion switch on each band-pass output (except low sum)
  • Low sum output jack to sum the low frequency, stereo content
  • 3-way stereo operation
  • Weight Unpacked: 5.00 lb(2.268 kg)
  • Weight Packed: 7.00 lb(3.175 kg)
  • Width Packed: 4″(10.16 cm)
  • Height Packed: 20.25″(51.435 cm)
  • Depth Packed: 8.62″(21.8948 cm)



Filter Type 3-Way or 4/5-Way, Selectable
Operating Modes Stereo or Mono, Selectable
Crossover Frequencies 80Hz – 9kHz
Gain Range 12dB
Controls 1 x Power Switch
1 x Mode Selector Switch
1 x Stereo/Summed Switch
4 x Crossover Frequency Knobs
4 x Range Buttons
2 x Master Gain Knobs
2 x Low Gain Knobs
2 x Mid Gain Knobs
2 x High Gain Knobs
6 x Mute Buttons
1 x Voltage Selector Switch
Connectors 1 x AC Power Input
2 x XLR Inputs
6 x XLR Outputs
Maximum Input Level Not Specified by Manufacturer
Maximum Output Level Not Specified by Manufacturer
Frequency Response 20Hz – 20kHz
Total Harmonic Distortion (THD) 0.005%
Signal to Noise Ratio -92dB
Power 120-240VAC 50/60Hz
Dimensions (WxDxH) 8.6 x 20.25 x 4″ (219 x 514 x 102mm) (Packaged)
Weight 5 lbs (2.3kg)
