ตู้ลำโพง NEXO iD84 High Performance Column Loudspeaker

Name: ตู้ลำโพง NEXO iD84 High Performance Column Loudspeaker
Price: 150000.00 THB
Availability: InStock

ลำโพงคอลัมน์แบบไม่มีกำลังขยายในตัว รุ่นแรกจากแบรนด์ NEXO iD84 เป็นลำโพงคอลัมน์ที่ให้ความดังสูงถึง 135 dB SPL ตอบสนองความถี่ 90Hz – 20kHz ประกอบด้วยดอกลำโพงขนาด 4 นิ้ว 8 ดอก และ ไดเวอร์เสียงแหลมขนาด 1 นิ้ว จำนวน 8 ดอก มี 2 เวอรชั่นทั้งแบบติดตั้ง iD84I (installation) และ iD84T (Touring)

ราคาพิเศษ….Contact Us…..0863114142

฿150,000.00

สอบถามและสั่งซื้อสินค้า

Category: ลำโพงแบบไม่มีกำลังขยายในตัว (Passive) Tag: NEXO

Description

NEXO iD84 High Performance Column Loudspeaker 8 x 4″

The ID84 is NEXO’s first column speaker design, introducing the company’s trademark characteristics of size-to-power ratio, variable directivities and highly flexible scalable configurations to a loudspeaker category that is relevant for a wide variety of applications.

iD84I Measuring 150mm wide x 215mm deep x the standard 1m high (39.0″ x 5.9″ x 8.5″) and weighing 15kg (33lbs), the ID84 uses eight 4 inch drivers and an array of dome tweeters on a curved baffle in a light-weight aluminium cabinet with a rigid steel spine.

The choice of dome tweeters over a conventional HF compression driver results in particularly low levels of distortion and contributes to a ‘hi-fi’ performance that extends the ID84’s suitability well beyond the traditional column speaker role of voice reproduction into music applications.

The ID84 achieves a frequency range of 90Hz to 20kHz with a peak SPL of 136dB. The unique directivity switch on the rear panel enables instant switching of vertical HF dispersion, and cabinets can be linked ‘end-to-end’ to create longer columns.

Multiple rigging options and a comprehensive range of accessories make it easy to deploy the ID84 in a wide range of fixed installations and mobile applications.

The installation version (ID84-I) is IP54 rated for outdoor use and features a cloth covered grille. Speakers can be specified in custom RAL colours and use a cable gland with a 2-core cable for audio input.

Features:

Compact, high-powered column speaker
8 x 4 inch LF drivers + 8 x dome HF drivers in patent-pending arrangement
135 dB peak SPL

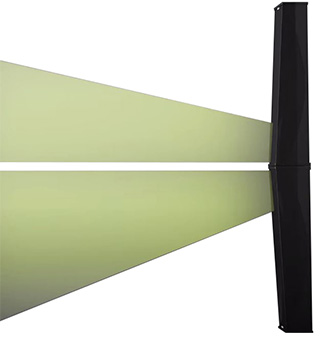

Switchable +0°/-10° (Narrow Mode) or +0°/-25° (Wide Mode) vertical HF dispersion
Installation version with cloth covered grille and 2 core cable connectivity
IP54 rated for outdoor use
Black, white and custom RAL colours

Specifications

Frequency Response @-6 dB	90 Hz to 20 kHz
Sensitivity	105 dB SPL Nominal
Peak SPL@1m	135 dB
Available Crossover Frequencies	90 Hz, 120 Hz
HF Dispersion	Vertical: +0°/-10° (Narrow Mode) or +0°/-25° (Wide mode) \| Horizontal: 100°
Nominal Impedance	4Ω
Recommended Power	650 to 1080 Watts / 4Ω

Number of ways	2 way passive
Components	LF: 8 x 4″ 8 Ohms long excursion Neodymium driver HF: 8 x 1″ 8 Ohms HF driver on a patent-pending arrangement
Narrow/Wide Mode Selection	Ruggedized, recessed, waterproof 2 position switch
Connectors	Cable gland with 2x core cable
Rigging Points	2 x pairs of M6 – 70 mm pitch rigging points + 2x extra M6
Construction	Aluminum body and Magnelis® covers & grill
Finish	Black powder coating (RAL9005), White powder coating (RAL9016) or Custom RAL
Front Finish	UV & Fire resistant acoustic fabric
Operating temperature range	0°C – 40 °C (32° F – 104° F)
Storage temperature range	-20 °C – 60 °C (-4 ° F – 140° F)
Height x Width x Depth	990mm x 150mm x 215 mm (39.0″ x 5.9″ x 8.5″)
Weight: Net	15 kg (33 lbs)
IP Rating	IP54
System Operation
Recommended powering solution	NXAMP4x1mk2 Powered TDcontroller: Up to 2 x ID84 per channel
Electronic controllers	DTDcontroller + DTDAMP4x0.7 : 1 x ID84 per channel
	DTDcontroller + DTDAMP4x1.3 : 1 x ID84 per channel
	NXAMP4x2mk2 Powered TDcontroller: Up to 2 x ID84 per channel
	NXAMP4x4mk2 Powered TDcontroller: Up to 2 x ID84 per channel
