ลำโพงซับเบส QSC GP118 Subwoofer 18″

ลำโพงซับเบสกลางแจ้ง QSC GP118 ขนาด 18″ transducer with 4-inch voice coil Continuous: 850 W (82.5 V) Peak: 1700 W 8 ohms


฿98,000.00 ฿83,300.00



ลำโพงซับเบสกลางแจ้ง QSC GP118 850W 18″

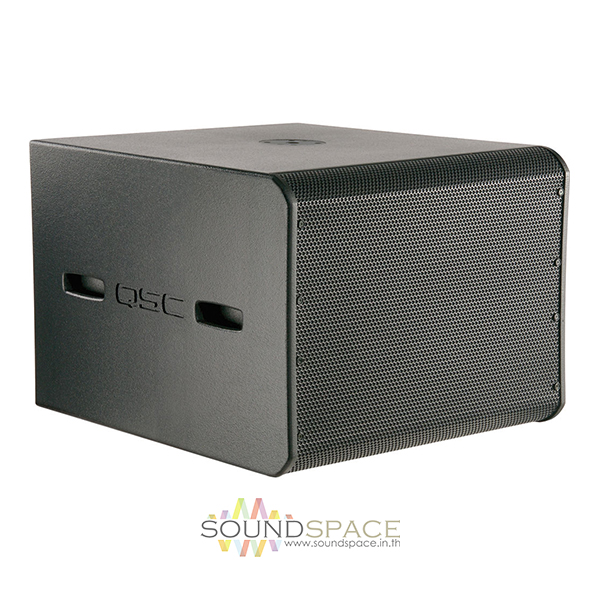

The GP118-sw 18″ Portable Subwoofer from QSC is a high performance, direct radiating 18″ subwoofer with a black tour grade finish. It is designed for use in portable and installed sound applications. The GP118-sw is an ideal companion to QSC’s WideLine Series, ILA Series, AcousticPerformance Series and AcousticDesign Series loudspeakers. The GP118-sw features an 18″ transducer that incorporates a double layer spider and triple roll surround for extended and controlled excursion at extreme power. The 4″ voice coil is wound on a fiberglass former to prevent deformation at high operating temperatures and is vented to reduce power compression. An aluminum demodulating ring is employed to reduce distortion.

The GP118-sw is housed in an 18mm Baltic birch plywood enclosure and finished in an environmentally friendly, waterborne, polymer finish rugged enough for the demands of everyday use while also being field repairable. Internal bracing is employed to eliminate acoustic losses due to panel resonance while maintaining the enclosure’s robustness. The vent walls are constructed of plywood, and the ample port area allows free movement of air. The transducer is protected by a 16-gauge, powder coated steel grille. The GP118-sw includes built-in handles for ease of transport. For increased versatility, the subwoofer can be stacked vertically using the interlocking feet and recess features machined into the enclosure’s top panel. The GP118-sw can also be reversed to facilitate cardioid array deployment.


  • Premium-grade, long excursion, high power 18-inch transducer with 4-inch voicecoil, dual layer spider and triple-roll surrounds
  • Interlocking feet and recess features allow for rigid vertical stacking
  • Built-in handles for ease of transport
  • Threaded pole cup for deploying a full-range loudspeaker on top
  • M10 fittings allows for suspension in permanent and portable applications
  • Dual NL4 Speakon connectors
  • 18mm Baltic birch plywood construction
  • 16-Gauge powder coated steel grilles

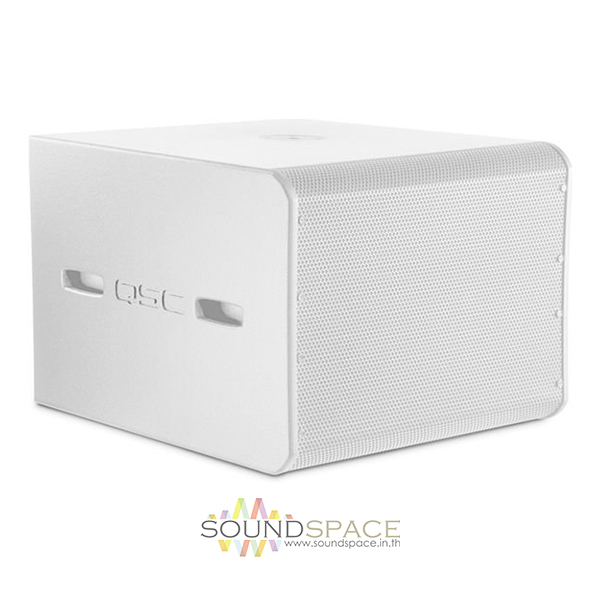

  • Available in black and white
  • Complete EASE, CAD & BIM information available online
  • Cinema-version available for surround LFE


Frequency Response 29 – 800 Hz
Power Capacity Continuous: 850 W (82.5 V)
Peak: 1700 W
Nominal Sensitivity 98 dB, 2.83 V @ 3.3′ (1 m)
Maximum Sound Pressure Level (SPL) Continuous: 129 dB @ 3.3′ (1 m)
Peak: 135 dB @ 3.3′ (1 m)
Nominal Impedance 8 ohms
Transducer 18″ (457 mm) driver with 4″ (102 mm) voice coil
Recommended Power 1700 W
Input Connector Dual NL4
Pinout: 1+/1- Sub
2+/2- N/C
Enclosure Material 18 mm Baltic birch plywood
Finish Black LINE-X
Attachment 16 threaded M10 inserts
Grille 16-gauge powder coated steel
Dimensions 20.9 x 25.8 x 30.4″ (531 x 656 x 772 mm)
Weight 111 lb (50.3 kg)
