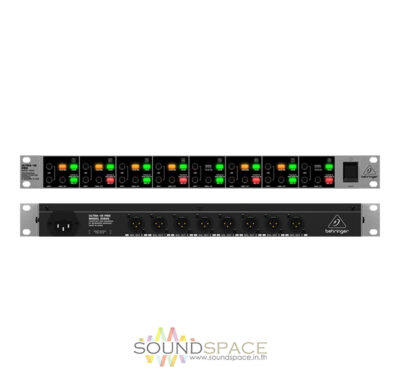

Di Box BEHRINGER DI800 Direct Inject Box

ไดเร็คบ็อก 8 ชาแนล DI800 ULTRA-DI PRO Professional and multi-purpose 8-channel direct injection box for stage and studio applications Provides impedanc and signal


฿7,000.00 ฿5,900.00



ไดเร็คบ็อก 8 ชาแนล BEHRINGER DI800 Di Box

Professional Mains/Phantom Powered 8-Channel DI-Box

The ULTRA-DI PRO DI800 from Behringer is an eight channel professional Direct Injection box, equally suited to both studio use, and for live applications. The unit converts unbalanced line inputs into balanced outputs, and features mains or phantom powered operation.

Each channel features an attenuator switch for boosting low level signals, pad and ground lift switches and the ability to take the speaker output of an amplifier. A front panel LINK connector is wired in parallel with the main input of each channel, and can function as an additional input , or direct output.


  • Professional and multi-purpose 8-channel direct injection box for stage and studio applications
  • Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
  • Ultra-flat frequency response due to servo-balanced operation
  • Optional mains or phantom-powered operation
  • Allows direct connection to speaker outputs with up to 3,000 Watts
  • +20 dB gain switch for pre-amplification of low-level signals
  • Switchable input attenuation allows input levels of up to +40 dB
  • Ground Lift switch eliminates typical ground loop problems
  • Link output for easy connection to further equipment
  • 1/4″ TRS and gold-plated XLR connectors
  • Illuminated switches enable perfect operation in dark stage environments
  • Conceived and designed by BEHRINGER Germany



Type Active
Input Connections 8 x 1/4″ TS phone
Output Connectors 8 x XLR

8 x 1/4″ TS phone

8 x 1/4″ TRS phone LINK (can also function as inputs)

Input Level +18dBu
Output Level +23dBu, balanced

+16dBu, unbalanced

Controls Per channel:

-30dB Attenuation switch

+20dB Pad switch

Ground lift switch

Frequency Response 20Hz to 120kHz, +/-3dB
Noise SNR: -104dBu
Power Mains or 48V phantom power
Power Requirements 120V, 60 Hz

10 W power consumption

Dimensions (WxDxH) 19 x 8.5 x 1.75″ (483 x 217 x 45 mm)
Weight 4.85 lbs (2.2 kg)
Specialties Allows for connecting the speaker output of a power amplifier (up to 3,000W into 4Ω) to the DI800 for direct connection of the amplifier to a mixer
