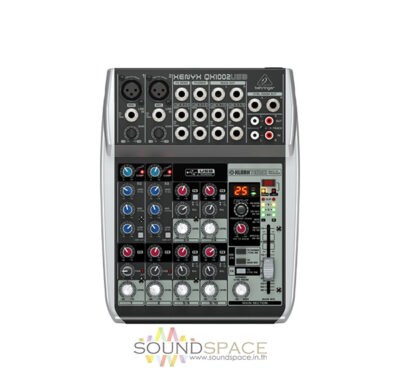

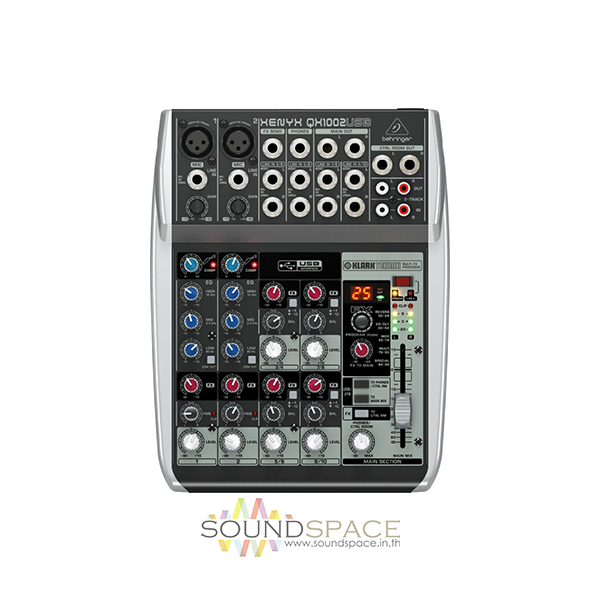

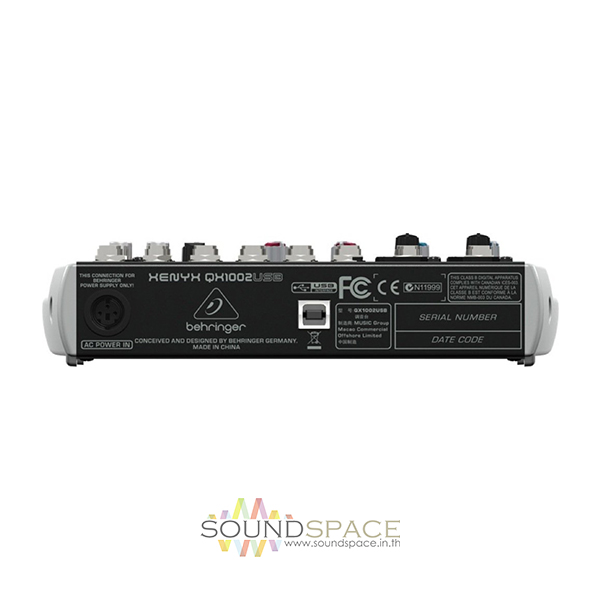

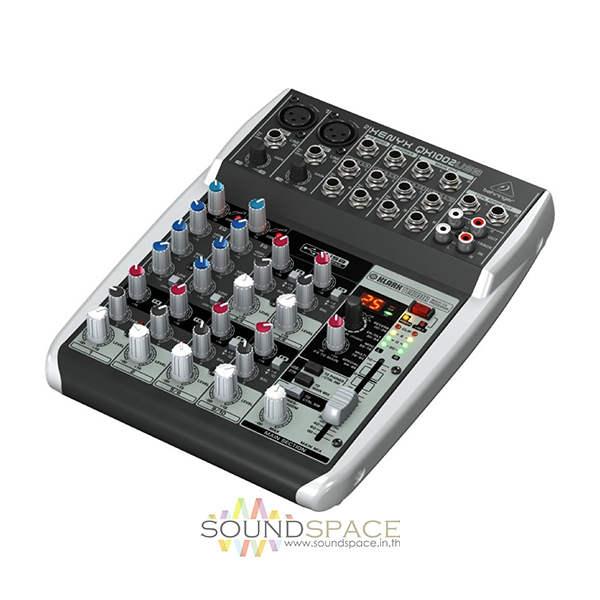

มิกเซอร์ BEHRINGER XENYX QX1002 USB Mixer

เครื่องผสมสัญญาณเสียง XENYX Qx1002 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 10 inputs with 2 mono channels and 4 stereo channels,Ultra-high quality KLARK TEKNIK FX processor with 100 presets including reverb


฿7,500.00 ฿6,350.00




เครื่องผสมสัญญาณเสียง XENYX Qx1002 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 10 inputs with 2 mono channels and 4 stereo channels,Ultra-high quality KLARK TEKNIK FX processor with 100 presets including reverb

With millions of loyal and happy customers, BehringerXenyx mixers stand alone at the top of their class. Armed with premium microphone preamps and robust feature sets typically reserved for more expensive consoles, next-generation Xenyx Q Series USB mixers can handle your live gigs and provide the state-of-the-art tools to make stunning, professional-quality recordings. Select models feature dedicated, “wireless-ready” integration for the ULM Series USB microphones, making them the first of their kind in the industry. Along with their built-in USB/audio interfaces, “one-knob” mono channel compressors and KlarkTeknik FX engines (available on select models), Xenyx Q Series USB mixers come with all the recording and editing software you’ll need to turn your computer into a complete, high-performance recording studio.

KlarkTeknik FX on All QX Models

Nothing adds the finishing touch to a live or recorded performance like really good effects, so they equipped a select group of these mixers with one of the best FX engines in the industry. Designed by the world-renowned KlarkTeknik engineering team, these high-end FX processors feature 32 studio-grade presets with dual addressable parameters, Tap function and storable user parameter settings. Complete with its own dedicated level meter, these effects provide a wide range of enhancement options, from sweet and mild to absolutely wild!

What’s a Compressor?

Ask professional sound engineers what their favorite piece of external processing gear is and the response will be virtually unanimous – dynamic compression. What’s compression? Glad you asked. Compression limits the dynamic range of a signal, lowering the level of loud sounds and turning up softer sounds to achieve sonic balance. But applying compression is a delicate art that many novice, and even intermediate sound techs have difficulty mastering. The “one-knob” compression is available on all mono channels and is easy to operate, even for entry-level users. Now you can easily dial in the perfect amount of compression for instruments and vocals, creating powerful mixes with punch and clarity. The “one-knob” compressors come standard on each and every Xenyx Q Series USB mixer.

Sonically Superior Mic Preamps

All Xenyx mixers have one thing in common; great-sounding, high headroom Xenyxmic preamps. These state-of-the-art mic preamps are a tremendous step in the evolution of audio technology- and they can easily hold their own, even when compared to expensive, boutique-style mic preamps. Xenyx preamps offer a staggering 130 dB of dynamic range with a bandwidth that extends from below 10 Hz to well above 200 kHz. As a result, Xenyx mixers provide such transparent, crystal-clear performance that you just might think someone upgraded your microphones while you weren’t looking.

Sweet British EQ

The British consoles of the 1960s and ’70s changed the sound of rock and roll. Without them, the British Invasion might not have even happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on the Xenyx mixers is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

Recording Ready

There was a time when the recording process called for lots of specialized gear, which meant the average musician had to buy time at a recording studio-and that time was expensive! But modern technology has put personal recording well within the reach of virtually anyone with access to a computer. But how do you get all that music flying around your brain into a computer? That’s where XENYX Q Series mixers come in. Thanks to the built-in, bi-directional stereo USB audio interface, you can connect directly to your PC or Mac computer via a single USB cable. Now any signal source connected to the mixer can be recorded straight to your hard drive.


  • Premium ultra-low noise, high headroom analog mixer
  • 2 state-of-the-art XenyxMic Preamps comparable to stand-alone boutique preamps
  • Studio-grade compressors with super-easy ‘one-knob’ functionality and control LED for professional vocal and instrumental sound
  • Ultra-high quality KlarkTeknik FX processor with 100 presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
  • Built-in stereo USB/Audio Interface to connect directly to your computer
  • Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at
  • Neo-classic ‘British’ 3-band EQs for warm and musical sound
  • FX send control per channel for internal FX processor and/or as external send
  • Main mix outputs plus separate control room, phones and 2-Track outputs
  • 2-Track inputs assignable to main mix or control room/phones outputs
  • High-quality components and exceptionally rugged construction ensure long life
  • Conceived and designed by Behringer Germany


Total # Of Inputs 10
Channels 2 mono

4 stereo

USB Audio Type B connector

2 channels in / 2 channels out

48 kHz sample rate

Busses Stereo mix buss, mono FX buss
Microphone Inputs
Type XLR connector, balanced, discrete input circuit
Mic Preamps 2 x XENYX preamp
Equivalent Input Noise -134 dB / -136 dB A-weighted @ 0Ω source resistance

-131 dB / -133 dB A-weighted @ 50Ω source resistance

-129 dB / -131 dB A-weighted @ 150Ω source resistance

Frequency Response < 10 Hz to 150 kHz (-1 dB)

< 10 Hz to 200 kHz (-3 dB)

Gain Range +10 to +60 dB
Maximum Input Level +12 dBu @ +10 dB Gain
Impedance 1.9kΩ
Signal-to-Noise Ratio 110 dB A-weighted (0 dBu In @ +22 dB gain)
THD + N 0.005% / 0.004% A-weighted
Phantom Power Supply +48V
Line Inputs
Type 1/4″ TRS connector, balanced
Impedance 20kΩ, 10kΩ unbalanced
Gain Range -10 to +40 dB
Maximum Input Level +22 dBu @ 0 dB gain
Stereo Inputs
Type Dual 1/4″ TRS connectors, balanced
Impedance 20kΩ, 10kΩ unbalanced
Gain Range -20 to +20 dB
Maximum Input Level +22 dBu
Type Dual RCA connectors
Input Impedance 18kΩ
Maximum Input Level +22 dBu
Output Impedance 1kΩ
Maximum Output Level +22 dBu
EQ Controls 3-band EQ on mono channels:

Low: ±15 dB @ 80 Hz

Mid: ±15 dB @ 2.5 kHz

High: ±15 dB @ 12 kHz

AUX Section
Aux Sends 1/4″ TRS connector, balanced

Impedance: 120Ω

Maximum output level: +22 dBu

Aux Returns 1/4″ TRS connector, balanced

Impedance: 20kΩ, 10kΩ unbalanced

Maximum input level: +22 dBu

Main Outputs
Type 1/4″ TRS connector, balanced
Impedance 120Ω balanced
Maximum Output Level +22 dBu
Control Room Outputs
Type 1/4″ TRS connector, balanced
Impedance approx. 120Ω
Maximum Output Level +22 dBu
Headphone Output
Type 1/4″ TRS stereo connector, unbalanced
Maximum Output Level +21 dBu / 150Ω (+25 dBm)
Compressor Independent compressor on each mono channel
Metering 4-LED per side
Faders 1 x 60 mm master fader
Noise Main mix @ -∞, channel fader @ -∞

-106 dB / -109 dB A-weighted


Main mix @ 0 dB, channel fader @ -∞

-93 dB / -96 dB A-weighted


Main mix @ 0 dB, channel fader @ 0 dB

-84 dB / -87 dB A-weighted

Power Consumption 13W
Dimensions (W x D x H) 7.7 x 9.8 x 2.0″ (195 x 248 x 50 mm)
Weight 2.4 lb (1.1 kg)
