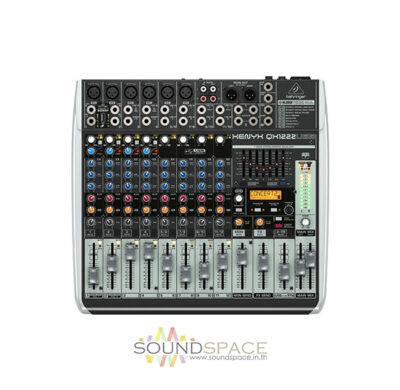

มิกเซอร์ BEHRINGER XENYX QX1222 USB Mixer

เครื่องผสมสัญญาณเสียง XENYX Qx1222 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 16-Input 2/2-Bus, 4x XENYX Preamps with +48V Phantom Power, Klark Teknik FX Processor


฿15,500.00 ฿13,100.00




เครื่องผสมสัญญาณเสียง XENYX Qx1222 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 16-Input 2/2-Bus, 4x XENYX Preamps with +48V Phantom Power, Klark Teknik FX Processor

The X1222USB is a step up from the X1204USB with six mono mic inputs. These two additional channels can also be used for stereo line-level devices, such as keyboards or sound modules. The X1222USB also comes equipped with channel Inserts for inputs 1-4, a stereo 7-band graphic EQ, which can be assigned to the main or monitor buses, and our proprietary FBQ Feedback Detection System. Other features include full-sized faders for MON and FX SENDs, our XPQ 3D stereo surround effect (creates a broader, enhanced stereo image), and a handy Voice Canceller function for removing vocals from pre-recorded tapes and CDs for “instant-karaoke” applications.

XENYX USB Series mixers are designed to handle your live gigs, and they provide the state-of-the-art tools you need to make stunning, professional-quality recordings. Along with their built-in USB/audio interfaces, XENYX USB mixers come with all the recording and editing software you’ll need to turn your computer system into a complete, high-performance home recording studio

Sonically Superior Mic Preamps

All XENYX mixers have one thing in common—great-sounding, high headroom XENYX mic preamps. These state-of-the-art micpres represent a major step in the evolution of audio technology—and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, XENYX mixers provide such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren’t looking.

Sublimely Musical British EQ

The British consoles of the 1960s and ‘70s changed the sound of rock and roll—without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on our XENYX mixers is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

One-Knob Compression

Ask professional sound engineers what their favorite piece of external processing gear is and the majority response will be virtually unanimous—dynamic compression. What is compression? We’re glad you asked. Compression essentially limits the dynamic range of a signal, lowering the level of loud sounds and turning up softer sounds, to achieve sonic balance. But applying compression is a delicate art that many novice, and even intermediate, sound techs have great difficulty mastering. Our “one-knob” compression is available on all mono channels and is easy to operate, even for entry-level users. With this one knob, you can easily dial in the perfect amount of compression for instruments and vocals, creating powerful mixes with punch and clarity. This is indeed a rare feature for products in this class—but standard on all XENYX USB mixers.

Effective FX

All XENYX USB Series mixers (except the 1204USB) feature our new 24-bit dual engine FX processor, with 16 editable, studio-grade presets including reverb, chorus, flanger, delay, pitch shifter and multi-effects. Complete with a highly accurate input meter, these effects can be altered to your personal taste via the Parameter control. Time-based functions can be entered manually by pressing the Tap button in tempo with the music.

Recording Bliss

There was a time when the recording process called for lots and lots of expensive gear, which meant the average musician had to buy time at a recording studio—and that time was pricey indeed. But modern technology has put personal recording well within the reach of virtually anyone with access to a computer. How do you get all that music flying around your brain into your computer? That’s where XENYX USB mixers come in. Thanks to the built-in, bi-directional stereo USB audio interface, you can connect any of these mixers directly to your PC or Mac computer via a single USB cable. Now any signal source you connect to the mixer can be recorded directly to your hard drive. Which brings us to software…


  • Premium ultra-low noise, high headroom analog mixer
  • 4 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
  • 4 studio-grade compressors with super-easy “one-knob” functionality and control LED for professional vocal and instrumental sound
  • Neo-classic “British” 3-band EQs for warm and musical sound
  • New studio-grade FX processor with 16 editable presets including reverb, chorus, flanger, delay, pitch shifter, multi-effects, Tap function and storable user parameter settings
  • Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins and ultra-low latency driver downloadable at
  • 7-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
  • Revolutionary FBQ Feedback Detection System instantly reveals critical frequencies
  • Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
  • Voice Canceller function for easy-to-use sing-along applications
  • 4 fully equipped stereo input channels featuring 2 additional mic inputs on channels 5/6 and 7/8, 3-band EQ and input trim control
  • Channel inserts on each mono channel for flexible connection of outboard equipment
  • 2 aux sends per channel: 1 pre fader for monitoring, 1 post fader (for internal FX and/or as external send); 2 multi-functional stereo aux returns
  • Balanced main mix outputs with gold-plated XLR connectors, headphone/control room output and stereo rec outputs
  • Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
  • “Planet Earth” switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
  • Rack mount brackets included for ultimate flexibility
  • High-quality components and exceptionally rugged construction ensure long life
  • Conceived and designed by BEHRINGER Germany


Total # Of Inputs 16
Input Channels Mono: 4

Stereo: 4

Preamplifier 4x XENYX
USB Connection 2-in/2-out
Buses Mix: 2/2
Phantom Power +48 V
EQ Type Mono channel 3-band
Compressor 4
Wireless (Features) Built-in compatibility with Behringer wireless microphone system
AUX Sends Per channel: 1/1
AUX Returns 2 stereo returns
Metering 12-segment stereo LED meters

Clip LEDs on every channel

Microphone Inputs
Type 6x XLR connector, balanced, discrete input circuit
Mic Input Noise (E.I.N.) From 20 to 20,000 Hz

At 0 Ω source resistance: -134 dB/-136 dB A-weighted


At 50 Ω source resistance: -131 dB/-133 dB A-weighted


At 150 Ω source resistance: -129 dB/-131 dB A-weighted

Frequency Response Preamp:

< 10 to 150,000 Hz (-1 dB)

< 10 to 200,000 Hz (-3 dB)


Mic input to main output:

<10 to 160,000 Hz: ± 3 dB

Dynamic Range Not specified by the manufacturer
Gain Range +10 to +60 dB
Maximum Input Level +12 dBu at +10 dB gain
Impedance 2 kΩ balanced
Signal-to-Noise Ratio 107 dB / 110 dB A-weighted (0 dBu In @ +22 dB gain)
Total Harmonic Distortion (THD) 0.005% / 0.004% A-weighted
Phantom Power Switchable, +48 V
Line Input
Type 1/4″ TRS connector, balanced
Impedance 20 kΩ balanced


10 kΩ unbalanced

Gain Range -10 dB to +40 dB
Maximum Input Level 30 dBu
Stereo Input
Type 4x 1/4″ TRS connector, unbalanced
Impedance 20 kΩ balanced

10 kΩ unbalanced

Gain Range -20 dB to +20 dB
Maximum Input Level +22 dBu
Tape I/O Type: RCA Connectors


Impedance: 10 kΩ


Maximum Input Level: +22 dBu

EQ Type 3-Band Semi-Parametric

Low: 80 Hz / ± 15 dB

Mid: 2,500 Hz; / ± 15 dB

High: 12,500 Hz / ± 15 dB

Type 1/4″ TRS connector, unbalanced
Maximum Input Level +22 dBu
AUX Section
AUX Sends Type: 2x 1/4″ TRS connector, unbalanced


Impedance: 120 Ω


Maximum Output Level: +22 dBu

AUX Returns Type: 2x 1/4″ TRS connector, unbalanced


Impedance: 20 kΩ balanced, 10 kΩ unbalanced


Maximum Input Level: +22 dBu

Main Outputs Type: XLR, balanced


Impedance: 240 Ω symmetrical, 120 Ω unbalanced


Maximum Output Level: +28 dBu

Control Room Outputs Type: 1/4″ TRS connector, balanced


Impedance: 120 Ω


Maximum Output Level: +22 dBu

Headphone Outputs Type: 1/4″ TRS connector, unbalanced


Impedance: 25 Ω


Maximum Output Level: +21 dBu at 150 Ω (+25 dBm)

Stereo Tape Outputs/Type Type: RCA connectors


Impedance: 1 kΩ


Maximum Output Level: +22 dBU

DSP Klark Teknik

Converter: 24-bit Sigma-Delta, 64-/128-times oversampling


Sampling rate: 40 kHz

Noise Main mix at -∞ with channel fader at -∞: -100 dB / -102 dB A-weighted


Main mix at 0 dB with channel fader at -∞: -86 dB / -88 dB A-weighted


Main mix at 0 dB with channel fader at 0 dB: -81 dB / -83 dB A-weighted

USB Audio: Stereo In/Out


Connector: Type B


Converter: 16-bit


Sample Rate: 48 kHz

Power Supply
Mains 100 to 240 V, 50/60 Hz
Power Consumption 40 W
Fuse T 1.6 A H 250 V
Connection Standard IEC receptacle
Dimensions (W x D x H) 14.6 x 13.3 x 3.5″ (370 x 338 x 90 mm)
Weight 8.4 lb (3.8 kg)
