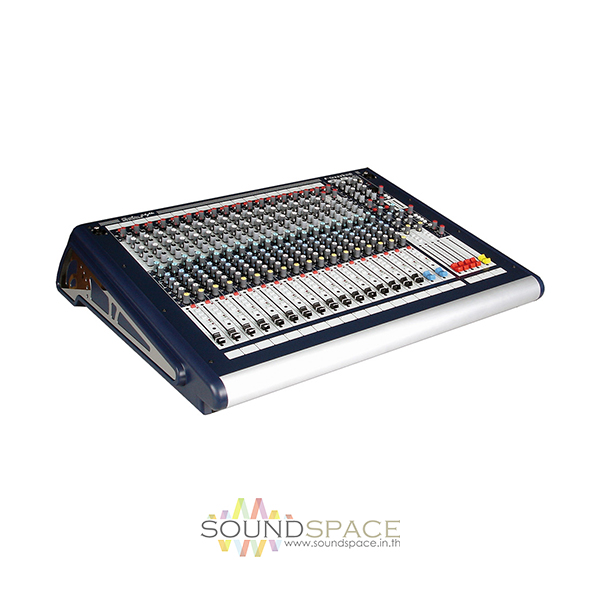

มิกเซอร์ SOUNDCRAFT GB2 16 Console Mixer

เครื่องผสมสัญญาณเสียง SOUNDCRAFT GB2-16 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 16ชาแนล 4 group busses configured as 2 st sub groups and an integral 6 x 2 matrix.


฿102,000.00 ฿59,900.00



มิกเซอร์ SOUNDCRAFT GB2-16 Mixer 16-Ch

เครื่องผสมสัญญาณเสียง SOUNDCRAFT GB2-16 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 16ชาแนล 4 group busses configured as 2 stereo subgroups and an integral 6 x 2 matrix.

The Soundcraft GB2 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB2 is available in 16, 24, 32 channel frames to suite specific needs in live sound mixing.

This model is configured with 16 input channels. 16 inputs feature microphone and line level connections, an additional 2 stereo inputs are also provided. The stereo inputs (STE1 – STE2) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc.

The console features 2 stereo paired group outputs enabling routing to monitors, external recorders, etc. The GB2 series implements Soundcraft’s GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles. Additional features include Soundcraft’s famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.


  • 16 mono inputs
  • 6×2 Matrix (Groups,L,R)
  • Matrix master level controls with MUTE & AFL switches,& LEDs
  • Matrix Outputs on XLRs
  • Aux master controls with AFL switches and LEDs
  • Aux Outputs 1-4 on XLRs, 5-6 on TRS jacks
  • Headphone and Control Room outputs with level control
  • Monitor switching for 2-TK Replay, Mix, Sub 1-2 & Sub 3-4
  • 2-TK replay routing switch to Mix
  • Dual 12-segment LED Peak Reading output metering
  • Talkback mic input, routing to Aux 1-4 and Subgroups
  • Record outputs on RCA Phonos
  • 2-TK Replay inputs on RCA phonos
  • 2 Lamp connectors


Total # Of Inputs 16 Total
Mic/Line Inputs 16 Line: 1/4″ TRS Phone

16 Microphone: 3-pin XLR

Stereo Line Inputs 2 Stereo: L/R Paired 1/4″ Phone Line & 3-pin XLR Microphone
In-Line Inputs/Returns No
AUX Sends 4 Aux Sends
AUX Returns 4 Stereo Returns
Inserts 1/4″ TRS Phone – Mono Inputs, Main Output and Subgroup Outputs
BUS (Group) Outputs 2 Subgroups: Balanced 3-pin XLR
2 Trk Master I/O Mix L/R: Stereo Paired 3-pin XLR Balanced and 1/4″ Phone
ALT I/O ALT Stereo: L/R Stereo Paired 1/4″ Output
Monitor Outputs Monitor: L/R Stereo Paired 1/4″ TRS Phone
EQ Section High Filter: 13kHz, +/- 15dB, 2nd order shelving

Hi-Mid: 550Hz – 13khz, +/- 15dB, Q=1.5

Lo-Mid: 80Hz – 1.9kHz, +/- 15dB, Q=1.5

Low Filter: 80Hz, +/- 15dB, 2nd order shelving

Solo/Mute All Input Channels
Channel Level Control 100mm Faders
Trim/Gain Control Rotary Potentiometers
Phantom Power +48V Phantom individually switched
Metering 12-segment LED bar graphs
Frequency Response 20Hz to 20kHz <1dB
Dynamic Range Not Specified by Manufacturer
Signal-to-Noise Ratio Measured RMS, 22Hz to 22kHz Bandwidth

-128dBu Mic E.I.N. @ unity gain, 150 ohms source impedance

Total Harmonic Distortion (THD) <0.006%Mic sens. -30dBu, +20dBu at all outputs @ 1kHz
Power Supply Internal AC PSU – 85V, 270V AC, 50/60Hz universal input

Power Consumption

Less than 150W

Dimensions (WxHxD) 31.10 x 6.24 x 25.81″ (790 x 159 x 656mm)
Weight Not Specified By Manufacturer
Packaging Info
Package Weight 51.5 lb
Box Dimensions (LxWxH) 36.0 x 31.0 x 12.0″
