ลำโพง YAMAHA VS4 Surface Mount Speakers 4″
ลำโพงติดผนัง Yamaha VS4 เป็นตู้ลำโพง 2 ทาง, ขนาดดอกลำโพง 4 นิ้ว (100mm) cone driver, เสียงแหลม 1″ (25mm) balanced dome tweeter, ทนกำลังขับ 60 วัตต์ ( MAX ) rms, 8 โอหม์ ตอบสนองความถี่ที่ 100 Hz–20 kHz
กำลังปรับราคา….รอ update นะคะ…หรือติดต่อเราได้เลยค่ะ…..
฿4,000.00 ฿3,520.00
Description

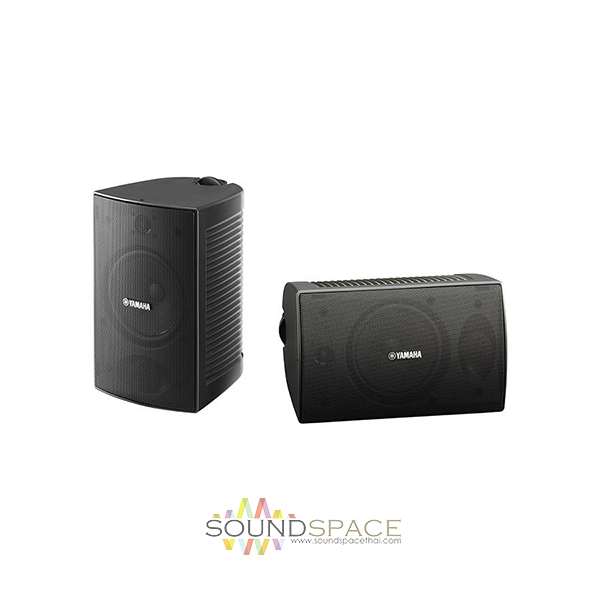

Yamaha VS4 Surface Mount Speakers
ลำโพงติดผนัง Yamaha VS4 เป็นตู้ลำโพง 2 ทาง, ขนาดดอกลำโพง 4 นิ้ว (100mm) cone driver, เสียงแหลม 1″ (25mm) balanced dome tweeter, ทนกำลังขับ 60 วัตต์ ( MAX ) rms, 8 โอหม์ ตอบสนองความถี่ที่ 100 Hz–20 kHz
A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration. Let the VS Series be the perfect complement to your sonic needs.
Features:
- Compact surface mount speakers with superior sound quality and sleek, functional design.

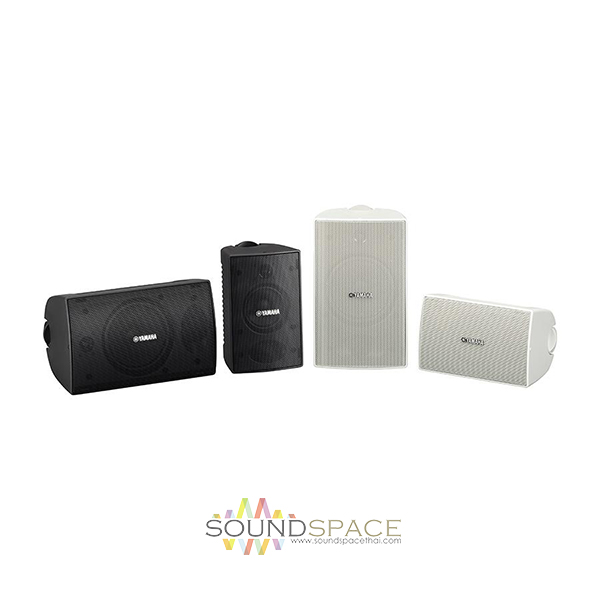

- Series comprises two models: the VS6 (6.5″ woofer) and VS4 (4″ woofer) – both models feature a 1″ balanced dome tweeter and are available in Black or White.
- Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage.
- Internally mounted transformers allowing operation in 70V or 100V distributed sound systems.
- Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation.
- Paintable enclosure and grill to match any decor.
- Overload protection circuit provided to protect speaker components.
Specifications
| Frequency response | -10dB | 100Hz – 20kHz |
|---|---|---|
| Nominal coverage | H | 110 |
| V | 110 | |
| Components | LF | 4″(100mm) cone driver |
| HF | 1″(25mm) balanced dome tweeter | |
| Crossover | 15kHz | |
| Power rating | NOISE | 15W |
| PGM | 30W | |
| PEAK | 60W | |
| Nominal impedance | 8Ω | |

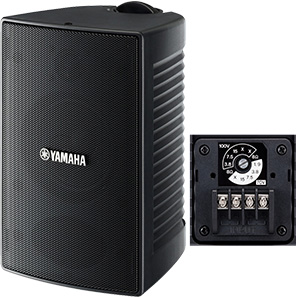

| Transformer taps | 100V | 15W, 7.5W, 3.8W |
| 70V | 15W, 7.5W, 3.8W, 1.9W | |
| SPL | Sensitivity (1W; 1m on axis) | 88dB SPL |
| Peak (Calculated) | 106dB SPL (60W) | |
| I/O connectors | 2 pairs of barrier strip (parallel-wired *Screw size: M3, Terminal Space: 6mm) | |
| Shape | Rectangular | |
| Cabinet material | HIPS, 94-HB | |

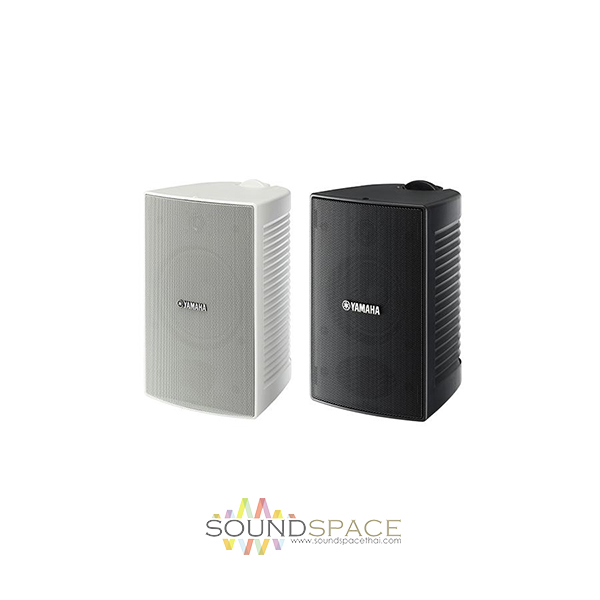

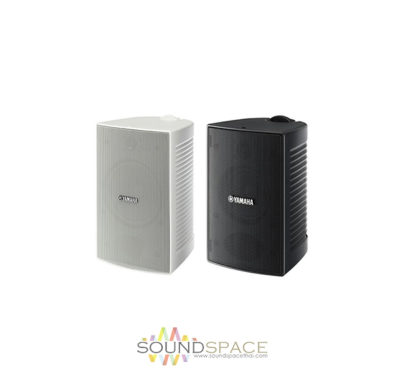

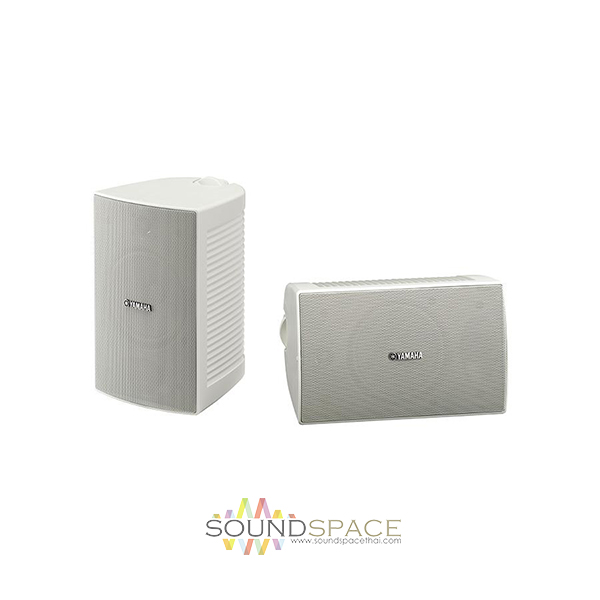

| Finish | VS4: Black, VS4W: White | |
| Flying and mounting hardware | U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes) | |
| Waterproof | IEC60529 IPX3 splash proof rating | |
| Dimensions | W | 152 mm (6″) |
| H | 243 mm (9 9/16″) | |
| D | 172 mm (6 3/4″) | |
| Net weight | 1.9kg (4.2lbs) | |
| Accessories | U-bracket, Owner’s Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS | |
