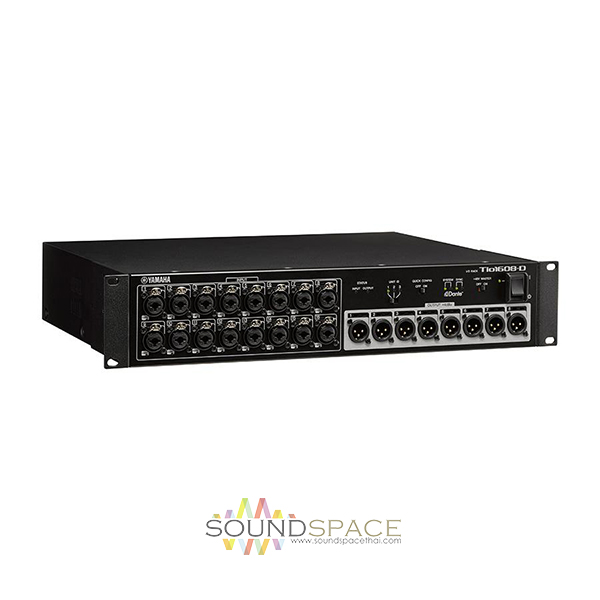

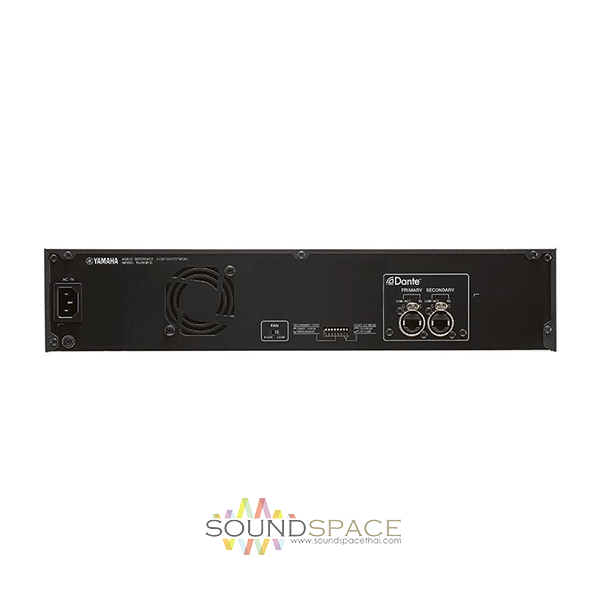

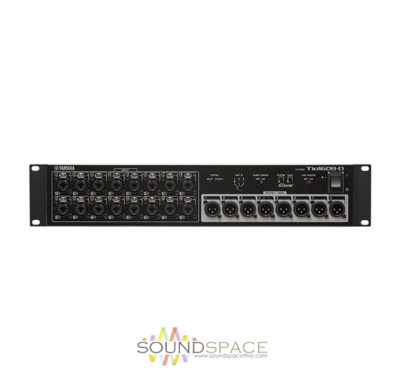

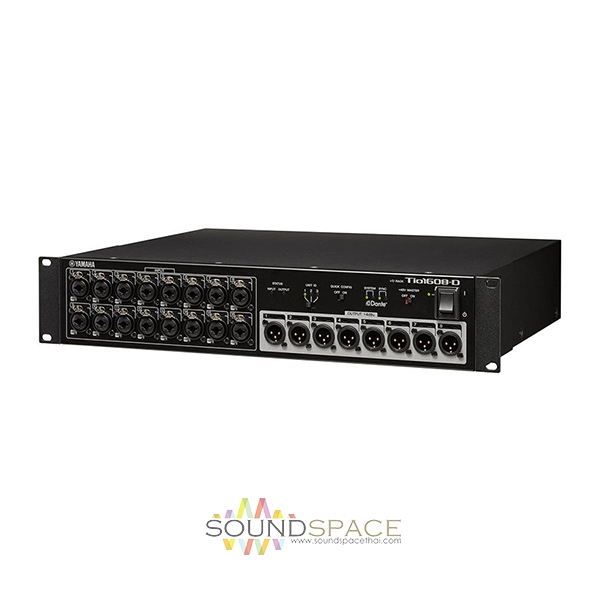

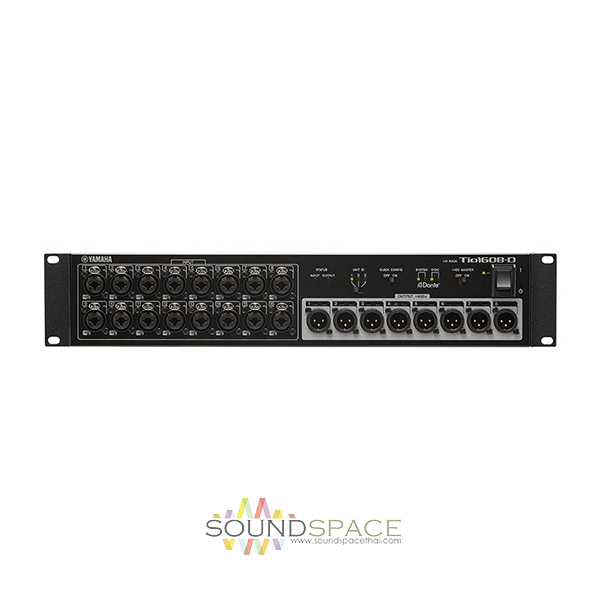

สเตจบ๊อก Yamaha Tio1608-D 16-in/8-out Stage Box with 16 Microphone Preamplifiers, 8 Line Outputs, and Dante Digital Connectivity, Supports 48V Phantom Power, 2x CAT5e LAN Ports (Primary & Secondary), Quick Config Automates TF-Series Setup
Plug In & Play Dante Stagebox Solution
The Tio1608-D is a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs. Tio racks feature the same recallable D-PRE™ microphone preamplifiers as the TF series delivering extraordinarily natural and musical sound. In combination with TF series consoles, Tio racks can be connected using up to three units with a fast and easy setup. * Optional NY64-D Card is required.

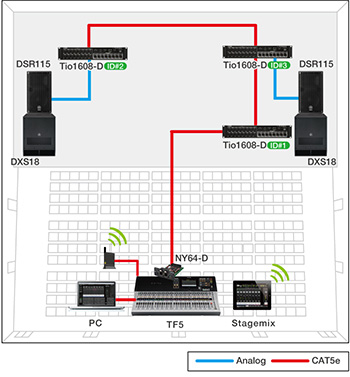

Flexible system expansion via Dante
Dante Network Audio Protocol has been adopted, not only in TF, but also in other Yamaha digital mixing consoles such as CL/QL. Combining these I/O racks and the various consoles can significantly increase the flexibility of system designs. Patching can be enabled via “Dante Controller” while Remote HA can be controlled by “R Remote” software.
Audio patching and Remote HA can be controlled not only from TF but also from CL/QL.
* Please note that Remote HA of the Tio1608-D can be implemented only via the Primary port. Remote HA control of Tio1608Dis not available on the secondary network, even when you are using with TF or CL/QL.
Features:
Digital stage box for Yamaha TF series consoles
16 high-quality mic preamps are controllable from your console
Connect up to 3 simultaneously for 48 inputs and 24 outputs
Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)
Specifications
General specifications
Tio1608-D
Sampling frequency rate
External
44.1kHz or 48kHz
Total harmonic distortion
Less than 0.1% +4dBu@20Hz-20kHz into 600Ω, Gain=+66dB / Less than 0.05% +4dBU@20Hz-20kHz into 600Ω, Gain=-6dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18dB/octave filter @80kHz
Frequency response
+0.5, -1.5dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT, Fs=44.1kHz or 48kHz
Dynamic range
108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter
Hum & noise level
Equivalent input noise
-128dBu, Gain=+66dB *Measured with A-weighting filter
Residual output noise
-88dBu, ST master off *Measured with A-weighting filter
Crosstalk
-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB *Measured with a -30dB/octave filter @22kHz
Heat dissipation
100-240V, 50/60Hz, 43.5kcal/h
Power requirements
100-240V, 50/60Hz
Power consumption
50W
Dimensions
W
480mm (18-7/8″)
H
88mm (3-4/8″)
D
364mm (14-3/8″)
Net weight
5.7kg (12.6lbs)
Accessories
Owner’s Manual, Power Cord(2.5m), Rubber stoppers(4)
Others
Temperature Range: Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃
Analog Input Characteristics
Input Terminals
GAIN
Actual Load
Impedance
For Use With
Nominal
Input Level
Connector
Balanced /
Unbalanced
Sensitivity*1
Nominal
Max. before clip
INPUT1-16
+66dB
7.5kΩ
50-600Ω Mics &
600Ω Lines
-82dBu (61.6μV)
-62dBu (0.616mV)
-42dBu (6.16mV)
Combo Jack (XLR-3-31 type *2
or TRS phone *3)
Balanced
-6dB
-10dBu (245mV)
+10dBu (2.45V)
+30dBu (24.5V)
In these specifications, 0dBu = 0.775Vrms.
+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain.
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
Analog Output Characteristics
Output Terminals
Actual Source
Impedance
For Use With
Nominal
Output Level
Connector
Balanced /
Unbalanced
Nominal
Max. before clip
OUTPUT 1-8
75Ω
600Ω Lines
+4dBu (1.23 V)
+24dBu (12.3V)
XLR-3-32 type*1
Balanced
In these specifications, 0dBu = 0.775Vrms.
*1.1: GND,2: HOT, 3: COLD
Digital Input & Output Characteristics
Terminal
Format
Data length
Level
Audio
Connector
Primary/Secondary
Dante
24bit or 32bit
1000Base-T
16ch ( Tio1608-D to other devises)
8ch (Other devises to Tio1608-D)
