มิกเซอร์ Yamaha TF-Rack Digital Rackmount Mixer

มิกเซอร์อนาล็อคแบบเข้าแร็ค Yamaha TF-Rack Rackmount Digital Mixer with Built-in Touchscreen, 16 Mic Preamps, 16 Line Outputs, 8 DCA Groups, 1-knob Compressor/EQ, and DSP Effects, 34×34 Recording to Computer via USB 2.0, Optional Tio1608-D I/O Rack

ราคาไม่รวมภาษีมูลค่าเพิ่ม

฿105,000.00 ฿94,500.00

สอบถามและสั่งซื้อสินค้า

Description

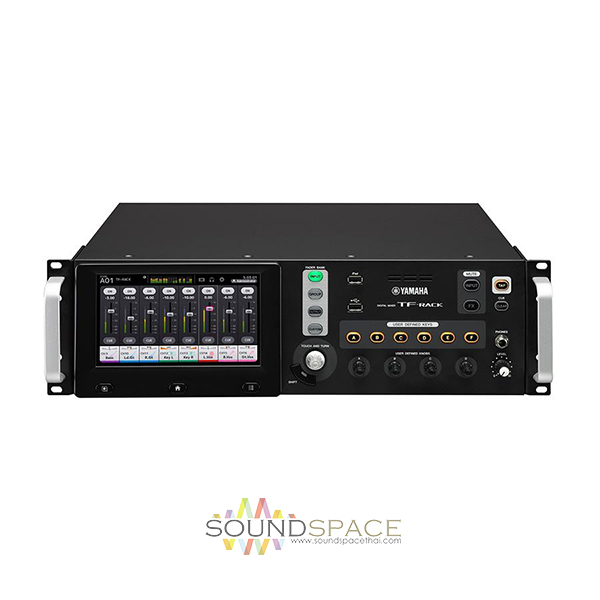

Yamaha TF-Rack Digital Mixing Console

มิกเซอร์อนาล็อคแบบเข้าแร็ค Yamaha TF-Rack Rackmount Digital Mixer with Built-in Touchscreen, 16 Mic Preamps, 16 Line Outputs, 8 DCA Groups, 1-knob Compressor/EQ, and DSP Effects, 34×34 Recording to Computer via USB 2.0, Optional Tio1608-D I/O Rack

The Yamaha TF-Rack is a rack-mountable digital audio mixing console that features a touchscreen display, and is expandable up to 40 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF-Rack can also be used for live recording, offering 34×34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2×2 channel recording and playback using any USB storage device.

The TF-Rack console itself provides 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as an analog RCA stereo line input, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression. The TF-Rack ships with Steinberg’s Nuendo Live for advanced multi-tracking and virtual sound check capabilities.

Features:

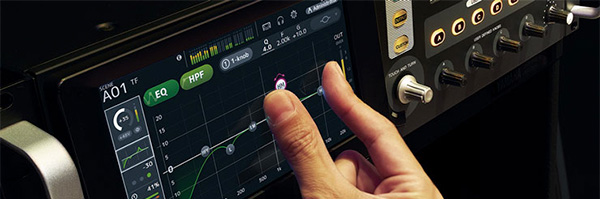

  • TouchFlow Operation maximizes workflow efficiency
  • 1-knob compression and EQ dial in your ideal sound
  • GainFinder supports precision gain setup
  • QuickPro presets provide instant access to pro sound setups
  • 2 scene memory banks set up and instantly recall your settings
  • 16 D-Pre mic preamps deliver phenomenal sound
  • Onboard effects based on Yamaha’s SPX processor
  • TF Editor Mac/PC application offers offline editing and online control
  • TF StageMix iPad application provides wireless control
  • TF MonitorMix iOS application allows for wireless personal monitoring
  • Expansion slot for optional NY64-D card (expands up to 64 inputs and 40 outputs)

Specifications

Outline TF-RACK
Mixing Capacity Input Channels 40 (32 mono + 2 stereo + 2 return)
Aux Buses 20 (8 mono + 6 stereo)
Stereo Buses 1
Sub Buses 1
Input channel functions 8 DCA Groups
I/O Inputs 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
Outputs 16 (8 XLR + 8 TRS phone)
Expansion slots 1 (for NY64-D)
On-board processors DSP 8 Effects + 10 GEQ
General specifications TF-RACK
Sampling frequency rate Internal 48 kHz
Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements 100–240 V 50/60 Hz
Power consumption 85 W
Dimensions W 480 mm (18-7/8 in)
H 132 mm (5-1/4 in)
D 409 mm (16-1/8 in)
Net weight 9.2 kg (20.3lb)
Accessories Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubber stoppers(4)
Options Audio Interface Card (NY-64D), Foot Switch (FC5)
Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

Recording/ Playback

PC/Mac (USB2.0) Recording 34 tracks, Playback 34 tracks
USB Storage Device Recording 2 tracks (USB hard drive/ SSD)*, Playback 2 tracks (USB hard drive/ SSD/ thumb drive)

*Please note – USB thumb drives are not supported by TF for recording purposes. Please refer to this link for compatible hard drives.

Analog input characteristics

Input Terminals GAIN Load
Impedance
For Use With
Nominal
Input Level Connector balanced /
Unbalanced
Sensitivity*1 Nominal Max. before clip
INPUT1-16 +66dB 7.5KΩ 50-600Ω Mics
or 600Ω Lines
-82dBu (61.6μV) -62dBu (0.616mV) -42dBu (6.16mV) Combo Jack (XLR-3-31 type *2
or TRS phone *3)
Balanced
-6dB -10dBu (245mV) +10dBu (2.45V) +30dBu (24.5V)
ST IN 10kΩ 600Ω Lines -30dBV (31.6μV) -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*4. In these specifications, 0dBu = 0.775Vrms.
*5. +48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

Analog output characteristics

Output Terminals Source
Impedance
For Use With
Nominal
Output Level Connector balanced /
Unbalanced
Nominal Max. before clip
OMNI OUT 1-8 75Ω 600Ω Lines +4dBu (1.23 V) +24dBu (12.3 V) XLR-3-32 type *1 Balanced
OMNI OUT 9-16 TRS Phone Jack *6
PHONES *5 100Ω 40Ω Phones 3mW 75mW Stereo Phone Jack (TRS) *2 Unbalanced

*1. 1: GND, 2: HOT, 3: COLD
*2. Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3. In these specifications, 0dBu = 0.775Vrms.
*4. All output DA converters are 24bit, 128times oversampling.
*5. The position of the level control is lowered by 16dB from the maximum.
*6. Tip: HOT, Ring: COLD, Sleeve: GND

Digital input/output specifications

Terminals Format Data length Audio Connector
USB (TO HOST) USB 24bit 34ch input / 34ch output, PCM USB (B type)
iPad USB Playback: MP3 or WAV file data / Record: WAV file data USB (A type)

Control I/O specifications

Terminals Format Level Connector
NETWORK IEEE802.3 10BASE-T/100Base-TX RJ-45
FOOT SW TS Phone
