เพาเวอร์แอมป์ YAMAHA PX8 Power Amplifier

เครื่องขยายเสียง YAMAHA PX-Series PX8, 800W per Channel at 8 Ohms, Class-D Amplifier, Digital Routing of Inputs & Outputs, PEQ, Crossover, Filters, Delay, D-Contour Multi-Band Dynamic Processing


฿37,000.00 ฿29,600.00

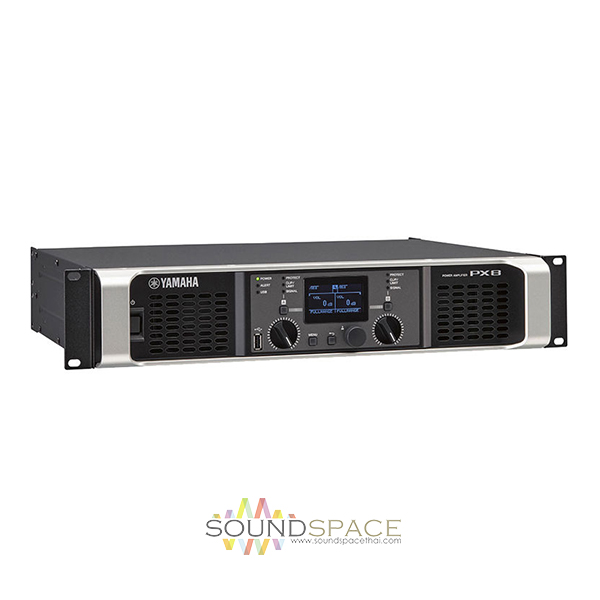

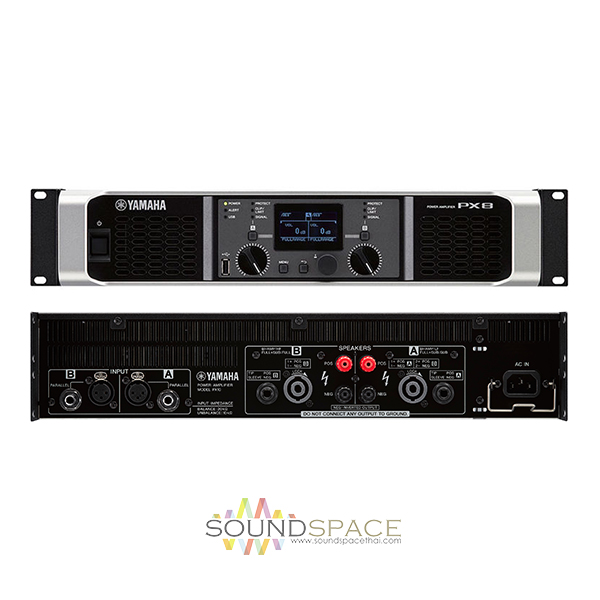

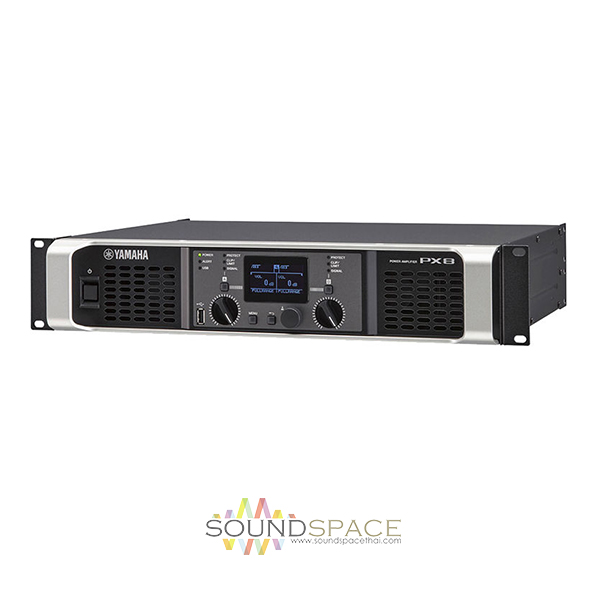

Yamaha PX8 Stereo Power Amplifier (800W at 8 Ohms)

เครื่องขยายเสียง YAMAHA PX-Series PX8, 800W per Channel at 8 Ohms, Class-D Amplifier, Digital Routing of Inputs & Outputs, PEQ, Crossover, Filters, Delay, D-Contour Multi-Band Dynamic Processing

The Yamaha PX8 Stereo Power Amplifier delivers 800W at 8 Ohms in a lightweight chassis and is suitable for a wide variety of sound-reinforcement applications. Part of the company’s PX Series of power amplifiers, it features a Class-D engine with a single custom LSI chip, and uses PLL technology for higher efficiency and lower noise.

The on-board DSP functions include a PEQ, a delay, a crossover, and a limiter. They allow for detailed configuration of parameters such as input & output routing, input sensitivity, amp gain, and speaker impedance. The D-Control multi-band dynamic processor delivers a clear and consistent sound at any output level by shaping the frequency response of each speaker for either front-of-house or monitor configurations.

The Configuration Wizard helps save time during setup by assigning optimized speaker settings that match your system configuration. It can be used in basic mode for quick setup or advanced mode for more precise control over DSP parameters. You can store up to eight presets, which can be saved to a USB drive for use with other amplifiers and setups.

For secure operation, the panel-locking function ensures that your settings remain safe. With its sturdy frame and carrying handle, the PX8 is built to withstand extended road use.



  • Class-D amplifier engine with single custom LSI chip and PLL technology
  • Configuration Wizard allows for configuration of the system by assigning optimized speaker settings which can be saved as presets
  • Digital routing of inputs & output (dual, parallel, single & SUM)
  • DSP functions include PEQ, crossover, filters, delay & limiter, accessed via an LCD display
  • D-Contour multi-band dynamic processing shapes the frequency response of speakers for specific applications
  • Basic mode for quick setup and Advanced mode for more precise control
  • Flexible connectivity with XLR & 1/4″ TRS inputs and binding post, SpeakON & 1/4″ TS outputs
  • Presets can be saved to USB drive for use with other amplifiers and setups
  • Panel-locking function to keep settings safe
  • Two 16-step variable-speed fans
  • Lightweight chassis


Output Power 800 W per channel at 8 Ohms
1050 W per channel at 4 Ohms
600 W per channel at 2 Ohms
Amplifier Type Class-D, balanced output circuit (BLT)
THD + N 0.1% at 1 kHz, 10 W
0.3% at 1 kHz, half power
Frequency Response 20 Hz to 20 kHz, ±1.0 dB (1 W at 8 Ohms)
Crosstalk ≤ -60 dB
S/N Ratio 101 dB
Voltage Gain / Sensitivity At 8 Ohms, Maximum Volume:

32.0 dB / +8.3 dBu (Gain Setting: 32 dB)
26.0 dB / +14.3 dBu (Gain Setting: 26 dB)
36.3 dB / +4 dBu (Gain Setting: 4 dB)
26.3 dB / +14 dBu (Gain Setting: 14 dB)

Cooling 2 x 16-step variable-speed fan (front-to-rear flow)
Maximum Input Voltage +24 dBu
Input Impedance 20 kOhms (Balanced)
10 kOhms (Unbalanced)
Sampling Frequency 48 kHz
Converters A/D: 24-bit linear, 128 times over-sampling
D/A: 24-bit linear, 128 times over-sampling
Signal Processing
  • Input summing
  • D-contour: FOH / MAIN
  • Monitor
  • OFF
  • Delay: 0 to 74 ms
  • HPF / LPF: cutoff frequency 20 Hz to 20 kHz with polarity control
  • Speaker Processor: 6-band PEQ / limiter / delay


Latency 1.5 ms (analog input to speaker)
User Presets 8 user presets
Factory Presets Speaker presets for Yamaha passive speakers
Connectors Analog Input
2 x XLR-3-31
2 x 1/4 TRSSpeakers
2 x Neutrik SpeakOn NL4
2 x pairs of binding posts
2 x 1/4″ TS1 x AC inlet with AC cord clamp1 x USB 2.0 Type-A (female)
AC Power Requirements 120 VAC / 60 Hz
Power Consumption 280 W at 4 Ohms, 1/8 maximum power
60 W at 4 Ohms, Idle
Operating Temperature 32 to 104°F / 0 to +40°C
Storage Temperature -4 to 140°F / -20 to +60°C
Dimensions (W × H × D) 18.90 x 3.46 x 15.25″ / 480 x 88 x 387.4 mm
Weight 15.87 lb / 7.2 kg
Packaging Info
Package Weight 20.5 lb
Box Dimensions (LxWxH) 21.75 x 21.75 x 7.5″
