ดิจิตอลมิกเซอร์ MGX12 B (Black) ขนาดพกพาแบบสีดำ, 4 Combo XLR-1/4″ Mic/Line Inputs, Dual USB 18×18 Rec/Play + 2×2 Rec/Play, Bluetooth Audio Input, MicroSD Recording, Smart Gain + Studio Quality FX, Built-In Compression and EQ per Ch
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…
฿35,500.00
ดิจิตอลมิกเซอร์ MGX12 B (Black) ขนาดพกพาแบบสีดำ, 4 Combo XLR-1/4″ Mic/Line Inputs, Dual USB 18×18 Rec/Play + 2×2 Rec/Play, Bluetooth Audio Input, MicroSD Recording, Smart Gain + Studio Quality FX, Built-In Compression and EQ per Ch

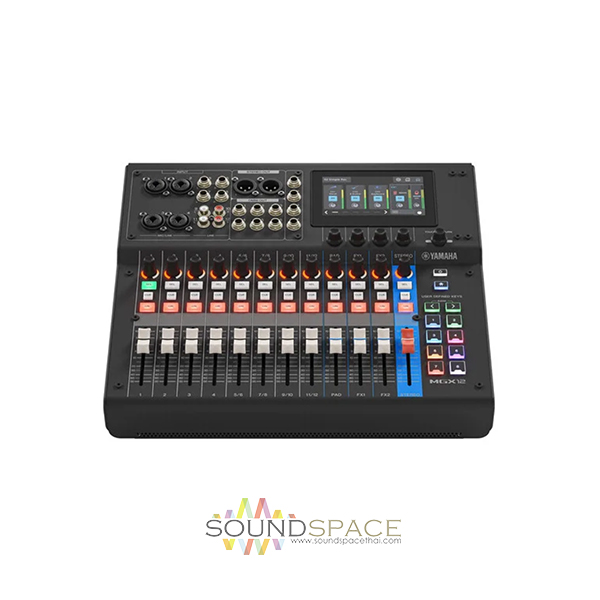

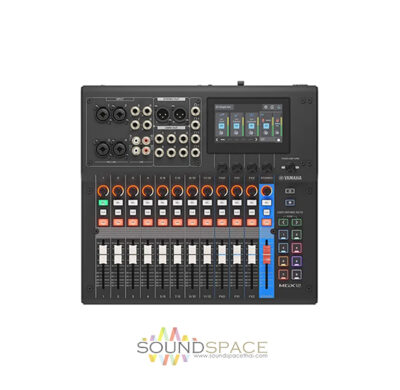

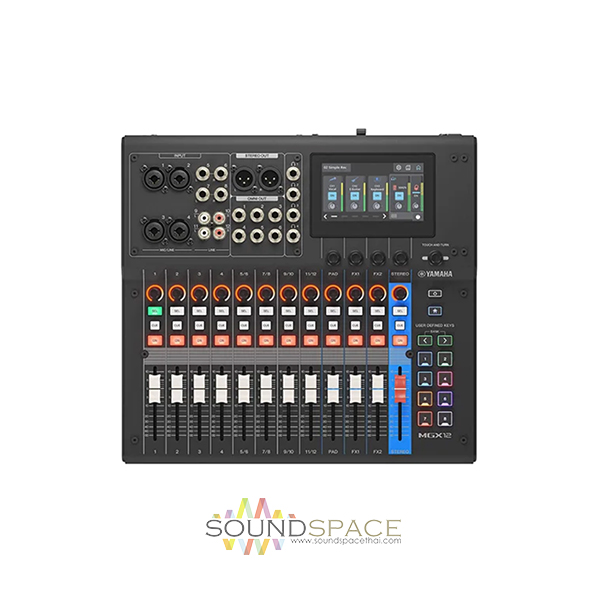

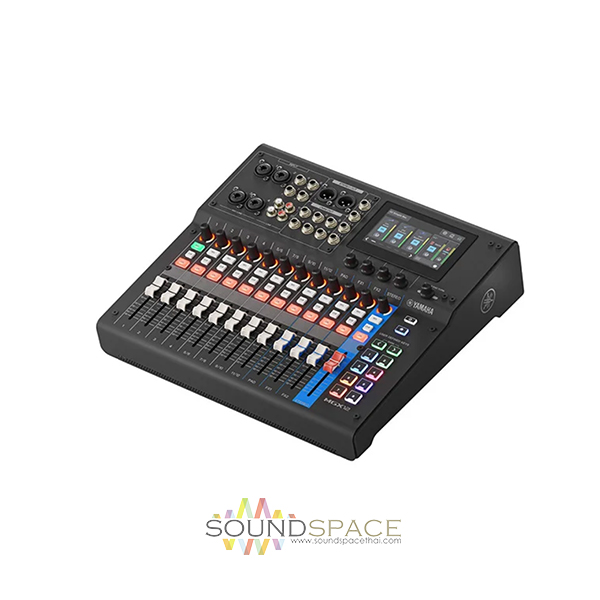

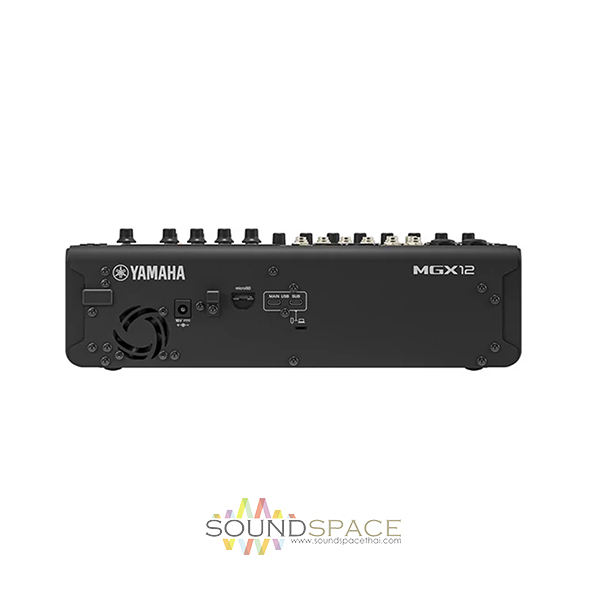

The MGX12 B 18-Channel Digital Mixing Console from Yamaha builds on the legacy of the well-established and appreciated MG series, adding digital capabilities and a host of features that make it a great choice for live and installed sound, podcast/live streaming, recording, production, and many more audio/video applications.
Designed to be operated quickly and intuitively through its touch-panel GUI with 4.3″ Touchscreen with 5 Control Knobs, a comprehensive selection of I/O options allow the user to design the system from the bottom up for any usage purpose.
Sound quality is bolstered by MGX preamps with 86 dB of gain range, and an included software bundle that features studio mainstays Cubase, Wavelab, and more. Ensure your event goes off as smoothly as possible with assistive additions like Automix, Clip Safe, and scene recall.
Whether in clubs, convention centers, or houses of worship, the MGX quickly accommodates a wide range of audio and video production situations, with the quality and durability that users expect from Yamaha.
| Max I/O Capacity |
16x Input / 8x Output
|
| Number of Analog Input Channels |
16
|
| Number of Mic Preamps |
4
|
| Number of Analog Output Channels |
8
|
| Mix Routing |
1x Main LRC
2x Bus 1x FX Return |
| Presets |
Yes
|
| Display |
Main Display:
4.3″ Touchscreen |
| Faders & Level Adjustment |
12 Fader
|
| Meters |
12x LED
|
| Gain/Trim Range |
Up to +86 dB
|
| EQ |
No
|
| Graphic EQ |
Yes
|
| Solo/Mute |
Solo, Solo-in-Place/AFL, Mute, PFL per Input Channel
|
| Built-In Effects |
13x Stereo Effect (Type Unspecified)
|
| Audio Delay |
Yes
|
| Automatic Mic Mixing |
Yes
|
| Sample Rates |
Up to 96 kHz
|
| Frequency Response |
20 Hz to 20 kHz (at 1 kHz)
|
| Analog Dynamic Range |
125 dB at Min Gain
115 dB at Min Gain |
| THD |
Mic Input:
< 0.002% at Min Gain (+4 dBu) |
| Signal Generator |
Yes
|
| Analog Inputs |
4x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
4x 1/4″ TRS Balanced/Unbalanced Stereo Line Input 4x RCA Coaxial Stereo Line Input |
| Analog Outputs |
2x XLR 3-Pin Balanced Stereo Main Output
8x 1/4″ TRS Balanced/Unbalanced Stereo Output |
| Phantom Power |
+48 V
|
| Digital I/O |
No
|
| MIDI I/O |
No
|
| USB I/O |
2x USB-C
|
| Wireless |
No
|
| External Display I/O |
No
|
| Max Multitrack Recording |
18 Tracks
|
| Media Support |
SD, USB Drive
|
| Max Media Storage Capacity |
1 GB
|
| OS Compatibility |
macOS 15 or Later / Windows 11 or Later
|
| RAM Requirements |
4 GB
|
| Input Power |
100 to 240 VDC
|
| Rack Mountable |
Yes
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Dimensions |
13.2 x 12.5 x 3.8″ / 33.5 x 31.8 x 9.7 cm
|
| Weight |
8.6 lb / 3.9 kg
|
