Sale

เพาเวอร์มิกเซอร์ YAMAHA EMX2 Power Mixer

เครื่องผสมสัญญาณเสียงแบบมีกำลังขยาย เพาเวอร์มิกเซอร์ YAMAHA EMX2 500 W Power Amplifier 4-Mono Mic/Line Inputs, 3-Stereo Inputs, 3-Band EQ on Each Channel, Built-In Reverb

ราคาไม่รวมภาษีมูลค่าเพิ่ม

฿22,000.00 ฿17,600.00

สอบถามและสั่งซื้อสินค้า

Description

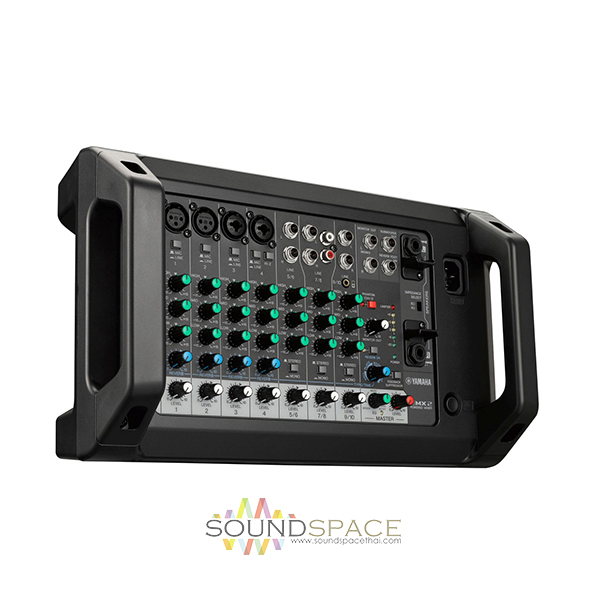

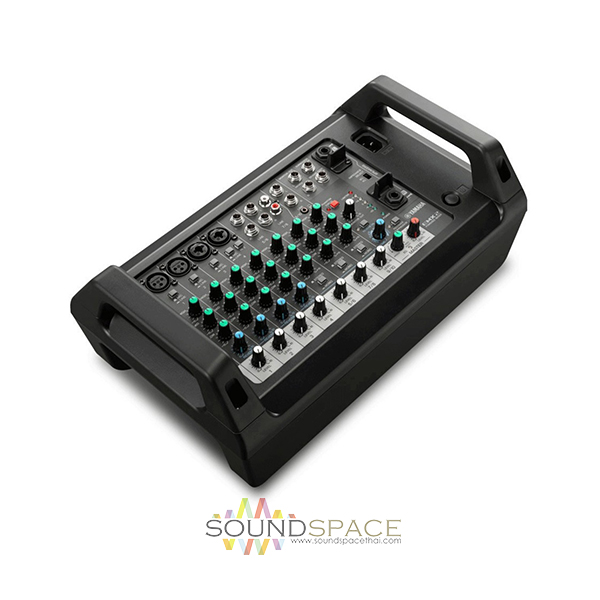

Yamaha EMX2 10-Input Powered Mixer

เครื่องผสมสัญญาณเสียงแบบมีกำลังขยาย เพาเวอร์มิกเซอร์ YAMAHA EMX2 500 W Power Amplifier 4-Mono Mic/Line Inputs, 3-Stereo Inputs, 3-Band EQ on Each Channel, Built-In Reverb

The Yamaha EMX2 is a 10-input powered mixer with an integrated 500W amplifier, four mic/line inputs, three stereo line inputs, and an independent monitor bus. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1/2 offer XLR inputs, while channels 3/4 include an XLR-1/4″ combo jack. Channels 5 through 10 provide 1/4″ inputs, with channel 7/8 offering an additional set of stereo RCA inputs. Channel 9/10 also include an 1/8″ stereo mini-jack for connecting portable music players.

The EMX2 includes an integrated feedback suppressor and built-in reverb with SPX series algorithms. Additionally, the mixer offers a Master EQ, which provides a single knob to control the level of low end. At the far left, the speech setting cuts low frequencies, while the middle position is neutral for music playback. The far right setting provides a Bass Boost to enhance music playback. There are a number of optional accessories available including a foot switch for reverb bypass, a rack-mount kit, and a microphone stand adapter. The EMX2 ships with a standard IEC power cord.

yamaha_emx2_power-mixer_3

Features:

  • 500-watt power amplifier for versatility in a wide variety of performance applications
  • Compatible with 4 Ohm and 8 Ohm speakers
  • 10-channel mixer with four mono mic/line and three stereo line input channels, supporting a wide range of inputs
  • Channel 4 offers a Hi-Z input for guitar
  • Independent monitor output
  • Yamaha’s high-quality SPX reverb, providing optimum processing for instruments or vocals
  • Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise
  • Independent three-band equalizer on each channel for tonal adjustment and sound control
  • Master EQ with setting for speech and music playback

Specifications

Analog Input Characteristics
Input Connectors Channels 1/2: 2x XLR
Channels 3/4: 2x Combo XLR-1/4″ / 6.35 mm
Channels 5/6: 2x 1/4″ / 6.35 mm
Channel 7/8: 2x 1/4″ / 6.35 mm or 2x RCA
Channel 9/10: 2x 1/4″ / 6.35 mm or 1x 1/8″ / 3.5 mm stereo mini-jack
Load Impedance Channel 1-4 (XLR): 3 kOhms actual, 150 Ohms nominal with mics
Channel 3/4 (1/4″, Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
Channel 3/4 (1/4″, Hi-Z Disengaged): 3 MOhms actual, 150 Ohms lines nominal
Channels 5/6 to 9/10: 10 kOhms actual, 150 Ohms lines
Input Level Sensitivity
Channel 1-4 (XLR, Mic): -56 dBu (1.228 mV)
Channel 1-4 (XLR, Line): -30 dBu (24.51 mV)
Channel 3/4 (1/4″, Mic): -50 dBu (2.451 mV)
Channel 3/4 (1/4″, Line): -24 dBu (48.90 mV)
Channels 5/6 to 9/10: -24 dBu (48.90 mV)Nominal
Channel 1-4 (XLR, Mic): -35 dBu (13.78 mV)
Channel 1-4 (XLR, Line): -9 dBu (275.0 mV)
Channel 3/4 (1/4″, Mic): -29 dBu (27.50 mV)
Channel 3/4 (1/4″, Line): -3 dBu (548.7 mV)
Channels 5/6 to 9/10: -3 dBu (548.7 mV)Maximum Before Clip
Channel 1-4 (XLR, Mic): -10 dBu (245.1 mV)
Channel 1-4 (XLR, Line): +16 dBu (4.890 V)
Channel 3/4 (1/4″, Mic): -4 dBu (489.0 mV)
Channel 3/4 (1/4″, Line): +22 dBu (9.757 V)
Channels 5/6 to 9/10: +22 dBu (9.757 V)
Analog Output Characteristic
Output Connectors Monitor L/R: 1/4″ / 6.35 mm phone jack (impedance balanced)
Subwoofer Out: 1/4″ / 6.35 mm phone jack (impedance balanced)
Impedance Actual Source Impedance: 150 Ohms
For use with Nominal: 10 kOhms lines
Output Level Monitor Out L/R: +4 dBu (1.23 V) nominal, +20 dBu (7.75 V) max before clip
Subwoofer Out: -3 dBu (0.55 V) nominal, +17 dBu (5.49 V) max before clip
Loudspeaker Outputs
Connectors Speakers L/R: 1/4″ / 6.35 mm phone jack
Impedance Actual Source Impedance: < 0.1 Ohms
For Use with Nominal: 4 Ohm speakers, 8 Ohm speakers
Output Level 4 Ohm Speakers: 110 W (1 Hz THD+N < 1%), 250 W (1 kHz THD+N < 10% [CEA2006])
8 Ohm Speakers: 110 W (1 Hz THD+N < 1%), 170 W (1 kHz THD+N < 10% [CEA2006])
General Specifications
Output Power 1 kHz THD+N < 10% (CEA2006): 250 W + 250 W (4 Ohms), 170 W + 170 W (8 Ohms)
1 kHz THD+N < 1%: 110 W + 110 W (4 Ohms), 110 W + 110 W (8 Ohms)
Frequency Response Frequency Response Refer to the nominal output level @ 1 kHz
Input to Speakers: +1/-4 dB (40 Hz to 20 kHz)
Input to Monitor Out: +0.5/-1.5 dB (20 Hz to 20 kHz)
THD + N Input to Speakers: 0.2% @ 13.8 W (40 Hz to 20 kHz), 0.4% @ 23.2 W (1 kHz)
Input to Monitor Out: 0.05% @ +10 dBu (20 Hz to 20 kHz), 0.009% @ +20 dBu (1 kHz)
EIN Equivalent Input Noise: -115 dBu
Residual Output Noise Input to Speakers: -68 dBu (40 Hz to 20 kHz, Master: min) Input to Monitor Out: -99 dBu (20 Hz to 20 kHz, Monitor: min)
Crosstalk (1 kHz): -80 dB
Input Channels Mono (Mic/Line): 4
Stereo: (Line): 3
Total: 10
Output Channels Speakers: L/R
Monitor Out: L/R
Subwoofer Out
Bus Stereo: 1
Bus: 1
Pad Channels 1-4: 26 dB
Hi-Z Input Channel 4: Supported
EQ Section High: 8 kHz +15/-15 dB
Mid: 2.5 kHz +15/-15 dB
Low: 100 Hz +15/-15 dB
Audio Level Meter 6 points (-20, -6, 0, +3, +6, LIMITER)
Built-in Effects SPX Algorithm: Reverb 4 programs
Output Channel Function Master EQ (Speech to Music)
Feedback Suppressor
Phantom Power Channels 1, 2: +30 V
Footswitch Input Reverb: Effect mute on/off
Protection Load Protection: DC-fault
Amplifier Protection: Over heat protection, over current protection
Power Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption: 35 W (Idle) / 90 W (1/8 power)
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (W × H × D) 14.8 x 5.8 x 8.7″ / 37.6 x 14.7 x 22.1 cm
Weight 9.3 lb / 4.2 kg
Packaging Info
Package Weight 12.55 lb
Box Dimensions (LxWxH) 17.6 x 11.9 x 10.4″
