ลำโพง YAMAHA DZR15 Powered Loudspeaker 15″
ลำโพงแบบมีกำลังขยายในตัว Yamaha DZR15 เป็นลำโพงแบบ 2-WAY มีกำลังขับ Bi-Amp 2000 วัตต์ Class-D Amplifier, ขนาดดอกลำโพง 15 นิ้ว เสียงแหลม 2 นิ้ว, Built-In 96 kHz DSP with FIR Filters, Max SPL 139 dB, D-CONTOUR Multi-Band Compressor
ราคาไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿62,000.00 ฿52,700.00
Description
Yamaha DZR15 2-Way Powered Loudspeaker 15″ 2000W
ลำโพงแบบมีกำลังขยายในตัว Yamaha DZR15 เป็นลำโพงแบบ 2-WAY มีกำลังขับ Bi-Amp 2000 วัตต์ Class-D Amplifier, ขนาดดอกลำโพง 15 นิ้ว เสียงแหลม 2 นิ้ว, Built-In 96 kHz DSP with FIR Filters, Max SPL 139 dB, D-CONTOUR Multi-Band Compressor, Designed for FOH/Main & Floor Monitor

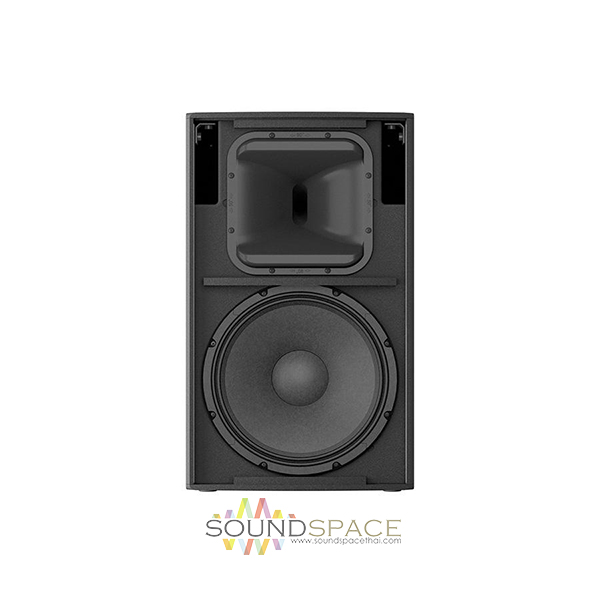

The Yamaha DZR15 is a 2-way powered loudspeaker designed for main/FOH and floor monitor applications. The 2000W Class-D bi-amp powers the 15″ woofer and 2″ compression driver, which combine to provide a frequency range of 34 Hz to 20 kHz (-10 dB) with a maximum SPL of 139 dB. The rotatable horn allows for vertical or horizontal mounting to further adapt the acoustic dimensions of a venue. The constant directivity horn was designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.
The on-board 96 kHz DSP processor utilizes Advanced FIR filters for the crossover network and corrective EQ. With the FIR filters, the DZR15 is able to produce a smooth frequency response for remarkable clarity and sound imaging without phase distortion. The onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and adjust PEQ, delay, and routing. The D-CONTOUR is an intelligent multi-band compressor that ensures the DZR15’s sound stays consistent and clear no matter how hard you drive them.
The FOH/Main mode boosts the lower frequencies to compensate for low-end that is typically lost when flying speakers, while the Monitor mode is optimized for floor monitoring application by taming problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to deliver the clarity professionals demand from their stage monitors.

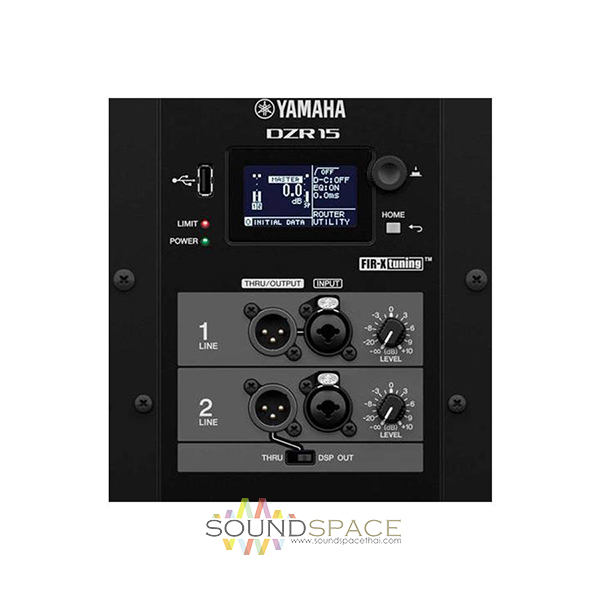

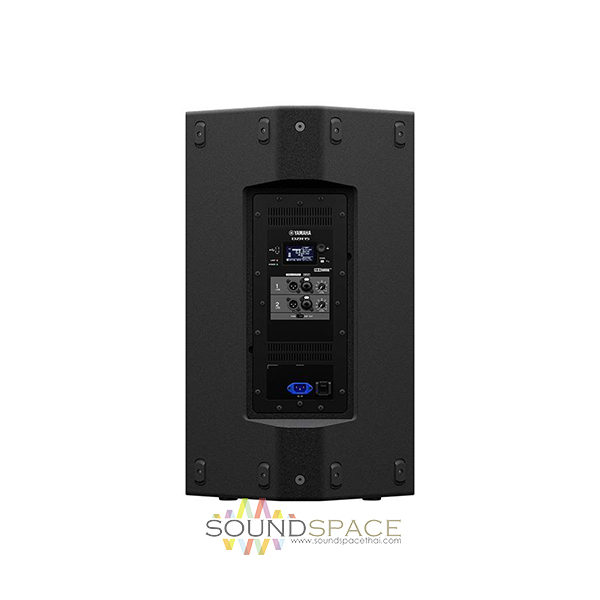

The rear panel offers two combo XLR-1/4″ inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The Yamaha DZR15 ships with a standard IEC power cord.
Features:
- 2-way powered loudspeaker with a 2” HF and a 15″ LF
- Maximum 139dB SPL and 34Hz-20kHz frequency range is ideal for today’s professional audio demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR15)
- Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
Specifications
| System Type | 2-way, bi-amped powered speaker, bass-reflex |
| Frequency Range | 34 Hz to 20 kHz (-10 dB) |
| Coverage Angle | H/V: 90 x 50° (rotatable) Floor Monitor: 50° symmetrical |
| Components | LF: 15.0″ / 381.0 mm cone, 3.0″ / 76.2 mm voice coil, neodymium magnet HF: 1.0″ / 25.4 mm throat compression driver, 2.0″ / 50.8 mm voice coil, titanium diaphragm, neodymium magnet |
| Crossover | 1.7 kHz (FIR-X) |
| Sample Rate | 96 kHz and FIR filter |
| SPL | Maximum Output Level (on axis, 3.3′ / 1 m): 139 dB |
| Power Rating | Dynamic: 2000 W (LF: 1000 W, HF: 1000 W) Continuous: 1300 W (LF: 920 W, HF: 380 W) |
| Connectors | Analog In: 2 x combo XLR-1/4″ / 6.35 mm Line Level: Maximum +24 dBu Input Impedance: 20 kOhmsAnalog Out: 2 x XLR Ch1: Thru (fix) Ch2: Thru or DSP out |
| USB | USB 2.0: Host 5 V 500 mA, for USB memory DATA storage/load |
| AC Input | AC Input Connector: 1 x IEC AC inlet (V-Lock) |
| Amplifier Type | Class-D |
| Cooling | Fan cooling, variable speeds |
| Power Consumption | Idle: 45 W 1/8 Power: 150 W |
| Handles | 2 x aluminum die-cast |
| Rigging Points | 12 x M10 |
| Enclosure Material | Plywood, durable poly-urea coating, black |
| Pole Socket | 2 x Φ 1.4″ / 35.0 mm (0° or -7°) |
| Dimensions (W × H × D) | 17.7 x 30.0 x 18.1″ / 449.6 x 762.0 x 459.7 mm |
| Weight | 55.6 lb / 25.2 kg |
