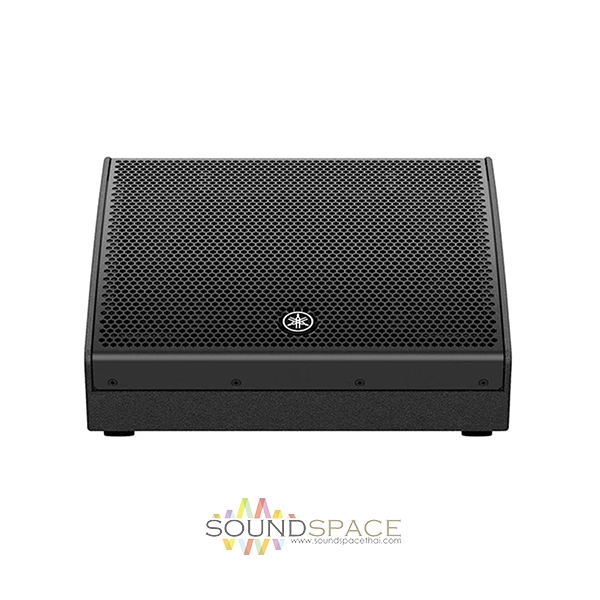

ตู้ลำโพงมอนิเตอร์ YAMAHA DHR12M Active Floor Monitor 12″
ลำโพงมอนิเตอร์บนเวทีสำหรับงานแสดงสด YAMAHA DHR12M เป็นลำโพงแบบมีกำลังขยายในตัว 2 ทาง Active Floor Monitor, ขนาดดอกลำโพง 10 นิ้ว Woofer, เสียงแหลมขนาด 1.4 นิ้ว Compression Driver, ทนกำลังขับ 465 วัตต์ RMS, 1000 วัตต์ Peak, Plywood Construction + FIR-X DSP
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿36,000.00 ฿31,680.00
Description
YAMAHA DHR12M 2-Way Coaxial 12″ Active Floor Monitor
ลำโพงมอนิเตอร์บนเวทีสำหรับงานแสดงสด YAMAHA DHR12M เป็นลำโพงแบบมีกำลังขยายในตัว 2 ทาง Active Floor Monitor, ขนาดดอกลำโพง 10 นิ้ว Woofer, เสียงแหลมขนาด 1.4 นิ้ว Compression Driver, ทนกำลังขับ 465 วัตต์ RMS, 1000 วัตต์ Peak, Plywood Construction + FIR-X DSP

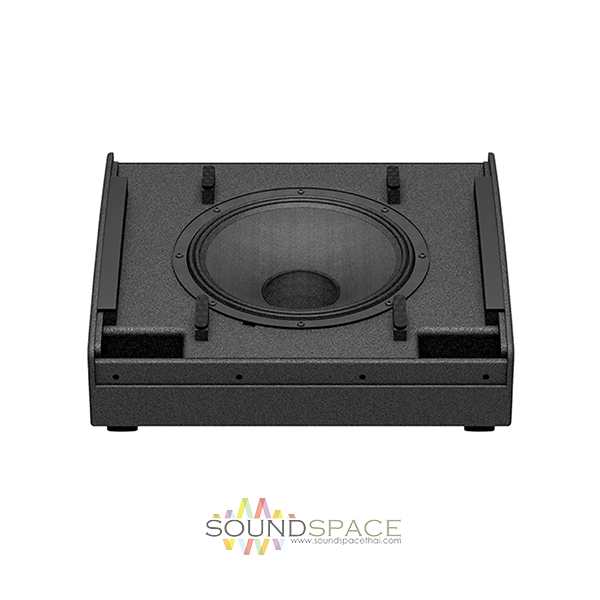

The DHR12M is a 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor.
Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.
Features:
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
- A pole socket for use on a stand
- Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Specifications
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor |
| Total Power Capacity | 465 W RMS 1000 W Peak |
| Amplifier Power Rating | HF: 1 x 200 W LF: 1 x 800 W |
| Amplifier Class | Class-D |
| HF Driver | 1 x 1.75″ / 44.45 mm Horn-Loaded Compression Driver with 1″ / 25 mm Throat |
| MF Driver | None |
| LF Driver | 1 x 12″ / 304.8 mm Woofer |
| LF Voice Coil | 2.5″ / 63.5 mm |
| Magnet | Ferrite |
| Frequency Range | 55 Hz to 20 kHz -10 dB |
| Maximum SPL | 129 dB |
| Coverage Angle | 90° H x 90° V |
| Protections | DC Fault, Output Limiter, Overcurrent, Overvoltage, Power Supply, Thermal |

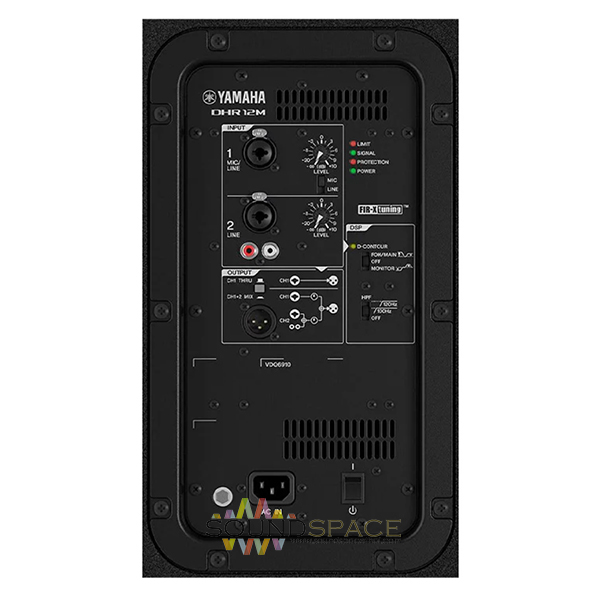

| Audio I/O | 1 x Combo speakON-1/4″ 3-Pin Female Balanced/Unbalanced Mic/Line Input 1 x Combo XLR-1/4″ 3-Pin Female Balanced/Unbalanced Line Input 1 x Stereo RCA TS Female Unbalanced Line Input 1 x XLR 3-Pin Male Balanced Line Thru/Output |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | None |
| Crossover | 1.8 kHz |
| EQ | None |
| Parametric EQ | None |
| Semi-Parametric EQ | None |
| Alignment Delay | None |
| Phase Adjustment | None |
| Digital Signal Processing | Venue Settings |
| Max Sample Rate/Resolution | 48 kHz / 24-Bit |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC Input |
| Power Consumption | 18 W (Idle) 74 W (1/8 Power) |
| Mounting | 1 x 1.4″ / 35 mm Pole Socket (Bottom, Side) |
| Monitor Angle | 57° |
| Handles | 1 x Side |
| Construction Material | Perforated Metal Grille, Plywood, Polyurethane |
| Dimensions | 19.7 x 17.9 x 13.5″ / 500.4 x 454.7 x 342.9 mm |
| Weight | 36.4 lb / 16.5 kg |
