ลำโพง YAMAHA CBR12 Passive Loudspeaker 12″
ลำโพงแบบไม่มีกำลังขยายในตัว YAMAHA CBR12 เป็นตู้ลำโพง 2 ทาง passive system, ขนาดดอกลำโพง 12 นิ้ว LF Driver, เสียงแหลม 1″ HF Driver, ทนกำลังขับ 700 วัตต์ ( MAX ), ตอบสนองความถี่ 48 Hz – 20 kHz, I/O connectors 1/4″ Phone x 1, speakON NL4MP x 1
ราคาไม่รวมภาษีมูลค่าเพิ่ม…เป็นราคาใบละ…
฿19,000.00 ฿16,720.00
Description

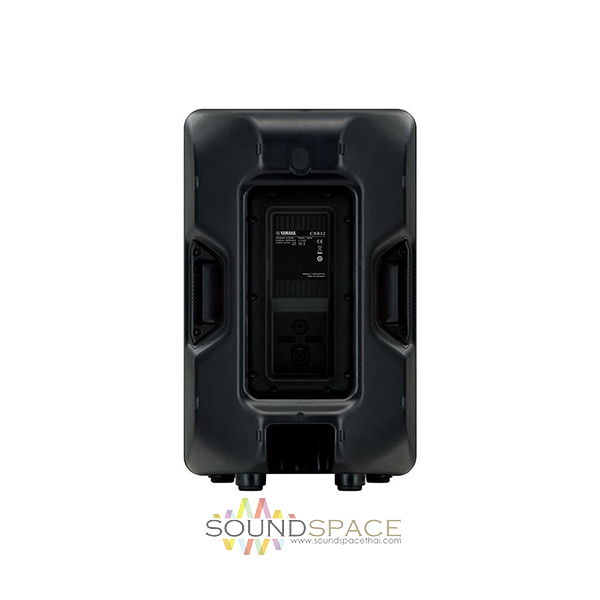

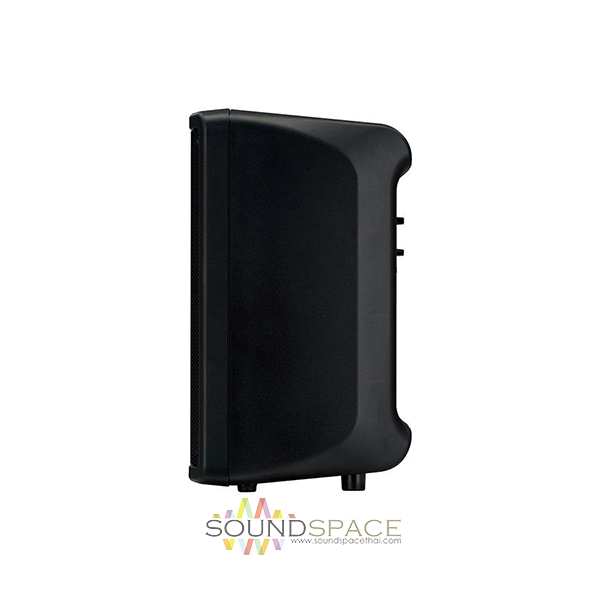

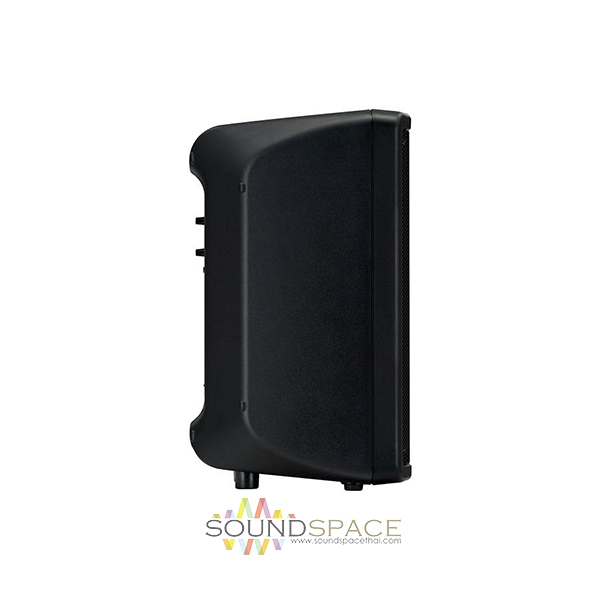

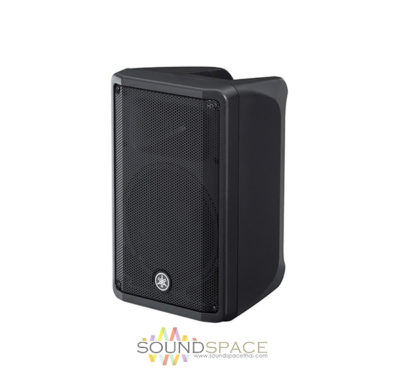

Yamaha CBR12 Passive Loudspeaker
ลำโพงแบบไม่มีกำลังขยายในตัว YAMAHA CBR12 เป็นตู้ลำโพง 2 ทาง passive system, ขนาดดอกลำโพง 12 นิ้ว LF Driver, เสียงแหลม 1″ HF Driver, ทนกำลังขับ 700 วัตต์ ( MAX ), ตอบสนองความถี่ 48 Hz – 20 kHz, I/O connectors 1/4″ Phone x 1, speakON NL4MP x 1
Expect rich, clear sound and reliable performance from the Yamaha CBR12 passive loudspeaker. With a respectable 350-watts of RMS power handling, and 96dB SPL sensitivity, these loudspeakers boast impressive performance for their compact, portable nature.
Live sound engineers at Musicspace especially appreciate the CBR12’s HF-protection circuit, which prevents speaker damage from excessive input.
We also dig the smart form factor, which lets you use the CBR12 as either a mains speaker or on its side as a floor monitor. However you use it, expect stellar sound and performance you can trust with the Yamaha CBR12 passive loudspeaker.
Features:
- Passive loudspeaker with lightweight plastic cabinet
- Impressive 350W RMS power handling
- 1/4″ and speakON inputs for flexible connectivity
- HF-protection circuit prevents tweeter damage due to excessive signal levels
- Highly-sensitive LF driver puts out full bass even at lower volumes
Specifications
| Speaker type | 2-way Speaker, Bass-reflex Type | |
|---|---|---|
| Frequency range (-10dB) | 48 Hz – 20 kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | 12″ Cone, 2″ Voice Coil (Ferrite Magnet) |
| HF | 1.4″ Voice Coil, Compression Driver (Ferrite Magnet) | |
| Crossover | 2.1 kHz | |
| Power rating | NOISE | 175W |
| PGM | 350W | |
| PEAK | 700W | |
| Nominal impedance | 8Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 96dB SPL |
| Peak (Calculated) | 125 dB SPL | |
| I/O connectors | 1/4″ Phone x 1, speakON NL4MP x 1 | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Side x 2 | |
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | |
| Pole socket | Φ35 mm Bottom x 1 | |
| Dimensions | W | 376mm (14.8″) |
| H | 601mm (23.7″) | |
| D | 348mm (13.7″) | |
| Net weight | 13.9 kg (30.6 lbs) | |
