Signal Processor SYMETRIX Jupiter 4 DSP

อุปกรณ์ช่วยปรับแต่งสัญญานเสียง SYMETRIX Jupiter 4 DSP Turn-Key Audio Processing Solution, Ethernet & Logic Outputs x 4, External Control Inputs x 2, ARC Ports x 2, Uses Downloadable “Apps”, 4in/4out, Mic/Line Inputs with Phantom Power

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿66,600.00 ฿53,200.00

สอบถามและสั่งซื้อสินค้า

Description

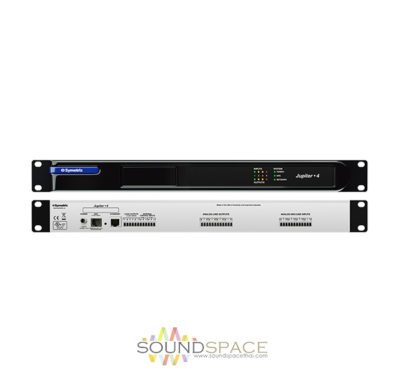

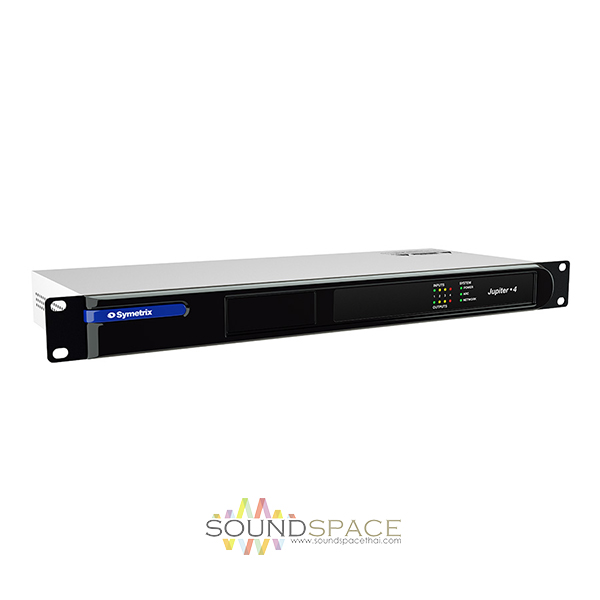

SYMETRIX Jupiter 4 App Configurable 4 x 4 DSP

อุปกรณ์ช่วยปรับแต่งสัญญานเสียง SYMETRIX Jupiter 4 DSP Turn-Key Audio Processing Solution, Ethernet & Logic Outputs x 4, External Control Inputs x 2, ARC Ports x 2, Uses Downloadable “Apps”, 4in/4out, Mic/Line Inputs with Phantom Power

The Symetrix Jupiter 4 App Configurable 4 x 4 DSP features a turn-key audio processing solution with a zero learning curve. It uses “apps” the same way a smartphone does. There are applications for mixing and routing, public address and distribution, sound reinforcement, and special purpose signal processing. By using pre-designed apps, users greatly reduce setup and installation time. Each app does a specific audio job and the library of downloadable Jupiter apps is ever-growing, which ensures your hardware is future-proof.

Features:

  • Turn-Key Audio Processing Solution
  • Uses Downloadable “Apps”
  • Several App Categories Available
  • Mixing, Routing & Sound Reinforcement
  • Public Address & Distribution
  • Special Purpose Signal Processing
  • Mic/Line Inputs with Phantom Power
  • Ethernet & Logic Outputs x 4
  • External Control Inputs x 2
  • ARC Ports x 2

Key Features:

  • Pre-designed apps greatly reduce setup and installation time
  • A turn-key audio processing solution utilizing downloadable ‘apps’ optimized for specific venues and systems
  • App categories include mixing and routing, public address and distribution, sound reinforcement, and special purpose signal processing
  • Features 4 mic/line inputs with phantom power and 4 line outputs
  • Ethernet, dual ARC ports, dual external control inputs and four logic outputs
  • Jupiter brings you controllable and simple to use audio DSP. Engineered and built in the US by Symetrix

Hardware & Software

  • Each Jupiter hardware offering uses the same software and DSP processes
  • Just like using productivity apps on your smartphone, you use Jupiter apps to do specific audio jobs with a simple download to Jupiter hardware. Tap into one of the multiple personalities of Jupiter – no design time, zero learning curve. Jupiter handles every task, from automixing to loudspeaker management. Plus, the ever-growing library of downloadable Jupiter apps future-proofs your hardware investment

Specifications

Input
Inputs 4 switchable balanced mic or line level
Connectors 0.15″ (3.81mm) terminal blocks
Nominal Input Level Software Selectable: +4dBu mic level / -36dBu mic level (20dB headroom)
Gain +40dB (mic preamp gain)
Trim ±24dB (input)
Maximum Input Level +23dBu
Input Impedance >18K Ohms (balanced)
>9K Ohms (unbalanced)
>2K Ohms (phantom power engaged)
CMRR >50dB at 1kHz (unity gain)
EIN Mic Preamp EIN: <-125dBu / 22Hz – 22kHz (100 Ohms source impedance)
Phantom Power +20V DC (20mA max per input)
Output
Outputs 4 line level
Connectors 0.15″ (3.81mm) terminal blocks
Nominal Output Level +4dBu line level (20dB headroom)
Maximum Output Level +24dBu
Output Impedance 200 Ohms (balanced)
100 Ohms (unbalanced)
System
Sample Rate 48kHz
Frequency Response 20Hz – 20kHz (±0.5dB)
Dynamic Range >110dB A-weighted (input to output)
THD + Noise <-85dB unweighted (1kHz at +22dBu with 0dB gain)
Crosstalk Interchannel Crosstalk: <-90dB at 1kHz (typical)
Latency <1.6ms (input to output with all DSP inactive)
General
Power Supply AC 100 – 240V (50/60Hz)
Power Consumption 25W (max)
Dimensions (WxHxD) 18.91 x 1.72 x 7.5″ (48.02 x 4.37 x 19.05cm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 7.7 lb
Box Dimensions (LxWxH) 25.1 x 16.3 x 3.3″
