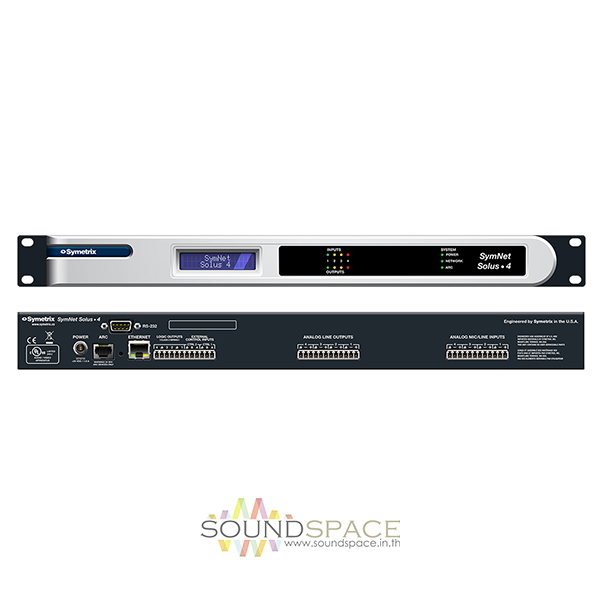

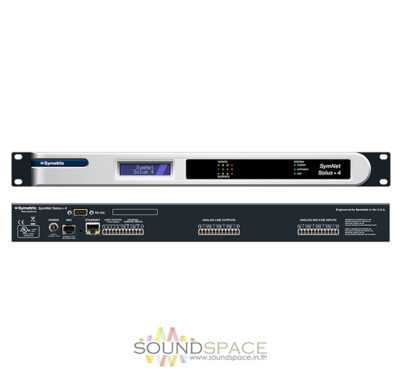

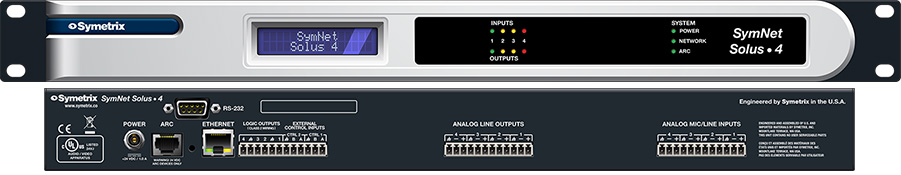

SYMETRIX SOLUS 4 Digital Signal Processor DSP 4in/4out
The Symetrix Solus 4 SymNet DSP Hardware is essentially a core audio routing, control logic and DSP processing matrix for fixed installation in commercial sound reinforcement applications, paging systems, background audio systems, professional sound reinforcement and more. The solus 4 features 4 mic/line inputs with phantom power and 4 outputs.
Its open architecture along with SymNet Designer software (free download) enable engineers to easily configure audio routing, control logic and DSP configurations for virtually any sound reinforcement scenario.
The Solus 4 features high-end audio compression and 3-band EQ to rival that of top competitors. Additional features include Ethernet, ARC port, RS-232 port, two external control inputs, and four logic outputs, comprehensive LCD display and rack mountable chassis.
The most powerful SymNet DSP hardware yet. Ideal for small to mid-size installations not requiring I/O expansion
Configured using open architecture SymNet Designer 10 to customize signal path and DSP modules
The most cost-effective SymNet solution to date
4 mic/line inputs and 4 outputs on Solus 4
Ethernet, ARC port, RS-232 port, two control inputs, and four logic output
Number of inputs: 4 switchable balanced mic or line level on Solus 4. Connectors: 3.81mm terminal blocks Nominal input level: +4dBu line or -36dBu mic level (software selectable) with 20dB of headroom. Mic Pre-amp gain: +40dB Input trim: +/- 24dB Maximum input level: +23dBu Input impedance: > 18 kΩ balanced, > 9 kΩ unbalanced, > 2 kΩ with phantom power engaged. CMRR: > 50dB @ 1kHz, unity gain. Mic Pre-amp EIN: < -125dBu, 22Hz – 22kHz, 100 Ω source impedance. Phantom Power: +20VDC, 20mA maximum per input.
Number of outputs: 4 line level on Solus 4 Connectors: 3.81mm terminal blocks Nominal output level: +4dBu line level with 20dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level. Maximum output level: +24dBu Output impedance: 200 Ω balanced, 100 Ω unbalanced
20Hz – 20kHz, +/- 0.5dB
> 110dB (A-Weighted), input to output.
< -85dB (un-weighted); 1kHz @ +22 dBu with 0dB gain
Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08cm, 2″ minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
18.91 x 7.5 x 1.72″ (48.02 x 19.05 x 4.37cm)
1 Rack Unit
