มิกเซอร์ BEHRINGER XENYX Q1202 USB Mixer

Name: มิกเซอร์ BEHRINGER XENYX Q1202 USB Mixer
Brand: BEHRINGER
SKU: 5044
Price: 5200.00 THB
Availability: InStock

฿5,200.00

มิกเซอร์ แบบอนาล็อค XENYX Q1202USB 4 mono ch with premium, phantom-powered XENYX mic preamps, neo-classic 3-band British-style EQ, plus 4 st ch

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: BEHRINGER

แชร์สินค้านี้: Facebook X LINE

Description

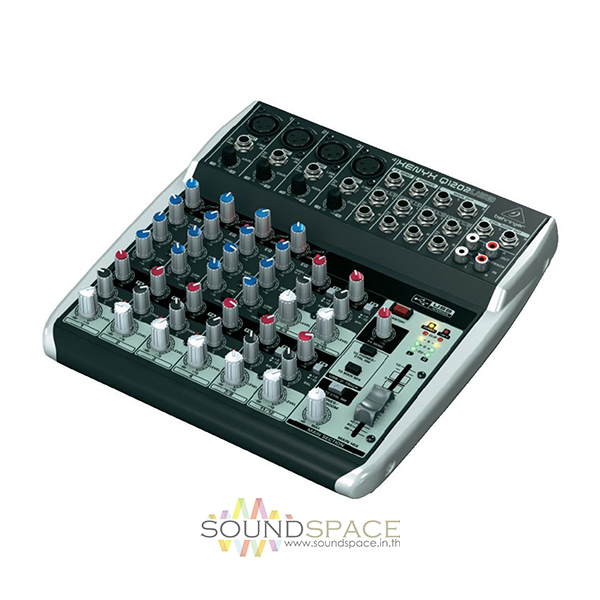

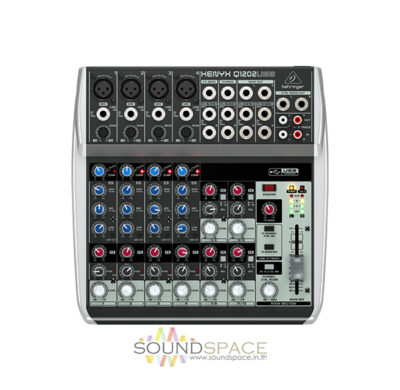

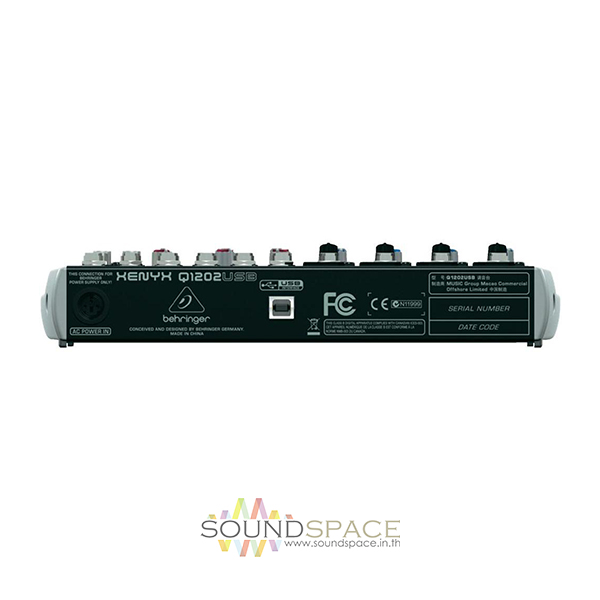

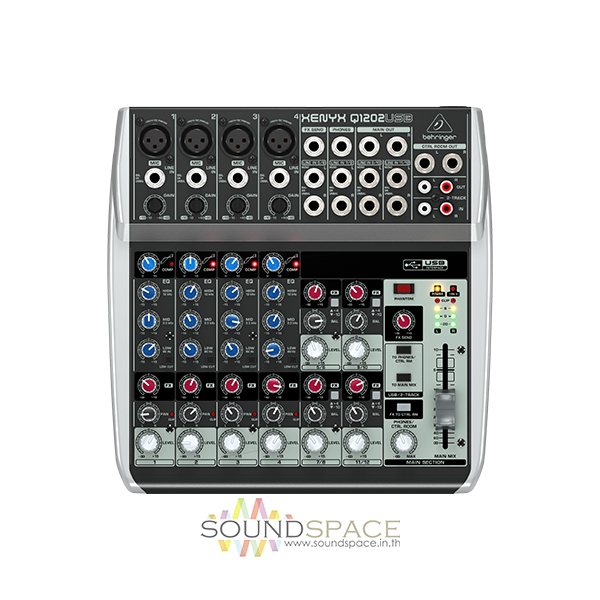

BEHRINGER XENYX Q1202 USB Mixer

มิกเซอร์ แบบอนาล็อค XENYX Q1202USB 4 mono ch with premium, phantom-powered XENYX mic preamps, neo-classic 3-band British-style EQ, plus 4 st ch

The Behringer XENYX Q1202USB is built for versatility and tone, and is equally at home at your live gig or in the studio. These compact mixers provide 4 mono channels with premium, phantom-powered XENYX mic preamps, neo-classic 3-band British-style EQ, plus 4 stereo channels. If you want it done quickly and need it to sound fantastic, you can count on the XENYX Q1202USB to get the job done.

Features:

Premium ultra-low noise, high headroom analog mixer
4 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
Studio-grade compressors with super-easy “one-knob” functionality and control LED for professional vocal and instrumental sound
Built-in stereo USB/Audio Interface to connect directly to your computer.
Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
Neo-classic “British” 3-band EQs for warm and musical sound
1 post fader FX send per channel for external FX devices
Main mix outputs plus separate control room, phones and 2-Track outputs
2-Track inputs assignable to main mix or control room/phones outputs
FX to control room function helps to monitor effect signal via headphones and control room outputs
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany

Specifications

Total # Of Inputs		12
Channels		4 mono 4 stereo
USB Audio		Type B connector 2 channels in / 2 channels out 48 kHz sample rate
Busses		Stereo mix buss, mono FX buss
Microphone Inputs
Type		XLR connector, balanced, discrete input circuit
Mic Preamps		4 x XENYX preamp
Equivalent Input Noise		-134 dB / -136 dB A-weighted @ 0Ω source resistance -131 dB / -133 dB A-weighted @ 50Ω source resistance -129 dB / -131 dB A-weighted @ 150Ω source resistance
Frequency Response		< 10 Hz to 150 kHz (-1 dB) < 10 Hz to 200 kHz (-3 dB)
Gain Range		+10 to +60 dB
Maximum Input Level		+12 dBu @ +10 dB Gain
Impedance		1.9kΩ
Signal-to-Noise Ratio		110 dB A-weighted (0 dBu In @ +22 dB gain)
THD + N		0.005% / 0.004% A-weighted
Phantom Power Supply		+48V
Line Inputs
Type		1/4″ TRS connector, balanced
Impedance		20kΩ, 10kΩ unbalanced
Gain Range		-10 to +40 dB
Maximum Input Level		+22 dBu @ 0 dB gain
Stereo Inputs
Type		Dual 1/4″ TRS connectors, balanced
Impedance		20kΩ, 10kΩ unbalanced
Gain Range		-20 to +20 dB
Maximum Input Level		+22 dBu
Tape/Media
Type		Dual RCA connectors
Input Impedance		18kΩ
Maximum Input Level		+22 dBu
Output Impedance		1kΩ
Maximum Output Level		+22 dBu
Equalizer
EQ Controls		3-band EQ on mono channels: Low: ±15 dB @ 80 Hz Mid: ±15 dB @ 2.5 kHz High: ±15 dB @ 12 kHz
AUX Section
Aux Sends		1/4″ TRS connector, balanced Impedance: 120Ω Maximum output level: +22 dBu
Main Outputs
Type		1/4″ TRS connector, balanced
Impedance		120Ω balanced
Maximum Output Level		+22 dBu
Control Room Outputs
Type		1/4″ TRS connector, balanced
Impedance		approx. 120Ω
Maximum Output Level		+22 dBu
Headphone Output
Type		1/4″ TRS stereo connector, unbalanced
Maximum Output Level		+21 dBu / 150Ω (+25 dBm)
Performance
Compressor		Independent compressor on each mono channel
Metering		4-LED per side
Faders		1 x 60 mm master fader
Noise		Main mix @ -∞, channel fader @ -∞ -106 dB / -109 dB A-weighted Main mix @ 0 dB, channel fader @ -∞ -93 dB / -96 dB A-weighted Main mix @ 0 dB, channel fader @ 0 dB -84 dB / -87 dB A-weighted
General
Power Consumption		20W
Dimensions (W x D x H)		9.8 x 9.8 x 2.0″ (250 x 248 x 50 mm)
Weight		3.3 lb (1.5 kg)
