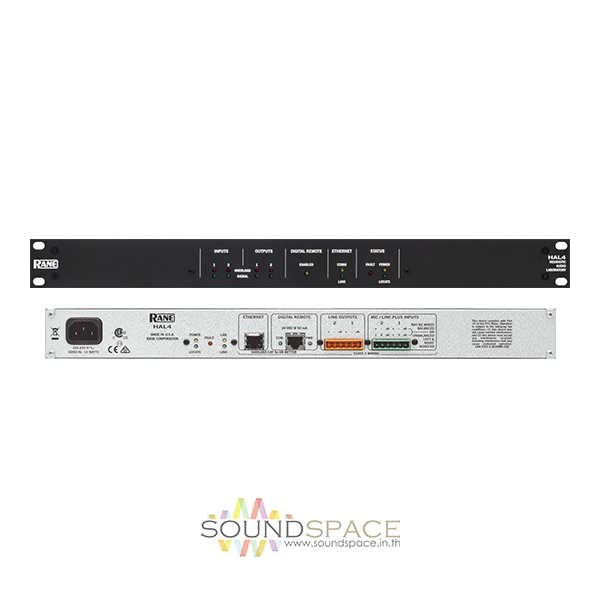

RANE HAL4 Multiprocessor

Name: RANE HAL4 Multiprocessor
Price: 41900.00 THB
Availability: InStock

อุปกรณ์ปรับแต่งเสียง HAL4 stand-alone 2-Input, 2-Output drag-and-drop DSP device for Halogen software. Inputs are Line / Line-Plus / Mic / Mic+48V capable

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

~~฿52,400.00~~ ฿41,900.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลโปรเซสเซอร์ ( DSP) Tag: RANE

Description

Rane HAL4 Programmable DSP Audio Distribution Multiprocessor

อุปกรณ์ปรับแต่งเสียง HAL4 stand-alone 2-Input, 2-Output drag-and-drop DSP device for Halogen software. Inputs are Line / Line-Plus / Mic / Mic+48V capable

The HAL4 Programmable DSP Audio Distribution Multiprocessor from Rane allows you to easily create a network of audio and paging zones. It has 2100 MIPS of processing power, and includes its own Halogen control software for Windows, which assists in everything from dynamic signal routing to cable testing.

The HAL4 provides two on-board analog inputs and outputs in Euroblock format. Each input supports a dynamic mic, 48V phantom mic, +4 dBu line-level, or Rane’s line-plus input. The line-plus mode accepts -10 dB unbalanced left/right monoed together on the “+” and “-” ports respectively. Line-plus also connects the stereo RCA left tip to the “+” terminal, the RCA right tip to the “-” terminal, and both RCA shields to the Euroblock ground.

The HAL4 offers a single DR remote port, which can control parameters such as volume, DSP presets, input source, and system states. The unit may be connected to the DR1, DR2, DR3 or DR6. Additionally, a DR4 or DR5 may be added for other logic inputs and outputs. The remote connects via CAT 5e cable at lengths up to 1000 feet (300 m).

The Halogen software enables complete control of all components networked to the HAL4 from an Ethernet-connected Windows-based PC. It’s indispensable in designing, configuring, and dynamically controlling your HAL audio system. It splits your workflow into two sections, hardware and processing. The hardware workspace allows you to see all connected devices, specify them, and troubleshoot. The processing workspace is where all the virtual patching, DSP effects processing, preset design/recall, zone link, and room combination settings take place. The system can also support external control systems, such as AMX, Crestron, and Stardraw. The HAL4 ships with the Halogen software and a standard IEC power cable.

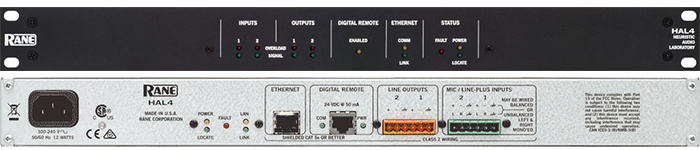

rane_hal4_Multiprocessor_1

Features:

2 mic/line/line-plus inputs x 2 line outputs
Configurable mic / line / line-plus inputs
+4 dBu balanced, mic or line level
+48V phantom available in mic mode
-10 dBv unbalanced, left/right monoed
Single Digital Remote (DR) port

Specifications

Analog I/O
Analog Audio I/O	2 x 2
Connectors	Euroblock: 4 x 6-pin, 5 mm pitch Green: Inputs Orange: Outputs
Codec	24-bit, 48 kHz

Inputs
Inputs	Input Impedance: 2.9 kOhms 1%, 1 kHz, each leg to ground Inter-Channel Isolation: >100 dB typical, 20 Hz to 20 kHz, unity gain, channel-to-channel CMRR: 55 dB minimum 1 kHz
Dynamic Microphone	Dynamic Mic Mode: Active balanced, microphone input mode without phantom power Gain: +30 to +50 dB typical, +30 dB (analog gain), 1 dB steps to +50 dB (digital gain) THD+N: < 0.005% typical 20 to 20k Hz, +4 dBu out, 0 dB digital gain Equivalent Input Noise -120 dBu typical, 20 to 20kHz, 150 ohm source, 30 dB gain Maximum Input: -18 dBv (125 mV RMS) typical, 1 kHz, < 0.01% THD+N Frequency Response: 20 Hz to 20 kHz, +0.0 / -0.3 dB, +4 dBu out, 100 kOhm load, Mic Input to Output
Condenser Microphone	Condenser Mic Mode: Active balanced, microphone input mode with 48V phantom power Gain: +18 to +38 dB typical, +18 dB (analog gain), 1 dB steps to +38 dB (digital gain) Phantom Power: +48 VDC, 10 mA max per input THD+N: < 0.005 % typical, 20 to 20 kHz, +4 dBu out, 0 dB digital gain Equivalent Input Noise: -110 dBu typical, 20 to 20 kHz, 150 Ω source, 18 dB gain Maximum Input: -6 dBv (500 mV RMS) typical, 1 kHz, < 0.01% THD+N Frequency Response: 20 Hz to 20 kHz, +0.0 / -0.3 dB, +4 dBu out, 100 kOhm load, mic input to output
Line+ Mode	Line+ Mode: Active summer, left (“+”) and right (“-“) signals summed to mono Gain: 0 to +20 dB typical, 0 dB (analog gain), 1 dB steps to +20 dB (digital gain) THD+N: < 0.007 % typical, 20 to 20 kHz, +4 dBu out, 0 dB digital gain Maximum Input: +14 dBu typical, 1 kHz, < 0.01% THD+N, each leg Frequency Response: 20 Hz to 20 kHz, +0.0 / -0.3 dB +4 dBu out, 100k Ω load, line-plus input to output Dynamic Range: (in to out) 108 dB max re +20 dBu, 20 kHz BW, A-weighted, Rs = 50 ohms
Line Mode	Line Mode: Active balanced, balanced line level input Gain: 0 dB typical, 0 dB (analog gain), 1 dB steps to +20 dB (digital gain) THD+N: < 0.005 % typical, 20 to 20 kHz, +4 dBu out, 0 dB digital gain Maximum Input: +14 dBu typical, 1 kHz, < 0.01% THD+N Frequency Response: 20 Hz to 20 kHz, +0.0 / -0.3 dB, +4 dBu out, 100 kOhm load, line input to output Dynamic Range (in to out): 108 dB maximum, re +20 dBu, 20 kHz BW, A weighted, Rs = 50 ohms

Output
Outputs	Active balanced
Impedance	200 ohms, 1%, each leg
Maximum Output	+20.0 / +15.5 dBu typical, 1 kHz, 100 kOhms / 600 ohms load

Indicators
Signal	-50 dBFS typical Green LED: Peak-reading, 250 ms hold time
Overload	-0.5 dBFS typical Red LED: Peak-reading, 250 ms hold time

Propagation Delays
Propagation Delay	Analog In to Analog Out: 2.2 ms typical

DSP
Processing Power	HAL4 Processing Power: 2100 MIPS maximum 1 DSPs @ 266 MHz each with up to 8 instructions / cycle
Word Length	32/64-bit floating point
Delay Memory	20 sec maximum

Computer Connections
Type	Ethernet 1000 base-T Zeroconf service discovery protocol for easy set up
Cable	Shielded CAT 5e or better, RJ45 connector
Length	Maximum 300′ / 100.0 m, standard Ethernet cable length limit

RAD / DR Ports
Ports	DR Ports: 1, RJ45 connector
Power	24 VDC @ 50 mA maximum
Length	Maximum: 1000′ / 300 m, shielded CAT 5e cable or better

General Specifications
Wiring	Class 2, all rear panel terminals
Power Requirement	100 to 240 VAC 50/60 Hz, 12 W maximum
Ambient Operating Temperature	113°F / 45°C, maximum external loading
Conformance	Unit Conformity: CE, FCC, CCSAUS
Dimensions (H x W x D)	1.8 x 19.0 x 8.3′ / 0.5 x 5.8 x 2.5 m
Weight	10.6 lb / 4.8 kg
