Ultra-High Precision Digital 24-Bit/96 kHz Loudspeaker Management System

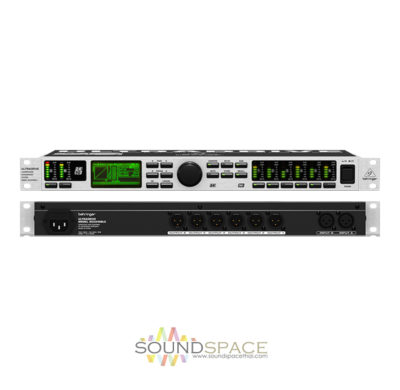

The Behringer DCX2496LE ULTRADRIVE 24-Bit/96kHz Digital Loudspeaker Management System is designed for live sound and installed sound applications. The 1RU unit features two servo balanced gold-plated XLR inputs and six servo balanced gold-plated XLR outputs. The processor utilizes 24-bit 96 kHz Cirrus Logic analog to digital and digital to analog converters as well as a 32-bit Analog Device Sharc DSP to provide selectable Butterworth, Bessel, or Linkwitz-Riley Crossovers with roll-offs from 6 to 48 dB/octave in four different mono and stereo output operating modes.
The processors also enable adjustable delays for all inputs and outputs, zero-attack limiters on all output channels, and level dependent dynamic EQs, parametric EQs, low pass, band pass, and high pass EQs for all inputs and outputs. Settings are controlled from a front panel LCD via a scroll wheel and system of buttons. Eight LED meters provide visual feedback of the input and output levels. The unit includes built-in memory for storing up to 60 presets for various applications.
2 analog inputs and 6 analog outputs for maximum flexibility
High-end 96 kHz converters for ultimate signal integrity and wide dynamic range (120 dB)
Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs
Several types of EQs (LP/BP/HP) for each input and output
“Zero”-attack Limiters on all output channels for optimal speaker protection
Four different mono and stereo output operating modes
Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave
Adjustable Delays for all inputs and outputs—allow manual or automatic correction for room temperature, phase and arrival time differences
60 user-defined internal presets storable
Servo-balanced, gold-plated XLR connectors for all inputs and outputs
Internal switch-mode power supply for maximum flexibility (100
– 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
