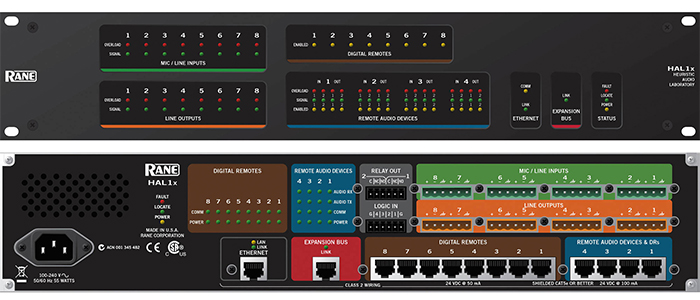

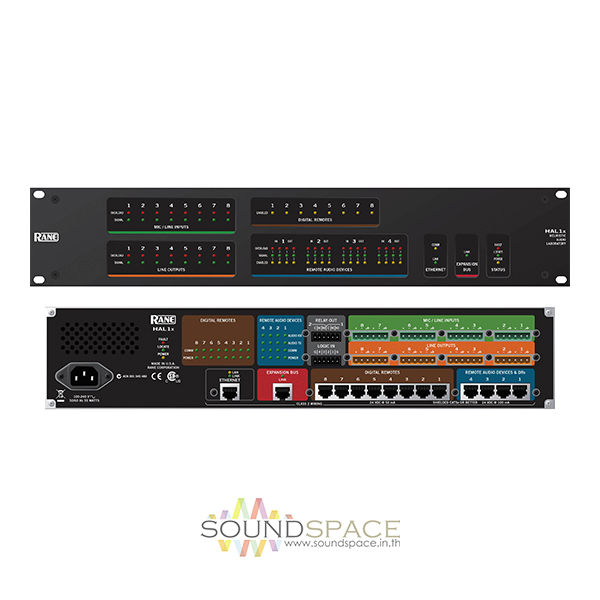

Rane HAL1x Programmable DSP Audio Distribution Multiprocessor

The HAL1x Programmable DSP Audio Distribution Multiprocessor from Rane allows you to easily create an extensive, far-reaching network of audio and paging zones. It has 9600 MIPS of processing power, and includes its own Halogen control software for Windows, which assists in everything from dynamic signal routing to cable testing.

The HAL1x has 8 on-board analog inputs and outputs, but it can serve as the brains to an audio network expanding up to 512 inputs and 512 outputs. In addition to its Euroblock analog connectors, HAL1x offers four Remote Audio Device (RAD) ports and an Expansion Bus with support for up to 32 EXP1x expansion units. Each EXP1x provides 8 RAD ports.

Rane’s Remote Audio Devices (RADs) contain inputs with built-in A/D conversion and outputs with built-in D/A conversion. They can be placed up to 592.1 feet (150 m) from HAL1x, sending 48kHz/24-bit digital audio back and forth over CAT 5e connections. RADs are available in over 20 different combinations of input/output connectors.

Rane’s DR-series wall-mount remote controls can toggle parameters from within each output zone, such as volume, DSP presets, input source, and system states. The HAL1x supports up to 12 DRs, but has dedicated inputs for 8. The remotes connect by CAT 5e cables at lengths up to 984.3 feet (300 m).

The Halogen software enables complete control of all components networked to the HAL1 from an Ethernet-connected Windows-based PC. It’s indispensable in designing, configuring, and dynamically controlling your HAL audio system. It splits your workflow into two sections, hardware and processing. The hardware workspace allows you to see all connected devices, specify them, and troubleshoot. The processing workspace is where all the virtual patching, DSP effects processing, preset design/recall, zone link, and room combination settings take place. The HAL1 can also support external control systems, such as AMX, Crestron, and Stardraw.

Features:

Digitally Configured Audio Distribution
Expandable Up to 512 Inputs & Outputs
9600 MIPS of Processing Power
8 Balanced Euroblock Mic/Line Inputs
8 Balanced Euroblock Outputs
4 Onboard RAD Ports
Includes Halogen Control Software
Supports External Control Systems
Supports Rane DR-Series Remote Controls
Multizone Paging

Specifications

Analog I/O
Analog Audio I/O	8 x 8
Connectors	Euroblock: 4 x 6-pin, 5 mm pitch Green: Inputs Orange: Outputs
Codec	24-bit, 48 kHz

Microphone Inputs
Mic Input	Active Balanced
Gain Range	+10 to +60 dB: 1 dB steps
Input Impedance	2.6 kOhms, 1% – 1 kHz, each leg to ground
Phantom Power	+48 VDC: 10 mA max per input
Equivalent Input Noise	-127 dBu max, 20 Hz to 20 kHz, 150 ohm source, 60 dB gain, A-weighted
THD + N	<0.008% typical, 20 Hz to 20 kHz, +4 dBu, +10 dB gain, 20 kHz BW
Maximum Input	3 dBV (1.4 V RMS) typical, input gain at +10 dB, 1 kHz, <1% THD+N
CMRR	55 dB minimum, 1 kHz

Line Input
Line Input	Active balanced
Gain Range	Unity & +10 to +20 dB: 1 dB steps
Input Impedance	5.1 kOhms, 1%, 1 kHz, each leg to ground
THD + N	<0.008% typical, 20 Hz to 20 kHz, +4 dBu, unity gain, 20 kHz BW
Maximum Input	20.8 dBu typical, input gain at 0 dB, 1 kHz, 1% THD+N
Frequency Response	20 Hz to 20 kHz, +0, -.05 dB
Dynamic Range	109 dB
Channel Isolation	Interchannel Isolation: 104 dB max, 20 Hz to 20 kHz, +20 dBu, unity gain, channel-to-channel
CMRR	45 dB minimum, 1 kHz

Output
Outputs	Active balanced
Impedance	200 ohms, 1%, each leg
Maximum Output	+20.9 / +16.4 dBu typical, 1 kHz, 100 kOhms / 600 ohms load
Frequency Response	20 Hz to 20 kHz, +0.1 / -0.3 dB +4 dBu, unity gain, 100 kOhms load
Dynamic Range	109 dB maximum, +20 dBu, 20 kHz BW, A-weighted, 100 kOhms load
Channel Isolation	110 dB typical, 20 Hz to 20 kHz, +20 dBu, channel-to-channel, 100 kOhms load

Indicators
Signal	-50 dBFS typical Green LED: Peak-reading
Overload	-0.5 dBFS typical Red LED: Peak-reading

Propagation Delays
RAD I/O	RAD In to RAD Out: 1.71 ms typical, Tested with RAD23 RAD In to Analog Out 1.85 ms typical Analog In to RAD Out 2.25 ms typical Analog In to Analog Out 2.39 ms typical

DSP
Processing Power	HAL1x Processing Power: 9600 MIPS maximum 4 DSPs @ 300 MHz each with up to 8 instructions / cycle
Word Length	32/64-bit floating point
Delay Memory	80 sec maximum

Computer Connections
Type	Ethernet 1000 base-T Zeroconf service discovery protocol for easy set up
Cable	Shielded CAT 5e or better, RJ45 connector
Length	Maximum 328.1′ / 100.0 m, standard Ethernet cable length limit

HAL1x Expansion Bus
Audio Channels	HAL1x Maximum: 512 in x 512 out, plus control channel
Maximum Number of Devices	32 maximum, daisy-chain
Maximum Cable Length	Maximum 328.1′ / 100.0 m
Propagation Delay	730 ns typical, In and Out of Expansion Unit – 22.4 µs across 32 EXPs

RAD Ports
Ports	4, RJ45
Audio Channels	8 In x 8 Out: Each port 2 in x 2 out, plus control channel, 24-bit, 48 kHz
Power	Each Port: 24 VDC @ 100 mA maximum
Length	Maximum: 492.1′ / 150 m, shielded CAT 5e cable or better

HAL1x DR Ports
Ports	Ports: 8, RJ45 connector
Power	Each Port: 24 VDC @ 50 mA maximum
Length	Maximum: 984.3′ / 300 m, shielded CAT 5e cable or better

Relay ~ Output
Relay Outputs	2
Connector	Mini Euroblock: 6-pin, 3.81 mm pitch, black
Type	COM, NC & NO
Limit Values	2 A, 48 V maximum 60 W maximum switching power

Logic Inputs
Logic Input	4
Connector	Mini Euroblock: 6-pin, 3.81 mm pitch, black
Type	Internal passive pull-up, protected to +24 V
Vin High	>2.2 V minimum, normal state
Vin Low	< 1.0 V maximum, external circuit sinks > 22 μA to assert

General Specifications
Wiring	Class 2, all rear panel terminals
Power Requirement	100 to 240 VAC 50/60 Hz, 50 W maximum
Ambient Operating Temperature	104°F / 40°C – maximum external loading
Conformance	Unit Conformity: CE, FCC, CCSAUS
Dimensions (H x W x D)	3.5 x 19.0 x 8.3″ / 8.9 x 48.3 x 21.0 cm
Weight	7.0 lb / 3.2 kg
