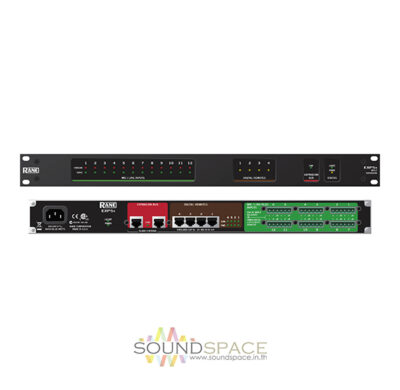

RANE EXP5x Input Expander

อุปกรณ์ปรับแต่งเสียง RANE EXP5x 12 mic/line/line-plus Input & DSP Expander for the HAL1x. It supplies four DR (digital remote) ports,

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿83,800.00 ฿67,000.00

สอบถามและสั่งซื้อสินค้า

Description

Rane EXP5x Input Expander for the HAL1x

อุปกรณ์ปรับแต่งเสียง RANE EXP5x 12 mic/line/line-plus Input & DSP Expander for the HAL1x. It supplies four DR (digital remote) ports,

The 1RU EXP5x from Rane is a 12 mic/line/line-plus Input & DSP Expander for the HAL1x. It supplies four DR (digital remote) ports, which are useful for adding source selection and/or volume control remote controls. Each of the 12 inputs independently supports either dynamic microphone, 48V phantom microphone, +4 dBu line-level, or Rane’s line-plus summing input. Line-plus accepts -10 dBV unbalanced left/right summed into mono together on the “+” and “-” ports, respectively. For stereo unbalanced sources, line-plus allows connecting the stereo RCA left tip conductor to the “+” terminal, the RCA right tip to the “-” terminal, and both RCA shields to the EXP5x Euroblock ground. Line-plus can be selected in Halogen to get a properly summed mono audio channel

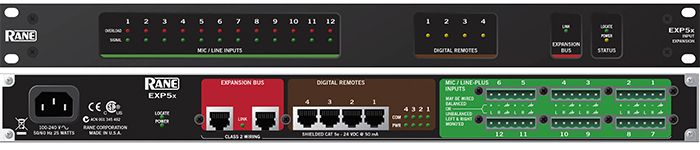

rane_exp5x_expander_1

Features:

  • Adds 12 analog mic/line/line-plus inputs to a HAL1x
  • Adds 4 digital remote ports to a HAL1x
  • Chain up to 32 EXP5x units to a HAL1x for 384 analog outputs

Specifications

Connectors 12 x 6-pin 5 mm pitch Euroblock, balanced Microphone/Line input
2 x RJ-45, DR (digital remote) Port
ADC 24 bit, 48 kHz
Line Input Line Input: 4 Vrms / 12 dBV, minimum at 1 kHz
Line-Plus Input (L+R Mono): 4 Vrms / 12 dBV, minimum at 1 kHz, Line-plus summing of left and right
Microphone Input Condenser Mic Input: 500 mVrms / -6 dBV, minimum at 1 kHz, 48 V phantom power
Dynamic Mic Input: 127 mVrms / -18 dBV, minimum at 1 kHz
Dynamic Range 101 dB typ. A-weighted
Frequency Response 20 Hz to 20 kHz, +0.1 / -0.3 dB +4 dBu, unity gain, 10 kΩ load
Input Impedance 5.8 kΩ / 2.9 kΩ, typical balance / each leg at 1 kHz
Isolation Between Channels > 100 dB, typical at 1 kHz
CMRR 55 dB, minimum at 1 kHz
Indicators Signal Indicators: -50 dBFS, green LED
Overload Indicators: -0.5 dBFS, red LED
Propagation Delay 758 µs, analog in to expansion bus
Cable Length DR (Digital Remote): 1000′ (300 m)
Power DR (Digital Remote): 24 VDC @ 50 mA
Wiring Class 2
Ambient Temperature 113° F (45° C) maximum
Power Requirement 100 to 240 VAC
Approvals and Compliance CE, FCC, CCSAUS
Dimensions (H x W x D) 1.75 x 19.0 x 8.25″ (4.4 x 48.3 x 20.9 cm)
Weight 4.6 lb (2.1 kg)
