อีควอไลเซอร์ RANE DEQ60L Graphic Equalizer

EQ RANE DEQ60L เครื่องปรับแต่งเสียงแบบสเตอริโอ ข้างละ 30 band ก้านสไลด์ยาว 1/3 octave graphic equalizer with Perfect-Q and Proportional-Q filtering

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿62,800.00 ฿50,200.00

สอบถามและสั่งซื้อสินค้า

Description

Rane DEQ-60L Dual Channel 30 Band Graphic Equalizer

EQ RANE DEQ60L เครื่องปรับแต่งเสียงแบบสเตอริโอ ข้างละ 30 band ก้านสไลด์ยาว 1/3 octave graphic equalizer with Perfect-Q and Proportional-Q filtering

The term “graphic equalizer” refers to a device that allows a user to “draw” the desired frequency response using slider controls on the unit’s front panel. However, the physics of filter designs has meant that the end result was essentially a compromise, an approximation, as adjacent bands would to some degree or other interact. The 45mm slider DEQ 60L and the 25mm slider DEQ 60from Rane solve this problem.

Using Digital Signal Processing (DSP) Rane has developed a filter design that exhibits virtually no band interaction and extremely low ripple between adjacent bands. Called Perfect-Q, the result is the first graphic equalizer whose output response precisely matches slider settings. For those users who want to use a more traditional filter response, each channel of the DEQ 60L is selectable between Perfect-Q or Proportional-Q response.

In addition to the unique filters, the DEQ 60L features high and low pass filters, input and output level adjustment, a choice of boost/cut range (+/-12dB or +/-6dB) or cut-only mode, the ability for each channel to use either the A or B channel controls and multiple connectivity options. A bypass switch and bypass relay and a universal switching power supply make this unit a truly professional product.

Features:

  • Dual channel 30 band 1/3 octave graphic equalizer with Perfect-Q and Proportional-Q filtering
  • No EQ filter interaction when in Perfect-Q mode
  • Analog controlled DSP
  • Independent “Accelerated-Slope” 3-band full-cut tone controls
  • Each channel may use the A or B channel controls
  • Selectable Boost/Cut +/-12dB or +/-6dB and a cut-only mode
  • 45mm sliders with soft-touch knobs
  • Variable input and output level control
  • Eight segment metering for each Input and Output
  • Active balanced input and output connections

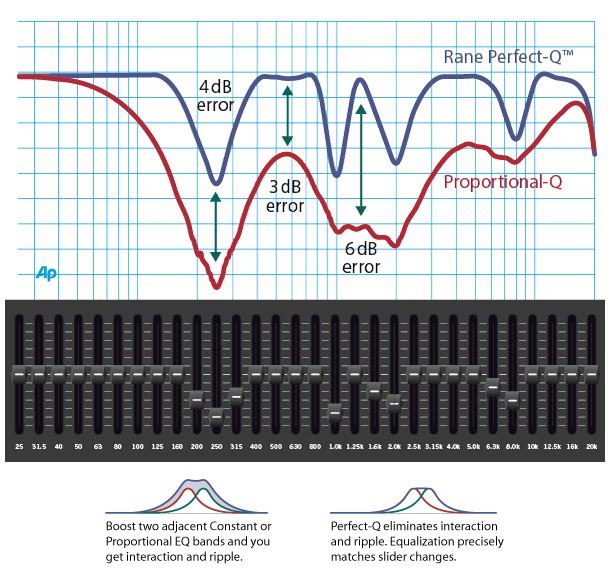

rane_deq60l_equalizer_1

Specifications

Filter Type Graphic, Perfect-Q or Proportional-Q, switchable each channel
Number of Channels 2 with 45mm sliders
Inputs 2 x XLR, 2 x 1/4″ TRS phone, Euroblock connectors
Output 2 x XLR, 2 x 1/4″ TRS phono, Euroblock connectors
Maximum Input Level +22dBu
Frequency Bands 30 x 2, ISO spacing
Bandwidth 1/3 octave
Range (Boost/Cut) +/-12dB, +/-6dB selectable
-12dB cut-only mode
Maximum Output Level +22dBu
Frequency Response 15Hz to 20kHz
Dynamic Range 106dB, A-weighted input to output
Noise Not specified by manufacturer
Dimensions 2U rack, 5 1/4″ deep
Specialties Power failure auto-bypass
