อีควอไลเซอร์ KLARK TEKNIK SQ1G Graphic EQ

อีควอไลเซอร์ KLARK TEKNIK SQ1G Dual-channel, 30-band 1/3 octave graphic equalizer with 45mm dust guarded faders

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿22,400.00 ฿17,900.00

สอบถามและสั่งซื้อสินค้า

Description

อีควอไลเซอร์ KLARK TEKNIK SQ1G Graphic Equaliser

อีควอไลเซอร์ KLARK TEKNIK SQ1G Dual-channel, 30-band 1/3 octave graphic equalizer with 45mm dust guarded faders, Electronically balanced inputs and outputs on both Neutrik* XLR and 1/4” TRS connectors

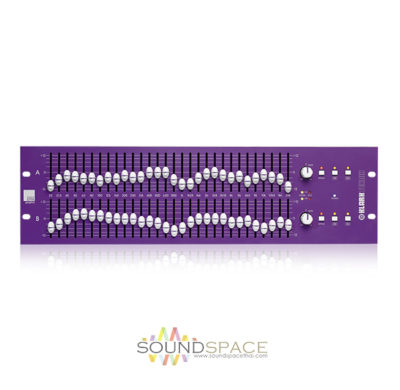

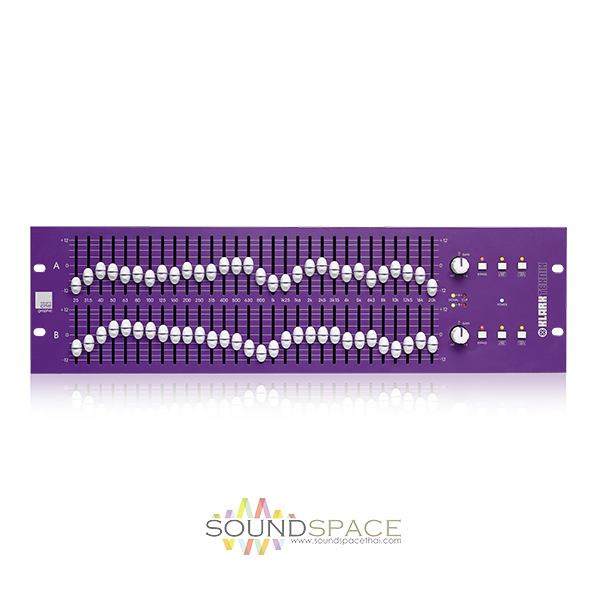

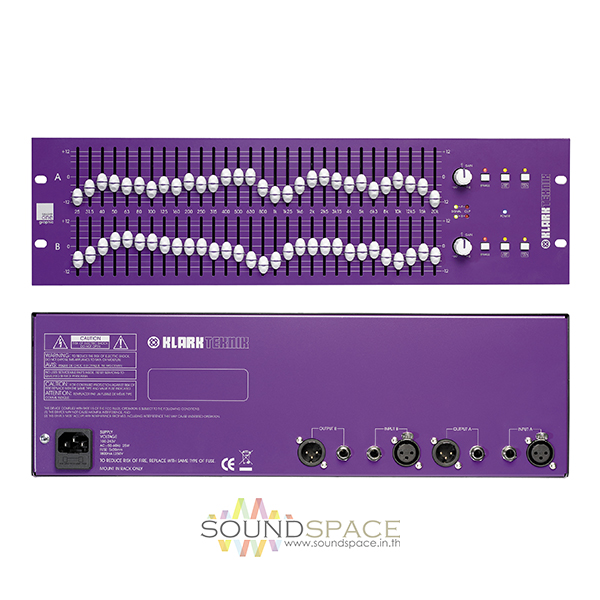

The Square ONE Graphic from Klark Teknik is a dual-channel, thirty-band, third-octave graphic equalizer, with long-throw, forty-five millimeter faders. The unit is constructed to the same standards as the rest of the Klark Teknik range, while answering to more budget-sensitive applications.

Aside from the main filters, the unit sports a high- and low-pass filter per channel. These filters manage subsonic and ultrasonic frequencies respectively, providing protection for speakers while increasing the available headroom for the entire system. When engaged simultaneously, the filters provide optimal control over the operating bandwidth of most monitor (floor wedge and IEM) transducer systems.

The unit utilizes proportional-Q filtering, which varies the “Q” value depending on the depth of either the cut or boost of a particular band. This results in a “smooth” and “musical” response, while still preserving the original source material. Both inputs and outputs are balanced. The internal power supply automatically adjusts itself to various voltages, from 100 to 240VAC.

klark-teknik_sq1g_equalisers_2

Features:

  • Enhanced Proportional-Q equalisation provides both smooth contouring EQ and High-Q notches
  • Fixed 80 Hz high-pass and 12 kHz low-pass filters per channel with bypass switches
  • Long-throw 45 mm oil-damped faders with dust covers for increased accuracy and reliability
  • Channel bypass switch
  • Power-off bypass relays

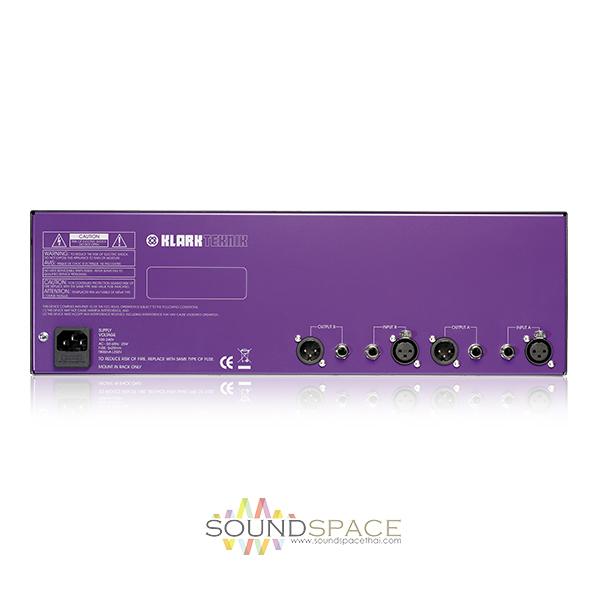

  • Electronically balanced inputs and outputs on both Neutrik* XLR and 1/4” TRS connectors
  • Rugged 3U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply
  • 3-Year Warranty Program*
  • Designed and engineered in the U.K.

Specifications

Filter Type Graphic
Number of Channels 2
Inputs 2 x XLR
2 x 1/4″ TRS phone
Outputs 2 x XLR
2 x 1/4″ TRS phone
Maximum Input Level Not specified by manufacturer
Frequency Bands 2 x 30
Bandwidth 1/3 octave
Range (Boost/Cut) +/-12dB
Maximum Output Level +22dBu into >2kΩ
Frequency Response 20Hz to 20kHz, +/-0.5dB
Dynamic Range >112dB, unweighted (20Hz to 20kHz)
Noise SNR: <-90dBu
Dimensions (WxDxH) 19 x 8 x 5.25″ (483 x 205 x 133mm)
Weight 9.7 lbs (4.4 kg)
Specialties High-pass filter with 80Hz corner frequency
Low-pass filter with 12kHz corner frequency
