ไดเร็คบ๊อกซ์ Radial USB Pro Stereo USB Laptop Di Box
ไดเร็คบ๊อกสำหรับคอมพิวเตอร์, laptop Radial USB Pro, High performance 24bit digital audio converter, Automatically installs without the need of a driver, Built-in headphone amplifier, Balanced Lo-Z outputs with switchable isolation
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿10,000.00
Description

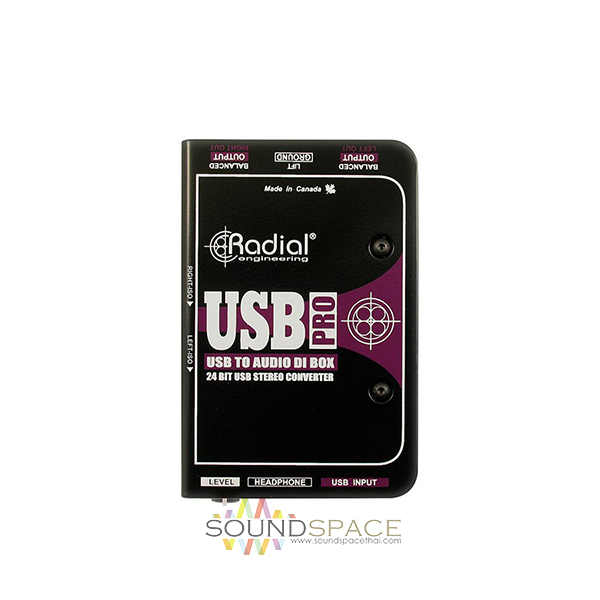

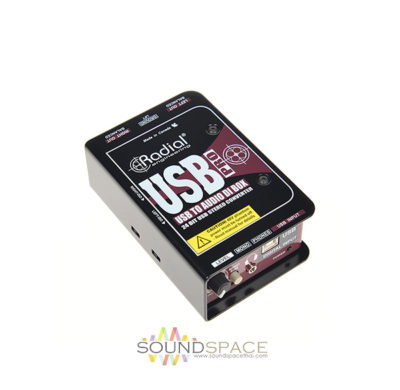

Radial USB Pro Stereo USB Laptop Direct Box
ไดเร็คบ๊อกสำหรับคอมพิวเตอร์, laptop Radial USB Pro, High performance 24bit digital audio converter, Automatically installs without the need of a driver, Built-in headphone amplifier, Balanced Lo-Z outputs with switchable isolation

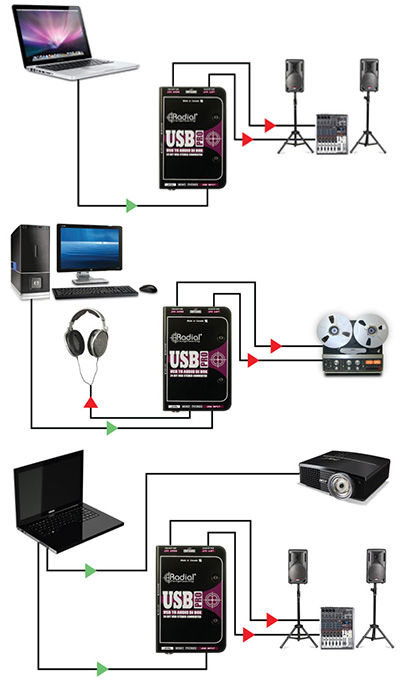

The Radial USB-Pro is a high-resolution stereo digital audio converter (DAC) and direct box that is designed to connect to any computer system to seamlessly transfer digital audio to analog. A stereo pair of balanced XLR audio outputs with adjustable level control then feeds the signal to a microphone preamplifier, PA system, mixing console or even a powered speaker! Made for plug and play simplicity, the USB-Pro will automatically be listed as an available sound card in the audio settings in all popular operating systems including Windows XP, Windows 7/8, and Mac OSX.
Connection to a computer is accomplished through a standard USB type-B port. Digital-to-analog conversion can be monitored on headphones through the 3.5mm analog output to check signal quality and level before connecting to a sound system. A mono-sum switch may be engaged to check for phasing or for connection to a mono system.

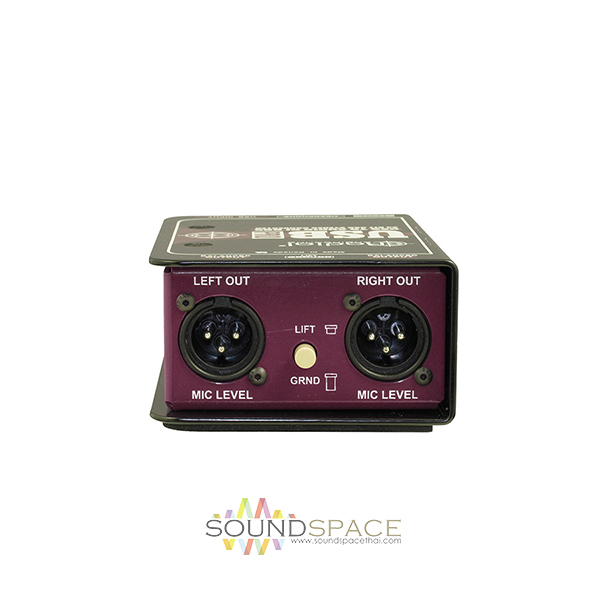

Should hum or buzz caused by ground loops be encountered, two recessed side-access switches allow the user to insert isolation transformers into the signal path. To further reduce susceptibility to noise, this is augmented with a ground lift switch that lifts pin-1 on both XLR jacks.
As with all Radial products, the USB-Pro is designed to handle the rigors of professional touring. Our unique book-end design creates protective zones around the switches, connectors and controls to keep them out of harm’s way. Inside, our time-tested I-beam construction assures the sensitive internal PC board will not torque, which could cause premature part failure. Finally, a full bottom no-slip pad provides mechanical isolation and electrical insulation to ensure quiet operation.
Features:
- High performance 24bit digital audio converter
- Ready to use without the need of a driver
- 3.5mm analog headphone output to check signal
- Balanced Lo-Z outputs with switchable isolation
Specifications
| Specifications | |
|---|---|
| Specifications are subject to change without notice. | |
| Audio circuit type: | Custom decoder with analog line drive |
| USB compliance: | USB 1.1 full speed |
| Bit depth: | 24bit (16bit capable) |
| Sampling rate: | 44.1kHz / 48kHz / 96kHz auto sensing |
| Sound file compatibility: | WDM, MME, CoreAudio and DirectSound |
| Software compatibility: | Windows XP/Vista/Win7/Win8 and Mac OS |
| Frequency response: | 5Hz ~ 40kHz (30Hz ~ 18kHz with isolation) |
| Dynamic range: | >90dB |
| Noise floor: | -90dB |
| Maximum gain: | +8dBu |
| Total harmonic distortion: | 0.01% |
| Stereo separation: | 75dBu |
| Output impedance: | 300Ω nominal |
| Features | |
| Digital input: | USB connector B-type |
| Analog output: | Stereo balanced mic level (2 x XLR-M) |
| Headphone output: | 3.5mm TRS |
| Level control: | Variable, works on headphone and XLR outputs |
| Isolation: | Switchable for each channel |
| Mono switch: | Sums left & right inputs to mono |
| Ground lift: | Lifts pin-1 on both XLR outputs |
| General | |
| Power: | USB bus powered 500mA maximum |
| Finish: | Durable powder coat |
| Size: | 3.3″ x 5.0″ x 2″ (84 x 127 x 48mm) |
| Weight: | 1.5 lb (680 g) |
| FCC approval: | Complies with section 15 of the FCC Rules |
| Conditions: | For use in dry locations only between 5°C and 40°C |
| Warranty: | Radial 3-year, transferable |
