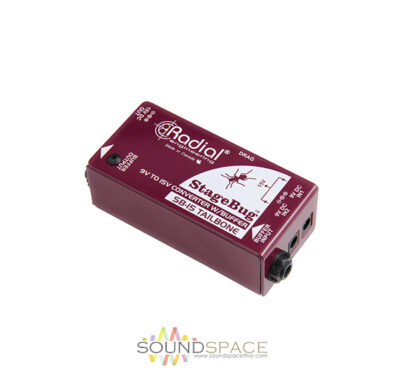

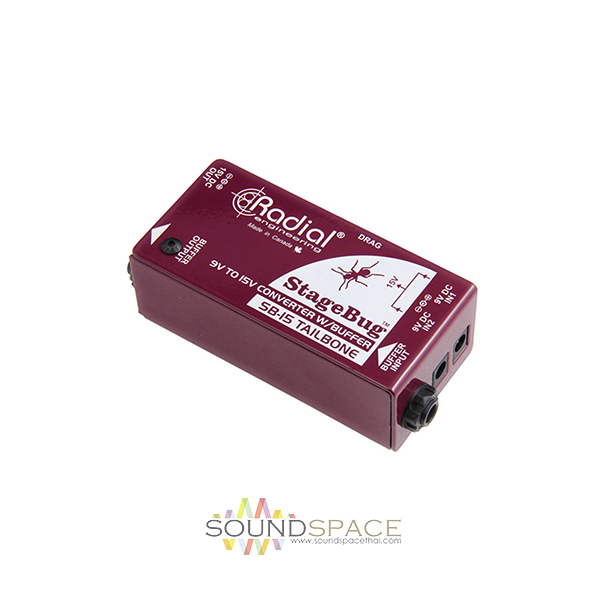

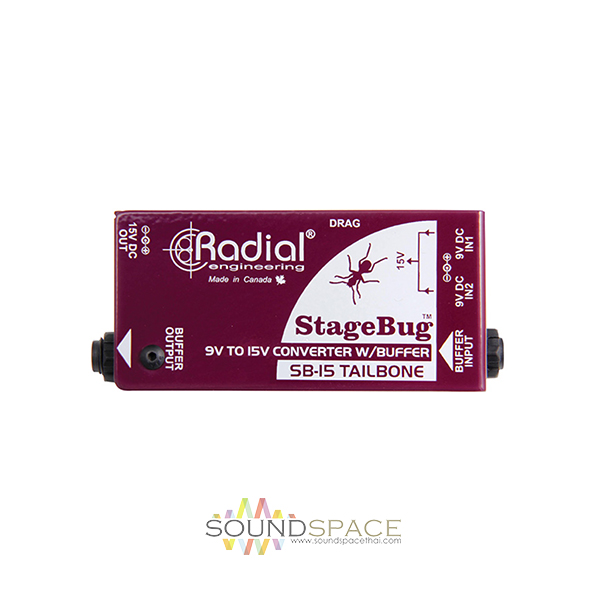

Radial StageBug SB-15 Tailbone Signal Buffer

Description

Radial StageBug SB-15 Tailbone Signal Buffer & 9V to 15V Converter

อุปกรณ์บัฟเฟอร์สัญญาณ Radial StageBug SB-15, 100% Discrete Class-A Buffer, Drag Control Load Correction, Drives Pedals to 50′, Converts Two 9V Supplies to 15 VDC, Drag Control load correction adjusts the load on the pickup for a more natural sound and feel

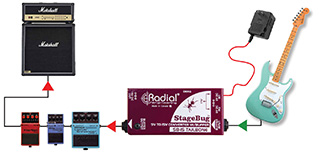

The Stagebug SB-15 is a class-A signal buffer designed to sit at the beginning of the signal chain and drive multiple pedals without added noise or signal loss. It also converts two 9V power outputs to a 15V supply as an alternative way to power Radial and Tonebone 15V products.

Features:

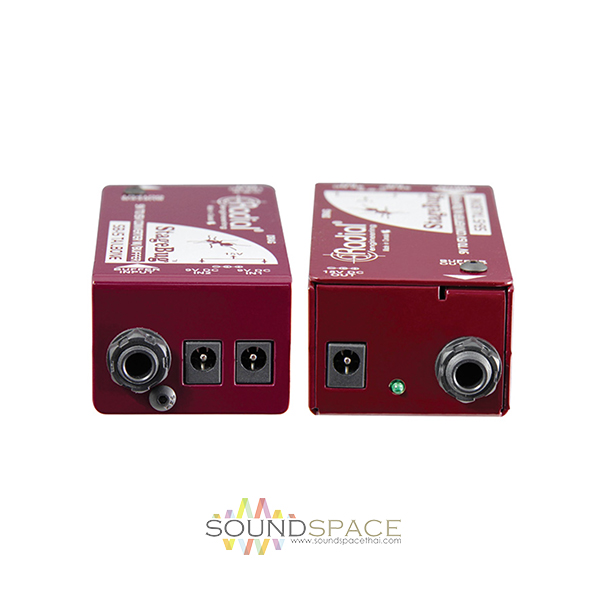

• Hi-Z 1/4″ guitar input connects to a class-A buffer circuit
• 9 VDC In-1 provides power to the Tailbone class-A active buffer circuit
• 9 VDC In-2 is used with 9 VDC In-1 to increase input power so that the Tailbone can deliver 15V to a Tonebone pedal
• Enclosure is made from 14-gauge steel to protect sensitive internal electronics while shielding against magnetic fields
• 1/4″ buffer output connects to pedals and amp, allowing longer cable run without noise (up to 50′)
• 15 VDC, 400mA output designed to supply Tonebone pedals using two 9 VDC supplies as the power source
• Durable powder-coat finish
• Double-sided, military-grade circuit board features through-hole solder points for extra durability, and full-surface ground plane to reduce susceptibility to noise
• Stand-offs are made from steel and pressed into the outer casing to ensure proper retention of the circuit board
• Connectors made from glass-filled nylon are insulated for reduced noise and feature nickel-silver contacts that will not tarnish
• Dual potentiometer doubles up solder points for greater durability, and steel casing with steel shaft and retention nut does not bend when under stress
• Drag Control load correction adjusts the load on the pickup for a more natural sound and feel
