อะคูสติกปรีแอมป์Radial PZ-Pre Acoustic Instrument Preamp

฿15,200.00

ปรีแอมป์ Radial Tonebone PZ-Pre, 2-channel Instrument Preamp with Boost, 2 Piezo Boosters, 3-band EQ, Notch Filter, High-pass Filter, Separate DIs for House Mix and Monitoring, and Tuner Out with Footswitchable Mute

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

แชร์สินค้านี้: Facebook X LINE

Description

Radial PZ-Pre 2-channel Acoustic Instrument Preamp Pedal

ปรีแอมป์ Radial Tonebone PZ-Pre, 2-channel Instrument Preamp with Boost, 2 Piezo Boosters, 3-band EQ, Notch Filter, High-pass Filter, Separate DIs for House Mix and Monitoring, and Tuner Out with Footswitchable Mute

The Radial PZ-Pre is a powerful acoustic instrument preamplifier. The magic lies in the combination of high performance 100% discrete class-A PZB piezo boosters, an ultra-quiet preamp circuit that will adapt to any pickup system and a host of connectivity options that will put you in total control.

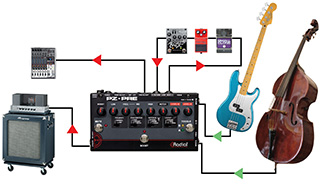

The PZ-Pre is equipped with two inputs for quick instrument changes on stage, or, for blending two pickups together. Powerful semi-parametric EQ and feedback eliminating controls allow the user to fine-tune their sound while eliminating troublesome frequencies.

Offering both pre and post EQ direct box outputs, the PZ-Pre can be used send a dry signal to the house and performer tailored sound to monitors.

Features:

  • Two channels
  • Separate piezo boosters for each channel
  • 3-band EQ with semi-parametric mid
  • Notch filter
  • highpass Filter
  • Pre-EQ balanced DI out for FOH mix
  • Post EQ and effects loop balanced DI out for in-ear monitoring or on-stage wedges
  • Tuner out with foot switch mute
  • Personal guitar amp out
  • Power supply included

Specifications

Audio circuit type: Proprietary active circuit
Number of channels: Dual Input, Amp Out, Pre and Post EQ XLR balanced Out
Input Impedance: 6.8k Ohm at input jack (PZB active 10meg Ohm)
Output Impedance: 1k Ohm
Features
180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost
Input Connectors: 1/4″
Output Connectors: Pre and Post EQ XLR
Extras: 1/4″ Effects Loop, Tuner
General
Construction: 14-gauge steel
Size (L x W x D): 8″w x 4 ¼”d x 2″h (205 x 110 x 51mm)
Weight: 2.7lbs (1.2kg)
Power: 15VDC 400mA, center pole positive
Conditions: For use in dry locations only between 5°C and 40°C

Downloads

ดาวน์โหลด Data Sheet PZ-Pre
