ออดิโออินเตอร์เฟส PreSonus Studio 24C USB-C Audio Interface
ออดิโออินเตอร์เฟส PreSonus Studio 24C 2-in/2-out USB-C Audio Interface with 2 XMAX-L Preamps, Headphone Output, MIDI I/O, Studio One Artist DAW, and Studio Magic Plug-in Suite – Mac/PC, เหมาะสำหรับ Musicians, Podcasters, Producers
ไม่รวมภาษีมูลค่าเพิ่ม…
฿6,790.00
Description

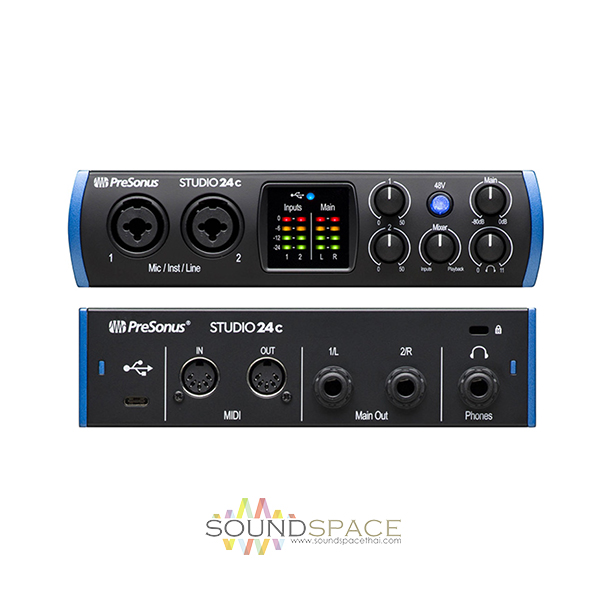

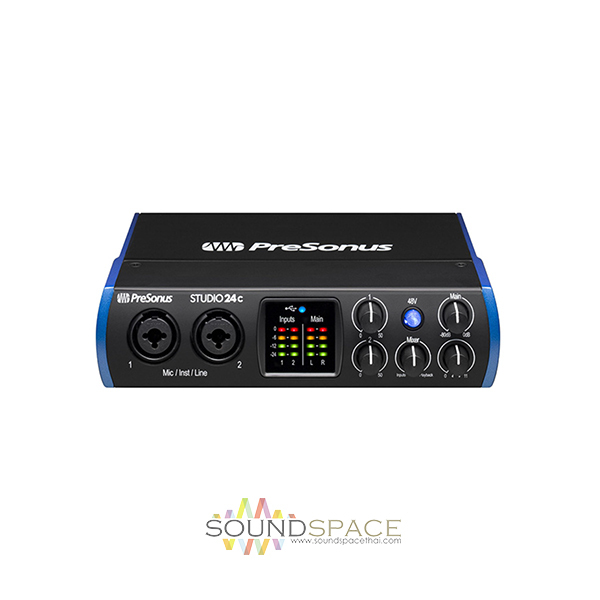

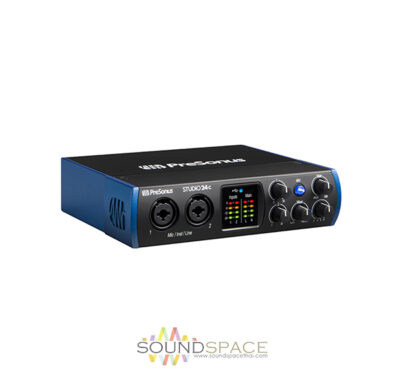

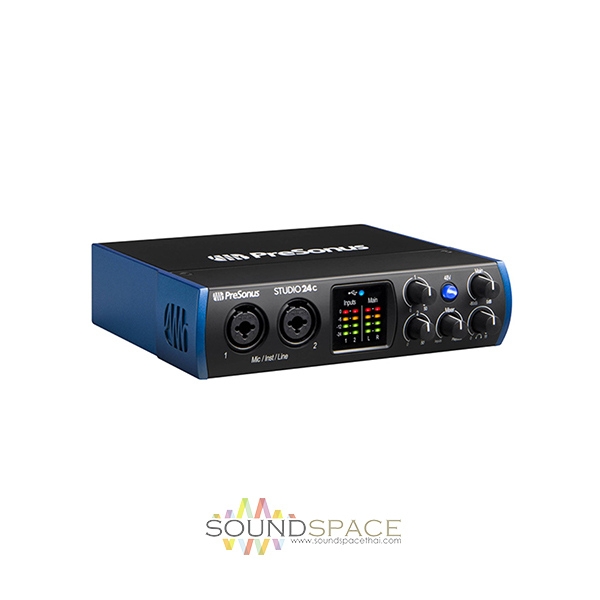

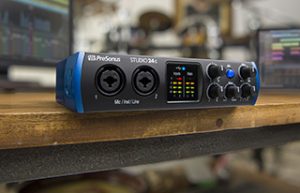

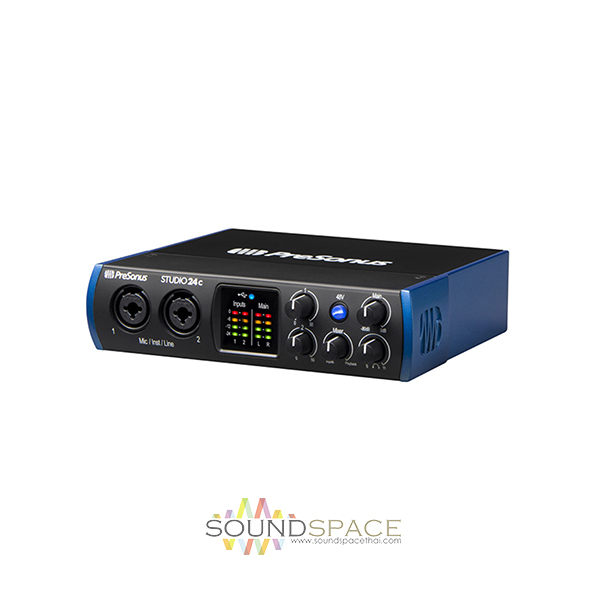

PreSonus Studio 24C USB-C Audio Interface
ออดิโออินเตอร์เฟส PreSonus Studio 24C 2-in/2-out USB-C Audio Interface with 2 XMAX-L Preamps, Headphone Output, MIDI I/O, Studio One Artist DAW, and Studio Magic Plug-in Suite – Mac/PC, เหมาะสำหรับ Musicians, Podcasters, Producers
Offering ultrahigh-resolution conversion, two pro-grade preamps, and a powerful software package for vocalists, musicians, producers, and podcasters in home studios and mobile setups, the PreSonus Studio 24c desktop 2×2 USB audio/MIDI interface blends studio-quality sonic performance, liberating portability, and refreshing ease of use.
With selectable 48V phantom power and two XMAX-L solid-state mic preamps fed via XLR-1/4″ combo inputs, the Studio 24c can accommodate any source from condenser microphones and active DI boxes to electric instruments and line-level mixer outputs with clarity and natural tonality.
All inputs and outputs feature quality converters that can operate at resolutions up to 24-bit / 192 kHz without sacrificing channel count or interface functionality.
Features:
- Mobile-ready, bus-powered 2-in/2-out USB-C audio interface
- Loaded with 2 clear and dynamic XMAX-L solid-state microphone preamplifiers
- Capable of up to 24-bit/192kHz studio-grade digital resolution
- Stay on top of your mix with ladder-style LED monitoring and low-latency direct monitoring
- Onboard MIDI I/O provides a standard 5-pin DIN connection to keyboards and other MIDI gear
- Includes PreSonus Studio One Artist DAW software for Mac and Windows PCs
- Packaged with the complete Studio Magic Plug-in Suite — a collection of awesome plug-in emulations of classic studio gear
- USB-C to USB-C and USB-C to USB-A cables included
Specifications
| Form Factor | Desktop |
| Display | 4 x Multi-Segment LED Meter |
| Channels of I/O | Analog: 2 Inputs / 2 Outputs at 192 kHz |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 2 Preamps |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | Inputs: 50 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
| Analog Audio I/O | 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x 1/4″ TRS Balanced Line/Monitor Output 1 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power | 48 V, Selectable On/Off (Applied to All Inputs) |
| Phantom Power Current | 10 mA |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Wireless Connectivity | None |
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz ±0.3 dB (Unity Gain) Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB (Unity Gain) Monitor Outputs: 20 Hz to 20 kHz ±0.3 dB (Unity Gain) Headphone Outputs: 20 Hz to 20 kHz ±0.5 dB (Unity Gain) |
| Maximum Input Level | Mic Inputs: +10 dBu (Min Gain) Hi-Z Inputs: +19 dBu (Min Gain) |
| Maximum Output Level | Monitor Outputs: +10 dBu (Balanced) |
| Headphone Output Power | 47 mW per Channel into 56 Ohms (Max) |
| Impedance | Mic Inputs: 1.4 Kilohms Hi-Z Inputs: 750 Kilohms Headphone Outputs: 32 to 300 Ohms |
| Dynamic Range | AD/DA Converters: 108 dB Mic Inputs: 106 dBA Hi-Z Inputs: 105 dBA Monitor Outputs: 104 dB (Unweighted) Headphone Outputs: 83 dBA |
| THD+N | Mic Inputs: 0.004% (1 kHz, Min Gain, at -1 dBFS) Hi-Z Inputs: 0.002% (1 kHz, Min Gain) Monitor Outputs: 0.001% (1 kHz, Unity Gain, at -1 dBFS) Headphone Outputs: 0.01% (1 kHz, at 0 dBFS) |
| EIN | Mic Inputs: -126 dBu A-Weighted |
| Sample Rates | Up to 192 kHz (AD/DA Conversion) |
| Sample Rate Conversion | None |
| Bit Depths | Up to 24-Bit (AD/DA Conversion) |
| Sync Sources | Internal |
| Memory Card Slot | None |
| OS Compatibility | macOS 10.13 or Later (64-Bit Only) Windows 10 or Later (64-Bit Only) *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Included Software | Studio One Artist Ableton Live Lite |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) |
| Processor Requirement | Mac: Intel Core i3 PC: Intel Core i3 AMD |
| RAM Requirements | 4 GB, 8 GB Recommended |
| Storage Requirements | 30 GB |
| Minimum Display Resolution | 1366 x 768 |
| Mobile Device Compatibility | None |
| Required Hardware | USB Cable (Included) Available USB 2.0 Port or USB-C Port |
| Internet Connection | Required for Registration, Software/Driver Download |
| Power Requirements | USB Bus Power |
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 7 x 5.5 x 1.75″ / 17.8 x 14 x 4.45 cm |
| Weight | 2.0 lb / 0.9 kg |
Downloads
ดาวน์โหลด Manual PreSonus Studio24C
