ลำโพงซับวูฟเฟอร์ NEXO iDS312 Column Subwoofer
ลำโพงซับเบส NEXO iDS312 เป็นลำโพงคอลัมน์ที่ช่วยเสริมความถี่ต่ำของลำโพง ID84 โดยนำมาต่อเสริมด้านล่าง, ตอบสนองความถี่ 40 Hz to 120 Hz ประกอบด้วยดอกลำโพง Neodymium 12″ 6 Ohms long excursion 3 ดอก จะมี 2 เวอรชั่นทั้งแบบติดตั้ง iDS312-i (installation) และ iDS312-T (Touring)
ราคาพิเศษ….Contact Us…..0863114142
฿142,800.00
Description

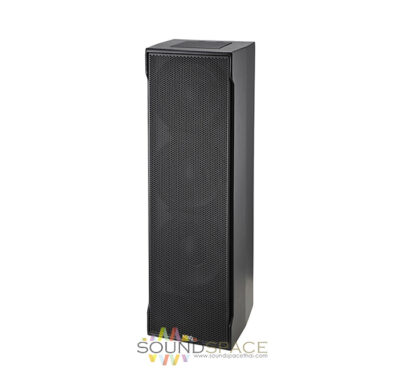

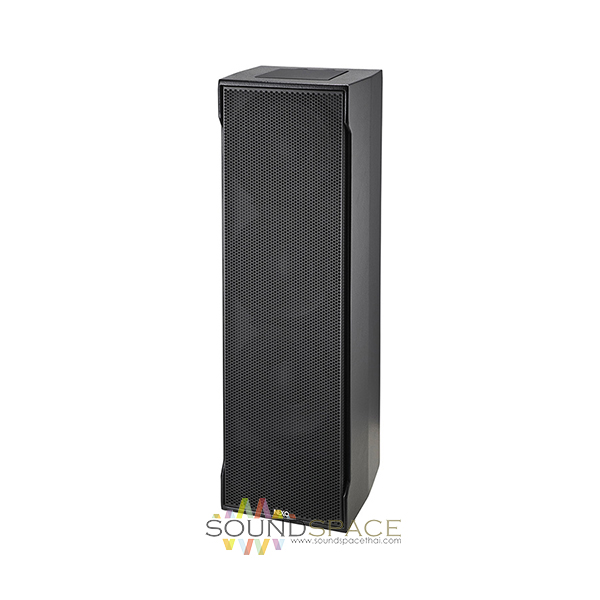

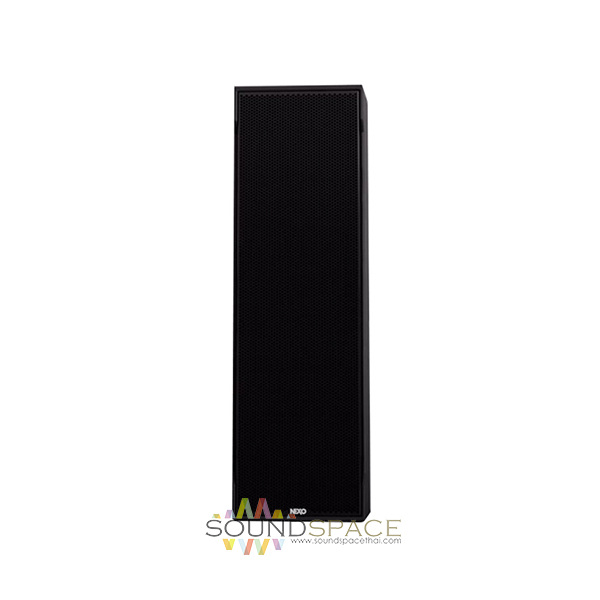

NEXO iDS312-i Column Subwoofer 3×12″
ลำโพงซับเบส NEXO iDS312 เป็นลำโพงคอลัมน์ที่ช่วยเสริมความถี่ต่ำของลำโพง ID84 โดยนำมาต่อเสริมด้านล่าง, ตอบสนองความถี่ 40 Hz to 120 Hz ประกอบด้วยดอกลำโพง Neodymium 12″ 6 Ohms long excursion 3 ดอก จะมี 2 เวอรชั่นทั้งแบบติดตั้ง iDS312-i (installation) และ iDS312-T (Touring)

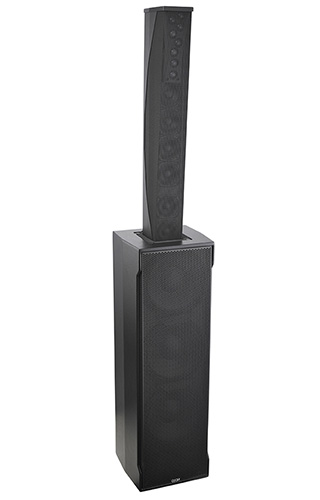

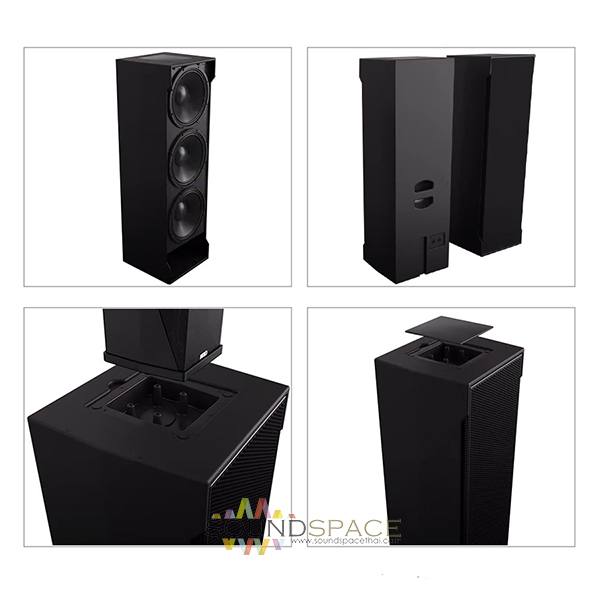

Measuring 1160mm x 380mm x 350mm (45.7 x 15.0” x 13.8”) and weighing 31kg (68lbs), the IDS312 dedicated sub for ID84 columns features a convenient system for mounting and connecting an ID84 cabinet on top
Extending system LF response down to 40Hz and creating a full range system that’s 2 metres in height. Constructed from 15mm Baltic birch plywood, the IDS312 also features rubber strips to isolate vibration in horizontally-mounted applications.
The installation version (IDS312-I) is IP2X rated and features a cloth covered grille. Speakers can be specified in custom RAL colours and use a cable gland with a 2-core cable for audio input.
Features:
- Powerful column sub that can be used with or without its companion main speaker the ID84
- Can be deployed horizontally or vertically
- Lightweight (31 kg / 68 lbs) using Neodymium drivers and birch plywood enclosure
- Fixed installation version with cloth covered grille and 2 core cable connectivity
- Comprehensive range of mounting accessories available
- Black, white and custom RAL colours
Specifications
| Frequency Response @-6 dB | 40 Hz to 120 Hz |
| Sensitivity | 105 dB SPL Nominal |
| Peak SPL@1m | 138 dB |
| Available Crossover Frequencies | 40-85 Hz, 40-120 Hz, 40-150 Hz, 63-120 Hz, 63-150 Hz |
| Nominal Impedance | 2Ω |
| Recommended Power | 1300 to 2100 Watts / 2Ω |

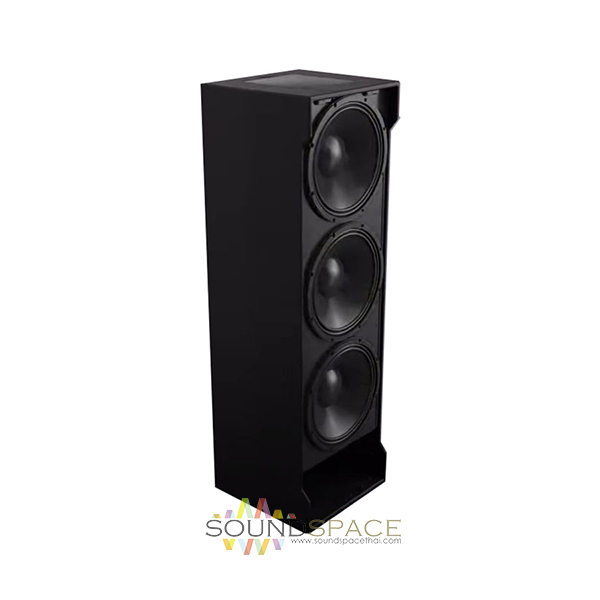

| Components | 3 x Neodymium 12″ 6 Ohms long excursion |
| Connectors | Cable gland with 2x core cable |
| Rigging Points | 1 x pair of M6 rigging points to link the IDS312 to a base plate |
| Construction | 15mm baltic birch plywood |
| Finish | Black structural paint (RAL9005), White structural paint (RAL9016) or Custom RAL |
| Front Finish | UV & Fire resistant acoustic fabric |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| Height x Width x Depth | 1160mm x 380mm x 350mm (45.7″ x 15.0″ x 13.8″) |
| Weight: Net | 31 kg (68 lbs) |
| IP Rating | IP2X |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered TDcontroller: 1 x IDS312 per channel |
| Electronic controllers | NXAMP4x2mk2 Powered TDcontroller: 1 x IDS312 per channel |
| NXAMP4x4mk2 Powered TDcontroller: 1 x IDS312 per channe |
