ลำโพงซับวูฟเฟอร์ NEXO eLS400 Subwoofer 12″
ลำโพงซับเบส NEXO PS400 ออกแบบมาสำหรับใช้คู่กับลำโพง NEXO ePS6 และePS8 มีขนาดดอกลำโพง 12นิ้ว 6 Ohms long excursion, ตอบสนองความถี่ 45 Hz to 150 Hz, Nominal Impedance 6 Ω, Recommended Power 450 to 700 Watts / 6 Ohms (requires a 700 to 1000 Watts / 4 Ohms amplifier)
ราคาพิเศษ….Contact Us…..0863114142
฿67,080.00
Description

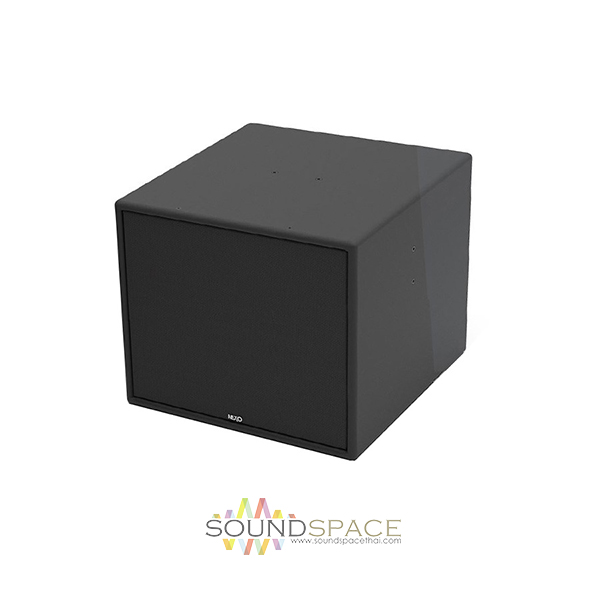

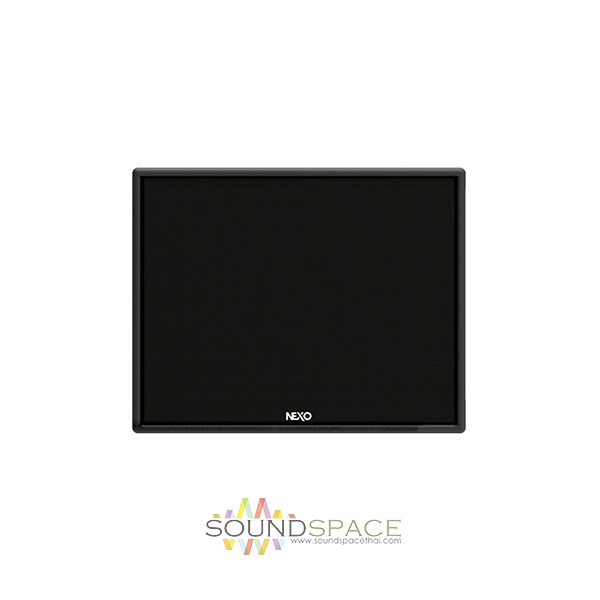

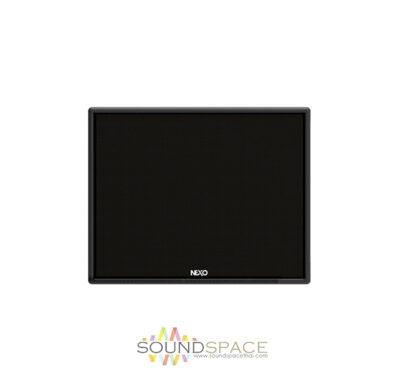

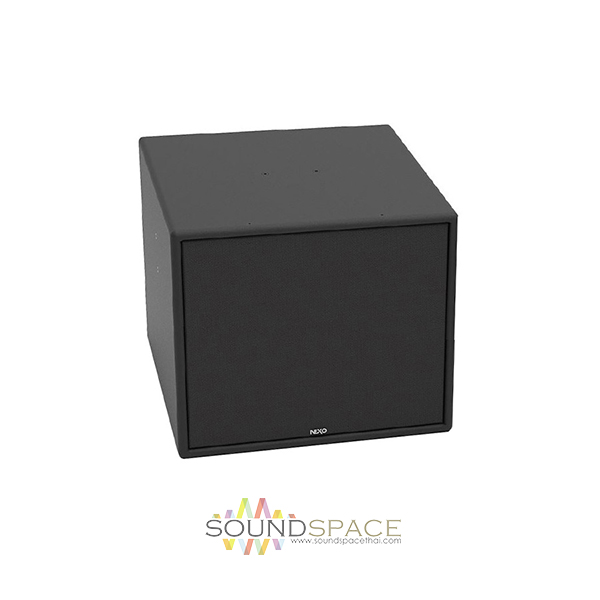

NEXO eLS400 High Excursion Subwoofer 12″
ลำโพงซับเบส NEXO PS400 ออกแบบมาสำหรับใช้คู่กับลำโพง NEXO ePS6 และePS8 มีขนาดดอกลำโพง 12นิ้ว 6 Ohms long excursion, ตอบสนองความถี่ 45 Hz to 150 Hz, Nominal Impedance 6 Ω, Recommended Power 450 to 700 Watts / 6 Ohms (requires a 700 to 1000 Watts / 4 Ohms amplifier)
Measuring 365mm high x 423mm wide x 450mm deep and weighing 14.5Kg, the eLS400 sub uses a high excursion 12-inch Neodymium driver in a cabinet constructed in a bass-reflex design.
Constructed from 15mm baltic birch plywood, the cabinet is protected by a strong polyurethane based coating and the Magnelis® front grille is covered by a black UV and fire resistant cloth.
Achieving a peak SPL of 130dB with a frequency range extending down to 45Hz, the eLS400 features convenient rigging points and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.
Features:
- Installation sub with high-excursion 12-inch woofer
- Ideal companion to ePS6 and ePS8 installation loudspeakers

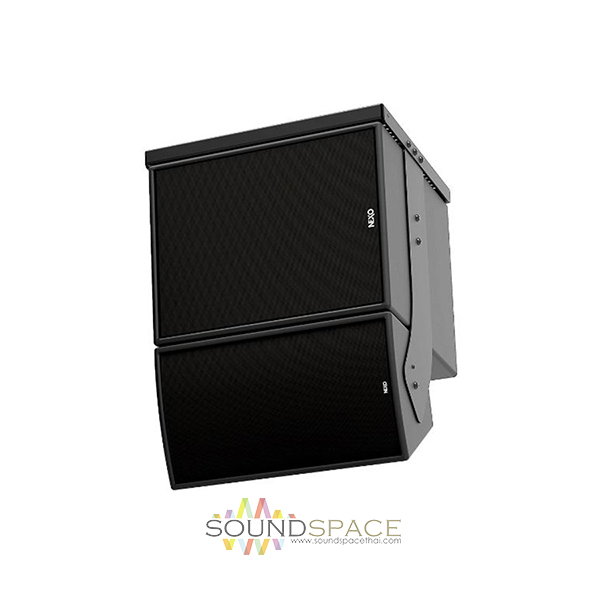

- Compact design that can be stacked or flown with ePS6 or ePS8 companion main speaker
- Discrete, easy to integrate design
- Lightweight (14.5kg / 32lbs) using neodymium driver and birch plywood enclosure
- Solid construction using 15mm birch plywood enclosure
- IP54 protection level
- Comprehensive range of accessories for deploying the eLS400 in a wide variety of applications
Specifications
| Frequency Response @-6 dB | 45 Hz to 150 Hz |
| Sensitivity 1W@1m | 102 dB SPL Nominal |
| Peak SPL@1m | 130 dB |
| Crossover Frequency | 45-85 Hz, 45-120 Hz, 45-150 Hz |
| Nominal Impedance | 6 Ω |
| Recommended Power | 450 to 700 Watts / 6 Ohms (requires a 700 to 1000 Watts / 4 Ohms amplifier) |
Product Features
| LF Component | 1 x Neodymium 12″ 6 Ohms long excursion |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible cables section | Cables from 0.75 mm² to 3.3 mm² (AWG 18 to 12) copper section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 9 mm |
| Rigging points | 4 x pairs of M10 rigging points (two on each side) |
| Material | 15 mm thick birch plywood body and Magnelis® grille |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 365mm x 423mm x 450mm (14.4″ x 16.7″ x 17.7″) |
| Weight: Net | 14.5 kg (32 lbs) |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| IP Rating | IP54 |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered TDcontroller: up to 2 x eLS400 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x0.7 : 1 x eLS400 per channel |
| DTDcontroller + DTDAMP4x1.3 : 1 x eLS400 per channel | |
| NXAMP4x2mk2 Powered TDcontroller: up to 3 x eLS400 per channel | |
| NXAMP4x4mk2 Powered TDcontroller: up to 3 x eLS400 per channel |
Downloads
ดาวน์โหลด Data Sheet NEXO eLS400
