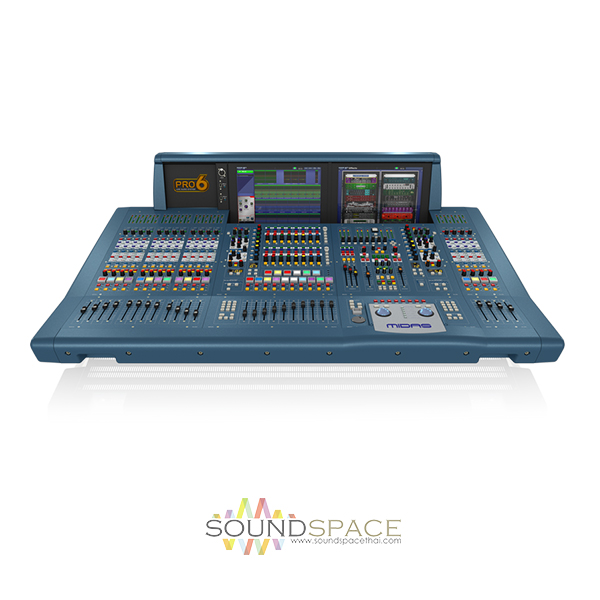

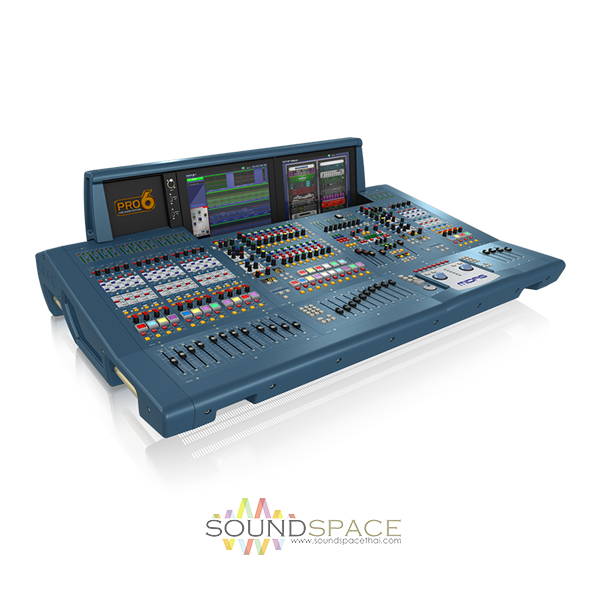

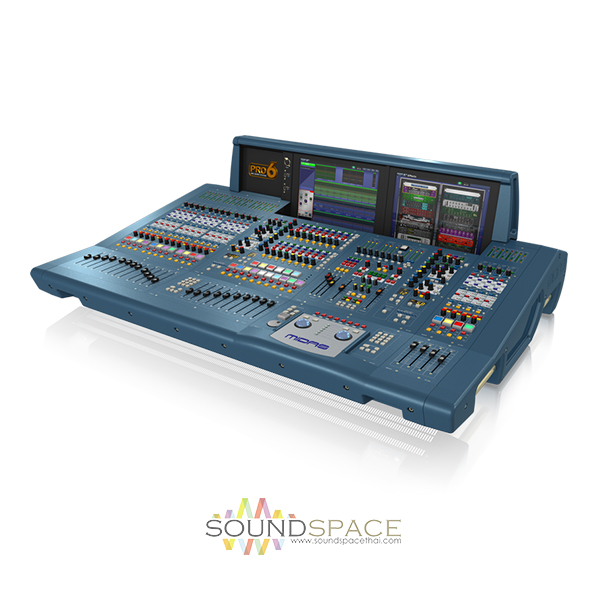

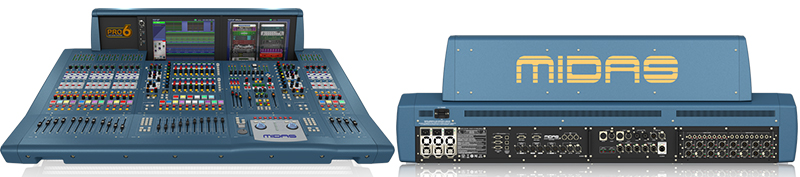

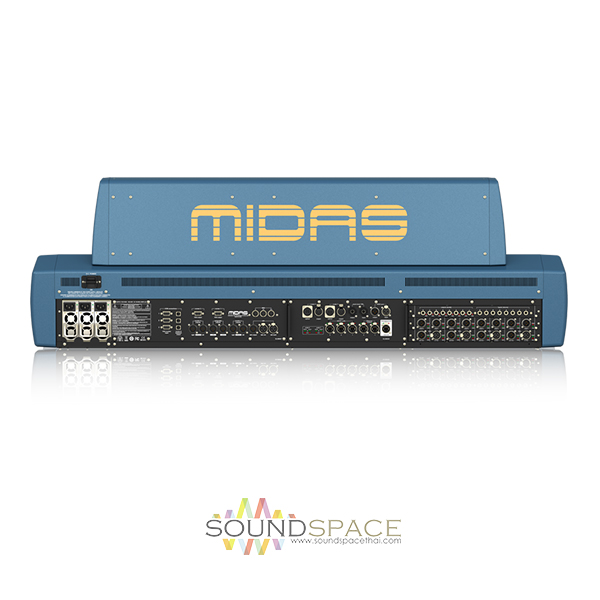

ดิจิตอลมิกเซอร์ MIDAS PRO6 CC-IP Install Package
เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro 6-CC-IP สำหรับงานติดตั้ง (Install Package) Live Digital Console Control Centre with 64 Input Channels, 35 Mix Buses and 96 kHz Sample Rate
ราคาไม่รวมภาษีมูลค่าเพิ่ม…
฿1,006,000.00 ฿804,800.00
Description
Midas Pro6-CC-IP Digital Audio Mixing System (Install Package)
เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro 6-CC-IP สำหรับงานติดตั้ง (Install Package) Live Digital Console Control Centre with 64 Input Channels, 35 Mix Buses and 96 kHz Sample Rate
The MIDAS PRO Series has become established as the industry standard on live concert tours and the road-proven PRO6 featuring 64 simultaneous input channels and 35 time-aligned and phase-coherent mix buses, shares the familiarity of a common user interface and workflow with PRO3 and PRO9. Like all PRO Series consoles, the PRO6 features managed latency and 40 bit floating point processing precision. PRO6 sets the standard of performance in high-profile live sound applications and is a truly impressive digital control surface for the engineer whose very livelihood depends on both unparalleled functionality and reliability.
HyperMAC and AES50 audio networking technologies allow the PRO6 to dynamically assign up to 288 inputs and 294 outputs at 96 kHz sampling rate to any of its input channels and bus outputs on a scene-by-scene basis. This high level of connectivity, coupled with the large channel and bus counts, makes the PRO6 equally at home in theatres and symphony halls as it is in live concert touring, outside broadcast and music festivals.
Features:
- Live performance digital console control centre with up to 64 simultaneous input channels
- 35 time-aligned and phase-coherent mix buses
- HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz sample rate
- HyperMAC router with 192 bidirectional channels over copper and optical fibre
- Provides dual redundant snake connection to DL371PRO6 Audio System Engine
- Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
- 10 VCA (variable control association) and 6 POPulation groups
- Up to 36 assignable 1/3 octave KLARK TEKNIK DN370 graphic equalisers
- Up to 8 multi-channel digital signal processing effects engines
- 29 MIDAS PRO motorised 100 mm faders
- 2 daylight viewable 15” full colour TFT display screens
- Fully interpolated touch sensitive controls
- Optional wireless remote control with MIDAS MIXTENDER App for iPad*
- Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
- 3-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
| I/O | Maximum Input Capacity: 288 Maximum Output Capacity: 294 Primary Inputs: 56 Return Inputs: 8 Maximum simultaneous mix channels: 80 Number of groups/auxes: 16 Number of matrices: 16 Groups that provide mixes in monitor mode: 32 Mix buses: 35 VCAs: 10 POPulation groups: 6 Effects devices: 8 Maximum Klark Teknik DN370: 36 Configurable ‘area B’: yesStage I/O: DL351 (56 inputs and 8 outputs, configurable I/O) |
| Expandability | Digital snake: dual redundant HyperMac (192 x 192) Cat 53 digital snake included Fiber-optic connections for optional maximum 500 m snake Additional I/O options: DL251 Audio System I/O DL351 Modular I/O DL431 Mic Splitter DL451 Modular I/OI/O Card Options DL441 analog input (mic module) DL442 analog output module DL443 analog jack I/O module DL444 8 analog mic in and 8 analog line out module DL452 AES/EBU input and output module Option of 150 m fiber optic cable |
| Processor | 32-bit |
| Reverb | Hall, Plate, Chamber and Room, with five variations of each |
| Effects | live, Non-Linear, Reverse, Delay, ADT, Multitap Echo, Sound-On-Sound and Infinite Room |
| Parameters | Pre-delay: 0 to 990 ms Pattern (density) Adjustable 0 to 9 increments (Grainy to Dense) Level (depth) Adjustable 0 to 9 increments (Distant to Close) Decay time 0.1 to 18 seconds Room size 8 to 90 meters linear dimension LF decay Adjustable ±7 increments ref. 1 kHz decay time HF decay Adjustable ±7 increments ref. 1 kHz decay time |
| Controls | Input mute: Removes audio feed from reverberation section. Reverb mute: Clears unwanted reverberant signal. Input level control: From 6 dB gain to infinite attenuation. Headroom indicator: 10-point LED display, 0 dB to -27 dB. Display” Simultaneous display of all parameter information. Parameter selection and store functions are verified by individual LEDs |
| Sampling Frequency | 96 kHz |
| Latency Delay | <2 ms input to master (no compensation) |
| Dynamic Range | 110 dB, 22 to 22,000 Hz (no pre-emphasis) |
| Maximum Voltage Gain | 80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix |
| Maximum Voltage Gain | 80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix |
| Crosstalk | At 1 kHz: -100 dB physically adjacent input channel At 10 kHz: -100 dB physically adjacent input channels |
| Cut and Mix Transitions | Fader/pan cut off at 1 kHz: -100 dB Fader/pan cut off at 10 kHz: -100 dB |
| Display Screen | 2 x 15″ daylight-viewable color screens |
| LCD | 33 x RGB color |
| Faders | 29 x touch-sensitive faders with 1024 steps of resolution |
| Encoders | 102 x touch-sensitive with 512 steps |
| Power Requirements | 100 to 240 VAC, 50 to 60 Hz |
| Operating Temperature | 41 to 104°F (+5 to 40° C) |
| Storage Temperature | -4 to 140° (-20 to 60°C) |
| Dimensions | Control Center: 51.18 x 39.37 x 15.75″ (1300 x 1000 x 400 mm) DL251 I/O Box (5U): 19.0 x 17.5 x 16.1″ (48.3 x 44.5 x 41.0 mm) DL351 I/O Box (7U): 19.0 x 24.5 x 16.1″ (48.3 x 62.2 x 41.0 mm) DL371 I/O Box (7U): 19.0 x 24.5 x 16.1″ (48.3 x 62.2 x 41.0 mm) DL451 I/O Box (3U): 19.0 x 10.5 x 16.1″ (48.3 x 26.7 x 41.0 mm) |
| Weight | Control center: 265 lb (120 kg) DL351: 110 lb (50 kg) DL371: 66 lb (30 kg) DL451: 29 lb (13 kg) Total: 470 lb (213 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 538.0 lb |
| Box Dimensions (LxWxH) | 61.0 x 56.0 x 30.0″ |
