มิกเซอร์ดิจิตอล BEHRINGER X32CORE 40-Input, 25-Bus Digital Rack Mixer with AES50 Networked Audio, USB Audio Interface and iPad/iPhone Remote Control
40-Input, 25-Bus Digital Rack Mixer with AES50 Networked Audio, USB Audio Interface and iPad/iPhone* Remote Control

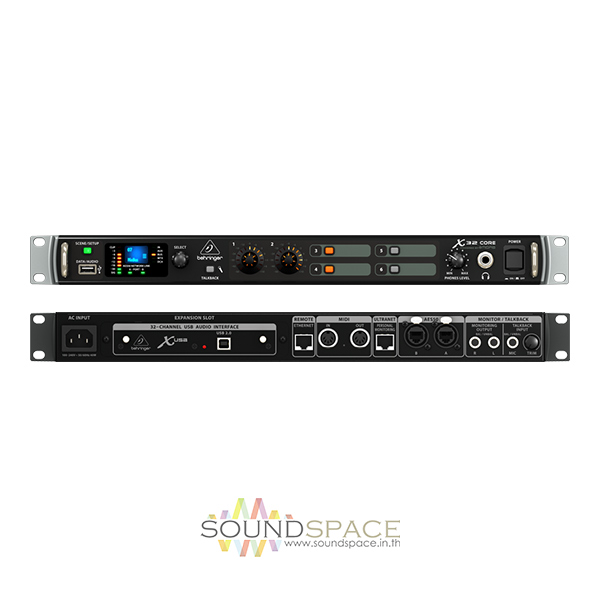

The X32 CORE takes the brain of the flagship X32 digital mixing console and packs it all into a single rack space. Combine the X32 CORE with our S16 digital snakes to effortlessly run sound with high I/O counts in multiple locations. Dual AES50 networking CAT5 connectors allow for up to 96 remote inputs and 48 output channels to be controlled from and processed by X32 CORE. All of this can be managed concurrently from various locations and instances of our free control software applications, XiQ, XiControlandXControl.
Front Side Control
A set of front panel controls can be pre-configured by the engineer to enable a restricted amount of user interaction, while hiding away all the complexity. The rear panel expansion port allows inserting optional I/O cards to interface with existing networked audio infrastructure.
At the Heart of it All
The X32 CORE forms the nucleus of an ultra-flexible studio control room setup when paired with S16 I/O and P16 personal monitoring systems in each tracking room.The built-in 32 x 32 USB recording interface, 8 stereo effects engines, zero-latency monitoring (independent from DAW) and 100% total recall deliver the tools to handle any project you dare to tackle.
Compose. Record. Mix. Share.
TRACKTION 4 puts the fun back into the creative process, so we’re including it free of charge with select BEHRINGER products. This powerful, yet easy-to-use music production software is unlike anything you’ve seen before, putting everything you’ll need on your desktop, on a single-screen – without the sea of drop down and hidden menus common to most other DAWs. And TRACKTION doesn’t limit the number of tracks you can record, or the number of effects you can use. In fact, the only limitation is your Mac or PC computer’s processing power. Recording and editing couldn’t be easier; simply drag, drop, cut, copy or paste. Once your magnum opus is finished, share it with other “Tracktioneers” so they can listen, collaborate and edit.
|Channels||40 Input Channels|
|Inputs – Mic Preamps||No mic preamps|
|Inputs – Line||None|
|Inputs – Other||None|
|Inputs – Digital||2 x AES50 (Total 96 Channels), 32 USB/Firewire|
|Outputs – Main||8 x XLR|
|Outputs – Direct||2 x TRS (monotor)|
|Outputs – Other||None|
|Outputs – Digital||2 x AES50 (Total 96 Channels), 32 USB/Firewire|
|Data I/O||Ethernet, USB 2.0, MIDI (DIN)|
|I/O Expansion Slots||No expansion slots|
|EQ Bands||6-band parametric on all 25 busses|
|Aux Sends||Via software|
|Busses/Groups||25 total (16 mix busses, Main LCR, 6 matrix buses)|
|Effects||Yes (8 x stereo)|
|DAW Control||Yes (via software)|
|Computer Connectivity||1 x USB 2.0, 1 x Firewire 400|
|Manufacturer Part Number||X-32 Core|
