I/O อินเตอร์เฟส Stage Box Midas DL252 16 Input, 48 Output Stage Box with 16 MIDAS Microphone Preamplifiers, Three AES50 Network Ports, Ethernet Control Port

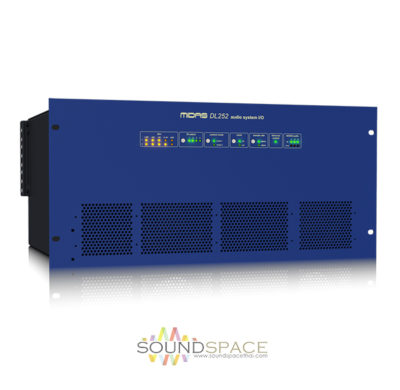

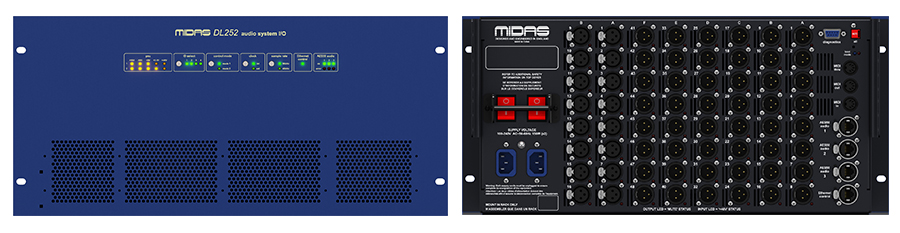

The DL252 from MIDAS is a 5U 19″ rackmount fixed-configuration I/O unit with sixteen microphone/line inputs and forty-eight line outputs. Limited to analog connections, the unit provides a more cost-effective solution for those not needing the flexibility of MIDAS modular I/O hardware.
MIDI (In, Out, Thru) connectors and an Ethernet control port are fitted as standard. Three AES50 ports handle the (n+1) redundant digital audio interface. The DL252 is capable of being switched between 96 kHz and 48 kHz via the front panel.
A rear panel “Mute All Outputs” button is provided for aiding in onstage re-patching. The unit is also equipped with dual-redundant, universal power supplies.
Features:
16 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power
48 actively balanced low impedance line level outputs
Selectable 96 kHz or 48 kHz sample rate operation
Remote operation up to 100 m via CAT5/5e cable
All settings programmable from front panel controls or console
PSU status indicator LEDs and configuration switches on front panel
3 AES50 network ports for redundant connections
MIDI In, Out and Thru connectors
Features Neutrik etherCON* AES50 network ports
Rugged 5U rackmount chassis for durability in portable applications
Dual redundant auto-ranging universal switch-mode power supplies
3-Year Warranty Program*
Designed and engineered in the U.K.
Specifications
General Statistics
XLR connections
1 x 5U rack I/O box houses:
16 x (XLR) mic/line inputs 48 x (XLR) line outputs
Resilience
N + 1 cable redundancy and dual redundant PSUs
General Specifications
Sampling rate
48 kHz, 96 kHz
Dynamic range
107 dB, 22 Hz to 22 kHz (no pre-emphasis)
Maximum gain
45 dB
Crosstalk @ 1 kHz
-100 dB physically adjacent input channels
Crosstalk @ 10 kHz
-90 dB physically adjacent input channels
Dimensions
5U x 414 mm deep
Net weight
10 kg
Shipping weight
18 kg
Power requirements
100 to 240 VAC, 50 to 60 Hz
Power consumption at 115 V
1 PSU: 85 W, 85 VA 2 PSU: 110 W, 110 VA
Power consumption at 230 V
1 PSU: 90 W, 100 VA 2 PSU: 110 W, 135 VA
Operating temperature range
+5°C to +40°C
Storage temperature range
-20°C to +60°C
System Inputs and Outputs
I/O box inputs
Connector
3-pin XLR balanced
A/D converter
24-bit, 96 kHz and 128 times oversampling
Box analogue outputs
Connector
3-pin XLR balanced
D/A converter
24-bit, 96 kHz and 128 times oversampling
MIDI
MIDI connector
In, Out and Thru on 5-pin DIN (for use with Midas consoles only)
48 kHz I/O digital system inputs and outputs
System connector (1)
1 x AES50 (48 channels of bidirectional digital audio) on etherCON XLR
Redundant connector (2)
1 x AES50 (48 channels of bidirectional digital audio) on etherCON XLR providing redundant back-up
Additional connector (3)
Not used
96 kHz I/O digital system inputs and outputs
System connector (1 and 2)
2 x AES50 (24 channels of bidirectional digital audio per connection) on etherCON XLR
N+1 connector (3)
1 x AES50 (24 channels of bidirectional digital audio on etherCON XLR providing redundant back-up
