MIDAS DL151 I/O Interfaces Stage Box

I/O อินเตอร์เฟส Stage Box Midas DL151 24-Input Stage Box with 24-MIDAS Microphone Preamplifiers and Dual-Redundant AES50 Networking, Suitable for PRO1, PRO2 Digital Consoles

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

฿80,000.00 ฿64,000.00

สอบถามและสั่งซื้อสินค้า

Description

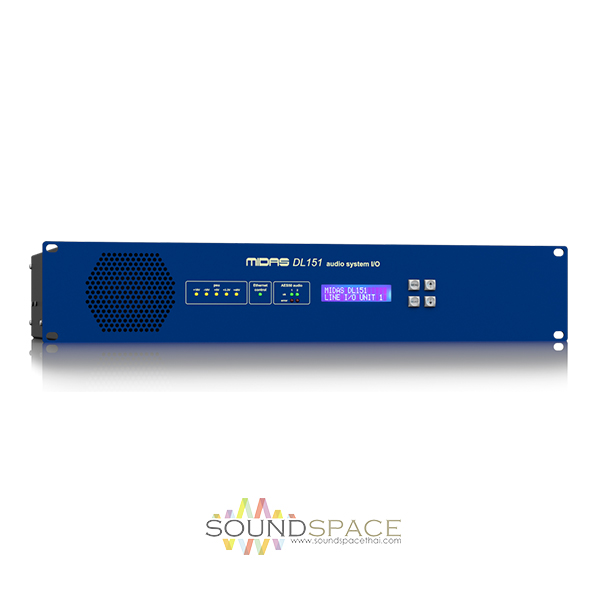

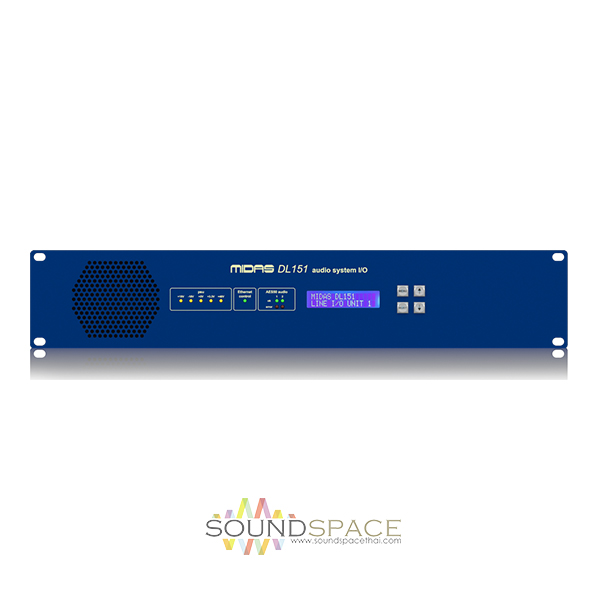

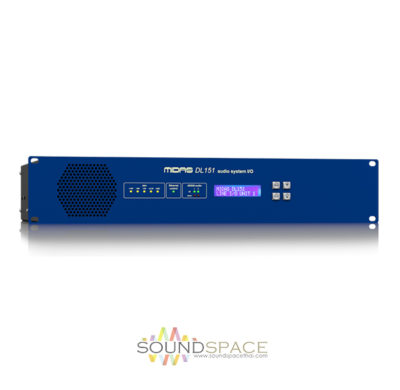

Midas DL151 24-Input Stagebox

I/O อินเตอร์เฟส Stage Box Midas DL151 24-Input Stage Box with 24-MIDAS Microphone Preamplifiers and Dual-Redundant AES50 Networking, Suitable for PRO1, PRO2 Digital Consoles

The DL151 is a twenty-four input stagebox from MIDAS that delivers the company’s legendary sound quality in a cost effective, rugged 19″, 2U rack mount chassis. Equipped with twenty-four MIDAS microphone preamps with switchable 48V phantom power and dual redundant AES50 network ports, the unit is the ideal partner to the PRO1 and PRO2 digital consoles, significantly increasing the network capacity and number of microphone inputs.

Interface controls and feedback are available via the intuitively laid out front panel and the controls and LED indicators provide ease of use and instant status feedback. All primary connections use balanced XLR connectors and the road-ready unit is ideally suited for mounting in an optional standard flight case.

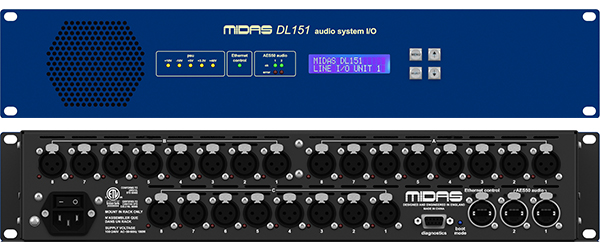

midas_dl151_io_interface_stage-box

Features:

  • 24 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power
  • Remote operation up to 100 m via CAT5/5e cable
  • Selectable 96 kHz or 48 kHz sample rate operation
  • All settings programmable from front panel controls or console
  • PSU status indicator LEDs and configuration LCD display on front panel
  • Supports dual redundant AES50 networks
  • Features Neutrik etherCON* AES50 network ports
  • Rugged 2U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply
  • 3-Year Warranty Program*
  • Designed and engineered in the U.K.

Specifications

General Specifications
Sample rate 48 kHz, 96 kHz
Dynamic range >107 dB unweighted (20 Hz – 20 kHz)
Maximum input level
Mic/Line (Unity Gain) +21 dBu
Mic/Line (-2.5 dB Gain) +24 dBu
CMRR @ 1 kHz
Mic Input (Unity Gain) >60 dB
Mic Input (40 dB Gain) >90 dB
Mic EIN (40 dB Gain) -126 dBu
Frequency Response ±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz)
THD+N (Unity Gain) <0.01%
Crosstalk @ 1 kHz <-90 dB
