ตู้ลำโพง Martin Audio CDD5 Passive Coaxial Loudspeaker 5″
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio CDD5 เป็นลำโพงแบบ 2-Way Passive Coaxial Loudspeaker ขนาดดอกลำโพง LF 5.25 นิ้ว เสียงแหลม HF 0.75 นิ้ว Coaxial Differential Dispersion Technology, ทนกำลังขับ 100 วัตต์ AES, 400 วัตต์ peak, 8Ω nominal impedance
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม….
฿15,480.00
Description
Martin Audio CDD5 2-Way Passive Coaxial Loudspeaker 5″ 100W
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio CDD5 เป็นลำโพงแบบ 2-Way Passive Coaxial Loudspeaker ขนาดดอกลำโพง LF 5.25 นิ้ว เสียงแหลม HF 0.75 นิ้ว Coaxial Differential Dispersion Technology, ทนกำลังขับ 100 วัตต์ AES, 400 วัตต์ peak, 8Ω nominal impedance
The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW.

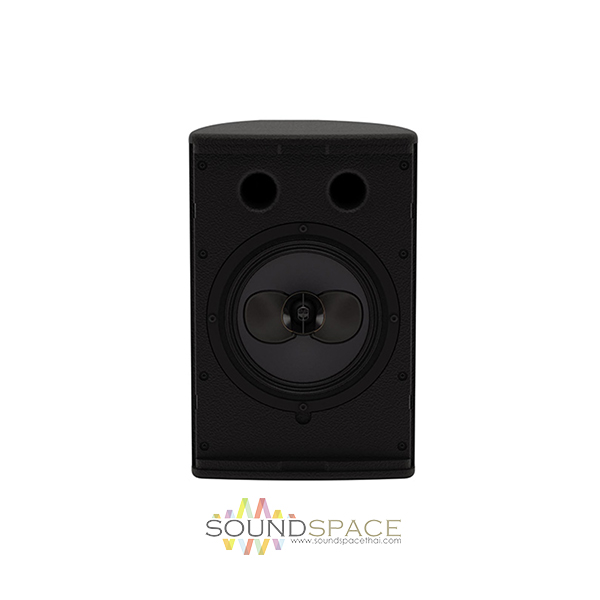

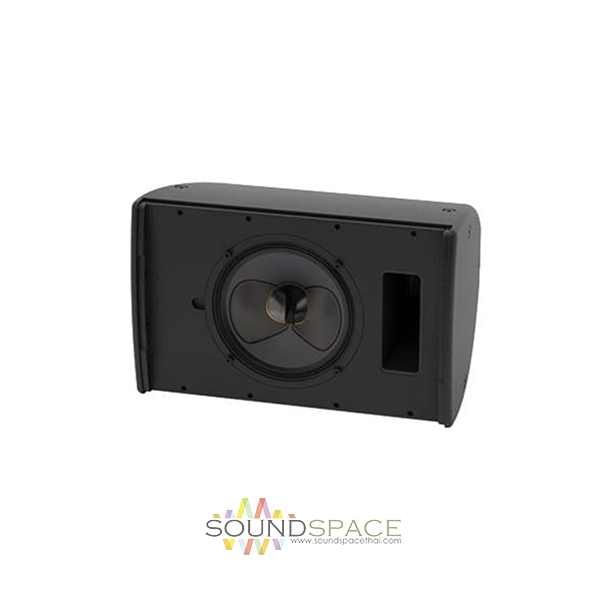

It features a unique, patent protected 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.
Features:
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant ABS moulded enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Black or white standard colour options
- 70V/100V line transformer option
Specifications
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE | 100Hz-20kHz ± 3dB, 10dB @ 70Hz |
| DRIVER | LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system |
| RATED POWER | 100W AES, 400W peak |
| SENSITIVITY | 90dB |
| MAXIMUM SPL | 110dB continuous, 116dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 120˚-90˚ horizontal, 80˚ vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 3 litre, ABS |
| FINISH | Black or white |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 13A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 6 x M5 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins |
| WEIGHT | 3kg (6.6lbs) |
