ลำโพง NEXO PS10 R2 Loudspeaker 10″

ลำโพงขนาด 10นิ้ว รองรับกำลังขับของเครื่องขยายเสียงได้ 500-1250 วัตต์ 8โอหม์ ลำโพงเป็นลำโพงที่ทำมาเฉพาะเจาะจงกำหนดในการติดตั้งโดยแยกเป็นข้างซ้าย ใช้รหัส PS10L และข้างขวาใช้รหัส PS10R

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม



฿72,000.00

สอบถามและสั่งซื้อสินค้า

Description

NEXO PS10 R2 Loudspeaker

ลำโพงขนาด 10นิ้ว รองรับกำลังขับของเครื่องขยายเสียงได้ 500-1250 วัตต์ 8โอหม์

NEXO PS10 R2 A high power system capable of producing 132 dB Peak SPL, the new PS10-R2 Loudspeaker can be safely driven with up to 1250 Watts of amplifier power. Controlled by the new, dedicated PS10 TDController-R2, or the NXAMP Powered Controller, the PS10-R2 achieves high SPLs and wide bandwidth performance, despite being only half the weight and volume of common trapezoidal loudspeaker systems.

Along with the flexible coverage patterns enabled by NEXO’s proprietary constant directivity asymmetrical dispersion horn, the architecture and weight balance of the PS10-R2 are designed to provide both uncompromised PA and stage monitor performance from a single speaker. Left and Right versions of the PS10-R2 have been developed to provide a true stereo image – particularly important for wedge applications.

The 2-way passive 8Ω design uses a single amplifier channel to deliver bi-amped performance, reducing system cost, size and complexity, while the new cabinet design incorporates a pole mount and a new hardware adapter compatible with a vast array of touring and fixed installation accessories.

Features:

  • High-power system (132dB Peak SPL@1m) with 10in LF and 1in HF drivers.
  • Rotatable asymmetrical horn and unique cabinet architecture ensure versatility.
  • User-adaptable for both PA and stage monitoring applications.
  • Two-way passive 8Ω design uses a single amplifier channel for simpler installation and lower cost.
  • Sophisticated control electronics ensure reliable, linear operation.
  • Supported with a full range of mounting and flying accessories.

System Applications

  • Touring, installed PA for clubs, A/V, theatre, broadcast, Houses of Worship, etc. High-quality stage monitoring for cabarets A/V, theatre, broadcast, etc.
  • Fill-in system for use with larger NEXO PS/Alpha systems, or any application needing exceptional side, down and near-field augmentation.

PS10-R2 Loudspeaker Product Features

  • Components
    • 1 x 10″ (25cm) Shielded Neodymium 8Ω driver.
    • HF 1 x 1″ throat driver + Low Distortion Constant Directivity Asymmetrical Dispersion Horn.
  • Height x Width x Depth 515mm x 316mm x 277 mm (20.28″ x 12.44″ x 10.91″).
  • Weight 14 kg (31 lbs).
  • Connectors 2 x NL4MP Speakon 4 pole.
  • Construction Baltic Birch Ply finished with structured black coating.
  • Fittings 2 Metal recessed pockets.
  • Front finish Moulded Dark Grey Metal Grill.
  • Flying Points One plate connecting with external accessories.
  • Stand fittings Built in Steel Stand Fitting, (35mm / 1 3/8″).

Specifications

System Specifications PS10-R2 with PS10 TDController-R2

  • Frequency Response [a] 65 Hz – 20 kHz ±3dB.
  • Usable Range @-6dB [a] 58 Hz – 21 kHz.
  • Sensitivity 1W @ 1m [b] 99 dB SPL Nominal – 97 dB SPL Wideband.
  • Nominal Peak SPL @ 1m [b] 129 to 132 dB Peak.
  • HF Dispersion [c] 50° to 100° Hor. x 55° Vert. Rotatable Horn, 4 positions.
  • Directivity Q & DI [c]
    • Q : 16 Nominal DI : 12 dB Nominal.
    • ( f > 3 kHz )
  • Crossover Frequencies 2 kHz Passive.
  • Nominal Impedance 8Ω
  • Recommended Amplifiers 500 to 1250 W / 8 Ω.

System Operations

  • Electronic Controller The PS10 TDController-R2 is precisely matched to the PS10-R2 & LS600 cabinets and includes sophisticated protection systems. Using PS10-R2 & LS600 without a properly connected PS10 TDController-R2 will result in poor sound quality and can damage the components.
  • Dispersion configuration After dismounting front grill from its fixings, the HF Horn can be rotated in 4 positions for dispersion configuration.
  • Sub-bass The PS10-R2 can be used without optional LS600 Sub-Bass. Active two-way operation with the LS600 is included in the PS10 TDController-R2. One LS600 matches 2 x PS10-R2, additional LS600 may be used for enhanced LF capability.
  • Speaker Cables PS10-R2 are wired 2- & 2+ on Speakon connectors, LS600 on 1- & 1+. Loop through Speakons are present on both. Single identical cables can thus be used to loop through combinations of up to 2 x PS10-R2 & 1 x LS600 in no particular order

Data Sheets

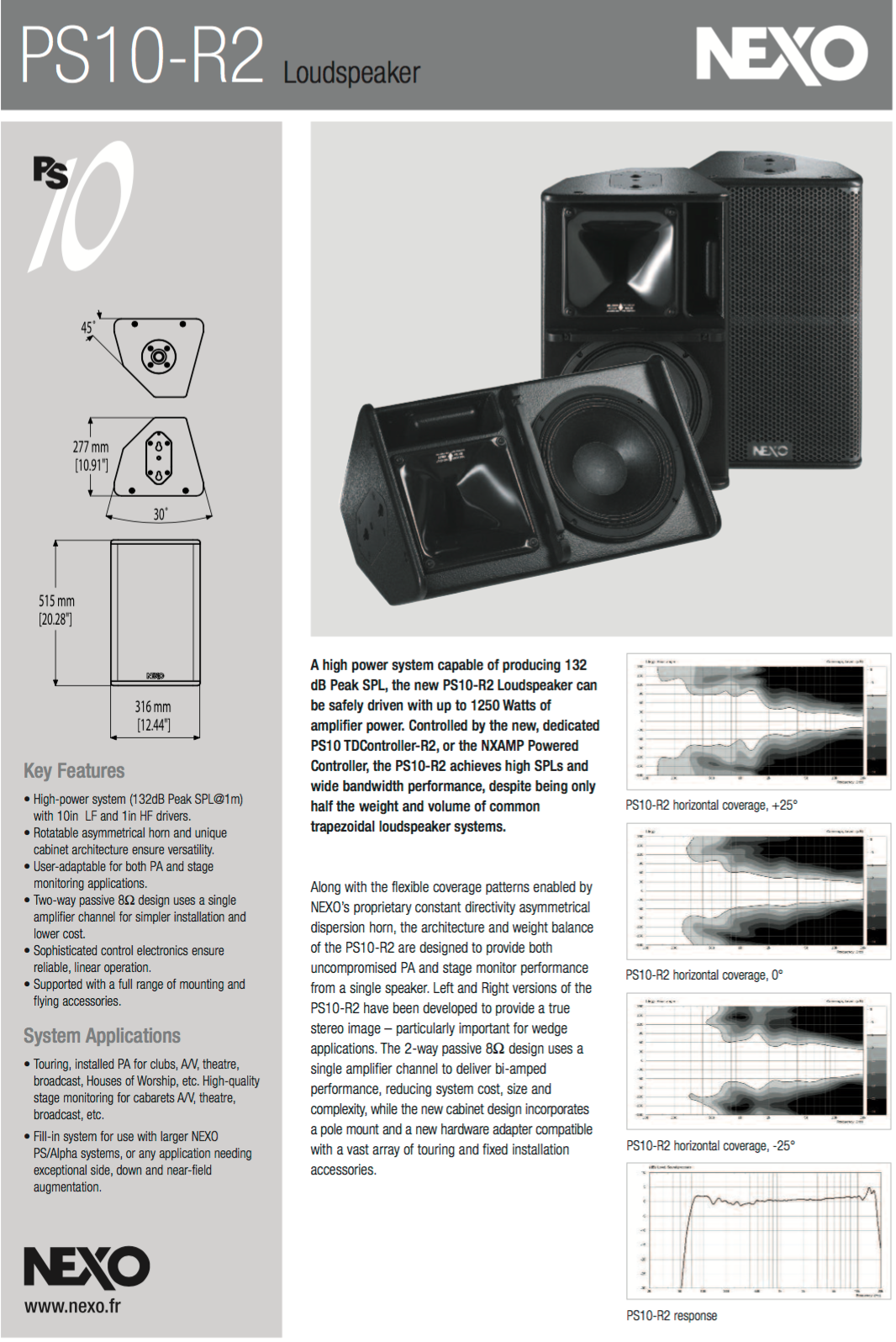

NEXO PS10 R2 LoudspeakerScreen Shot 2016-01-20 at 6.58.13 PM

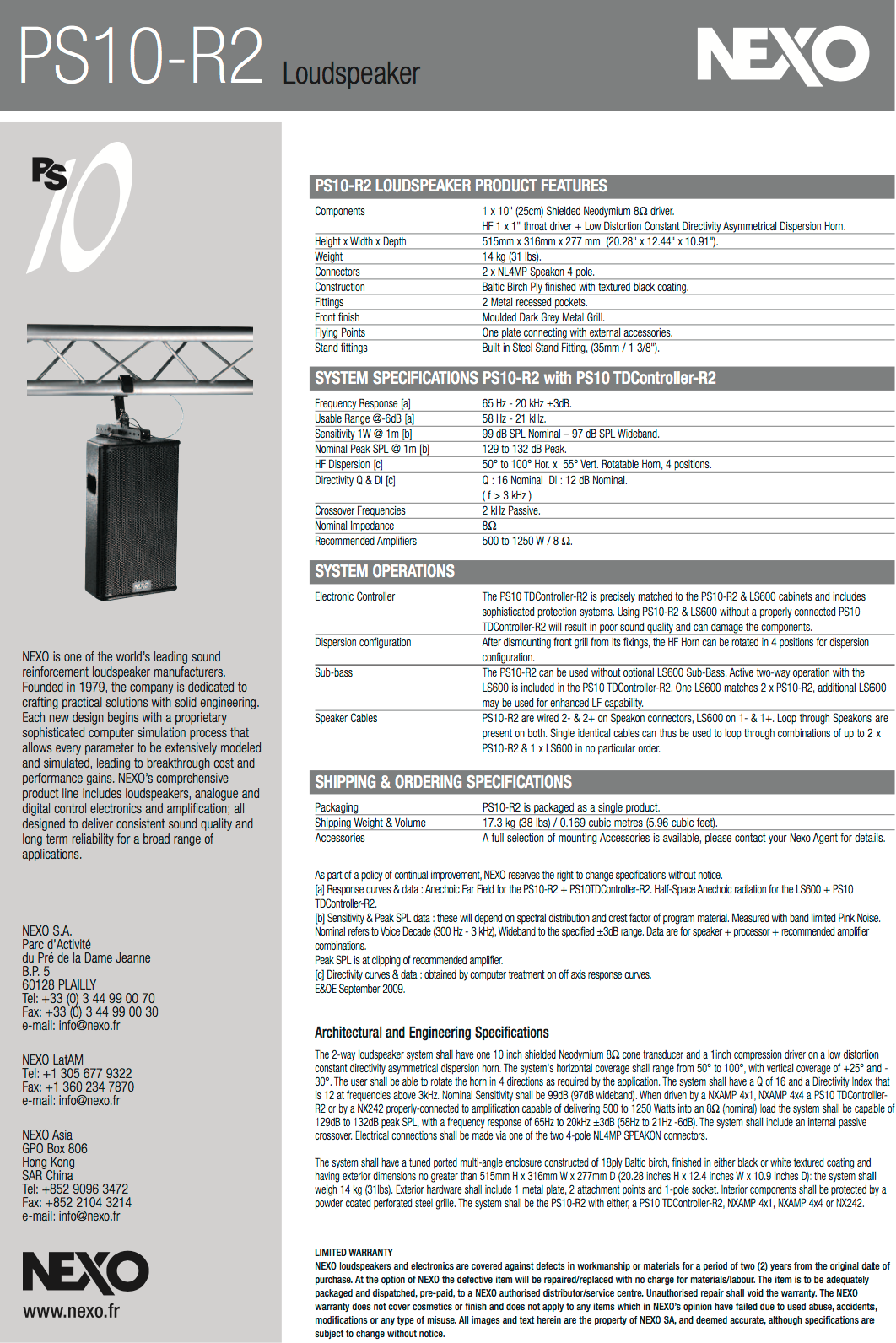

Screen Shot 2016-01-20 at 6.58.36 PM
